USB3.0 Board Level Camera
User Manual
·

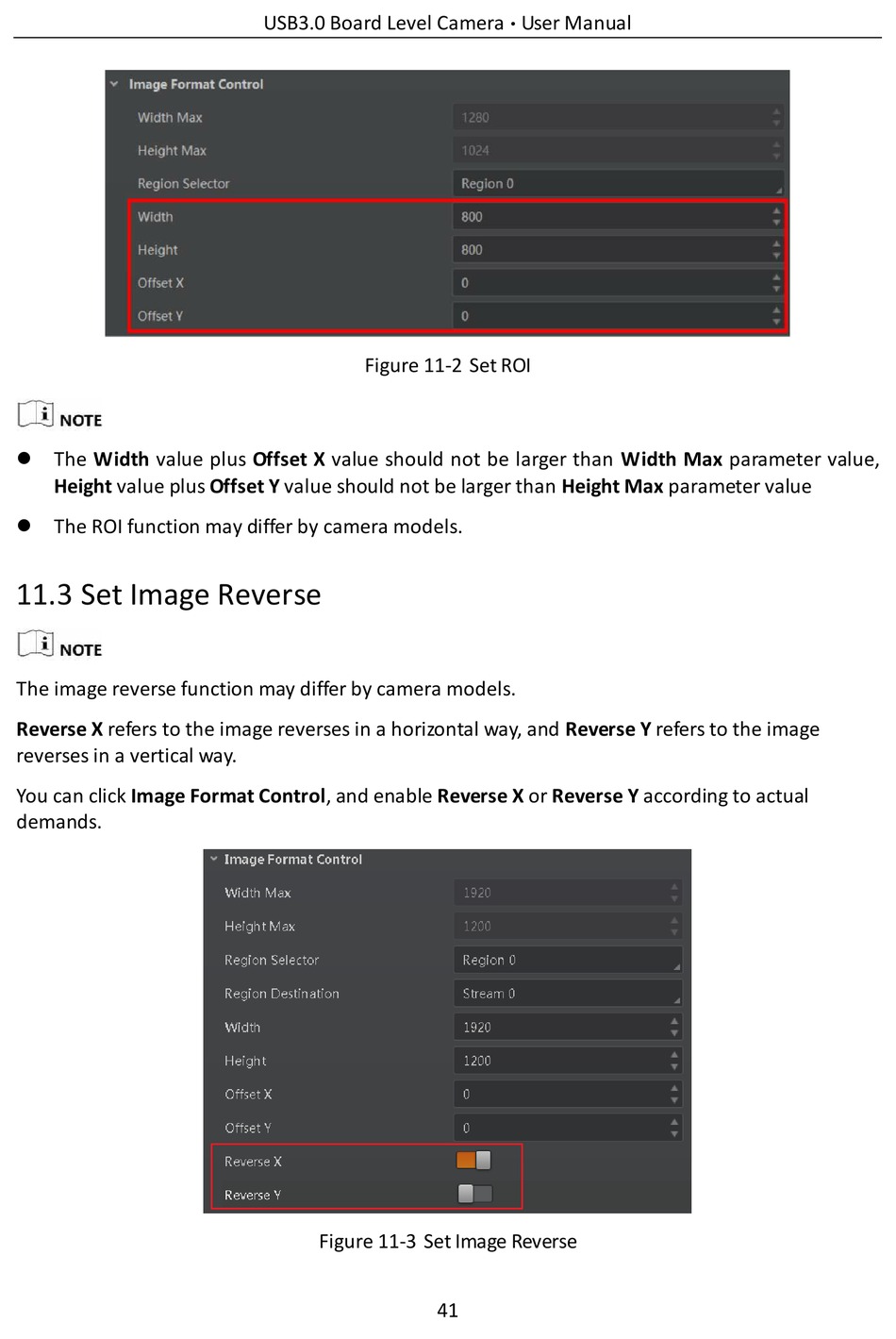

Figure 11-2 Set ROI
The Width value plus Offset X value should not be larger than Width Max parameter value,
Height value plus Offset Y value should not be larger than Height Max parameter value
The ROI function may differ by camera models.
11.3
Set Image Reverse
The image reverse function may differ by camera models.
Reverse X refers to the image reverses in a horizontal way, and Reverse Y refers to the image
reverses in a vertical way.
You can click Image Format Control, and enable Reverse X or Reverse Y according to actual
demands.
Figure 11-3 Set Image Reverse
41
