2.4 Wiring

Follow steps below to wire the device.
Steps:
1. Use 8-pin RJ45 network cable with aviation connector to connect the device to a switch or a
network interface card (NIC).
2. Use 12-pin power and I/O cable to connect the device to a proper power adapter or switching
power supply.
3. If expansion interface is required, connect corresponding cable, as shown below.
X86 Open Platform

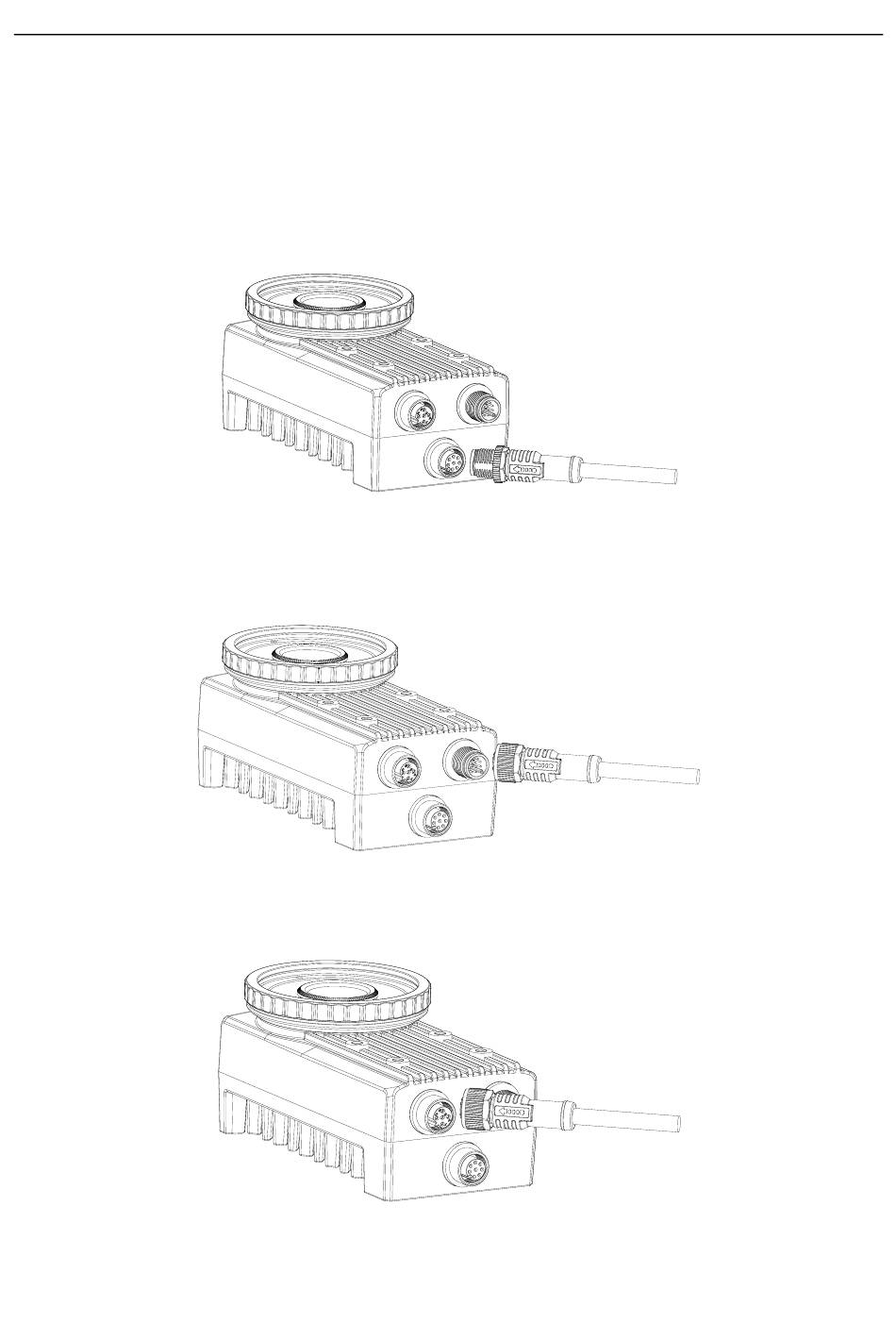

Figure 2-6 Connect Network Cable
Figure 2-7 Connect Power and I/O Cable
Figure 2-8 Connect Expansion Interface Cable
