8.2

Set Overlap Mode

The overlap mode function may differ by camera models.
The camera supports overlap mode function by selecting On as Overlap Mode.
8.3

Set Trigger Mode

The camera has 2 types of trigger mode, including internal trigger mode and external trigger mode.
 Internal trigger mode: The camera acquires images via its internal signals.
 External trigger mode: The camera acquires images via external signals. These signals can be
software signal and hardware signal, including software trigger, hardware trigger, counter
trigger, etc..
Click Acquisition Control > Trigger Mode, and select Off or On as Trigger Mode according to actual
demands.
USB3.0 Board Level Camera

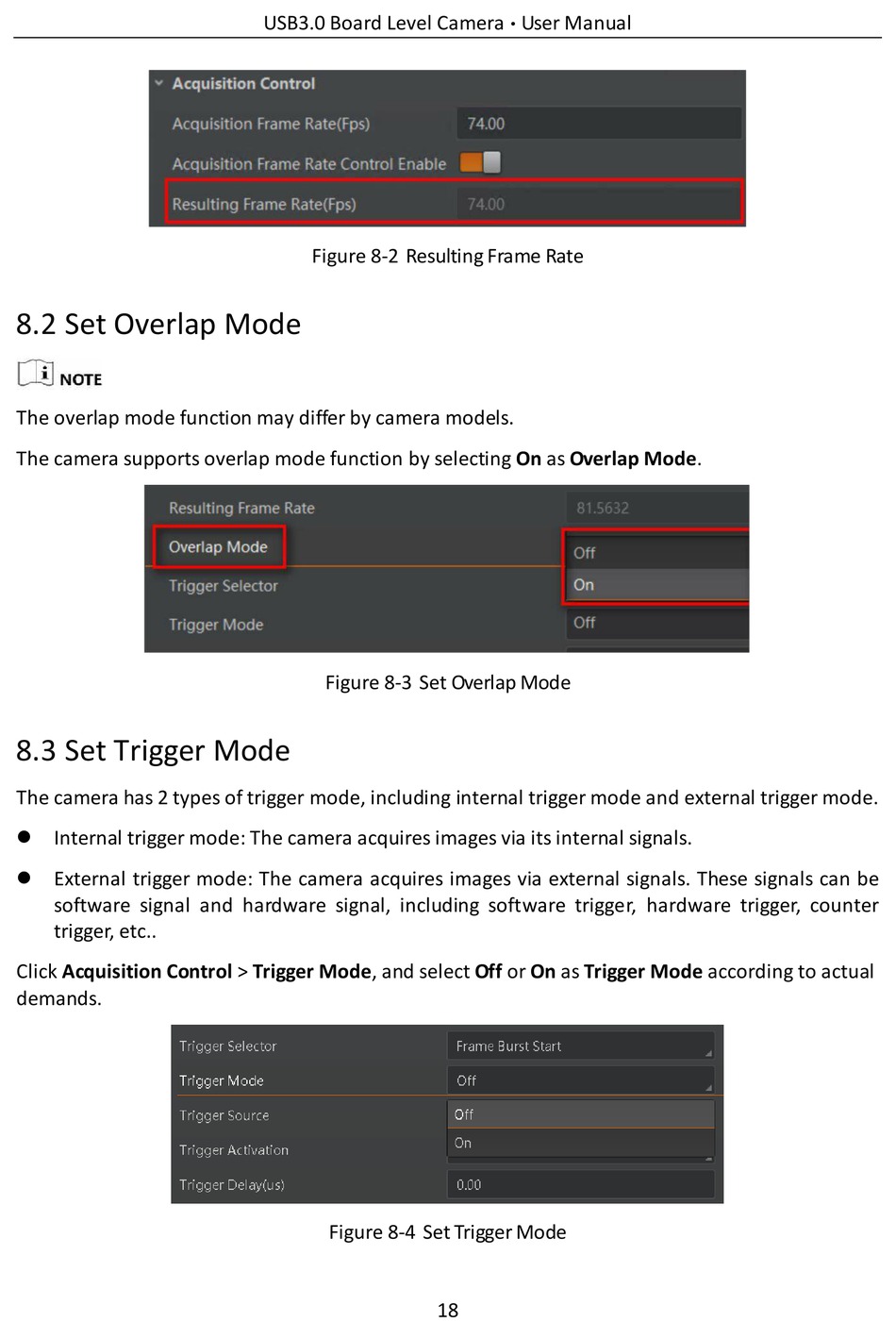

Figure 8-2 Resulting Frame Rate
Figure 8-3 Set Overlap Mode
Figure 8-4 Set Trigger Mode
