5.1 Set Frame Rate

You can set frame rate as shown below.
Steps:
1. Click Image Setting > Acquisition Frame Rate.
2. Enter frame rate according to actual demands.
The Resulting Frame Rate displays the device's real-time frame rate.

5.2 Set Trigger Mode

The device has 2 types of trigger mode, including internal trigger mode and external trigger mode.
The trigger mode principle and parameter setting are shown below.
Trigger Mode Parameter
Internal Trigger and IO
trigger mode Control > Trigger
Mode
External Trigger and IO
trigger mode Control > Trigger
Mode
X86 Open Platform

Chapter 5 Image Acquisition

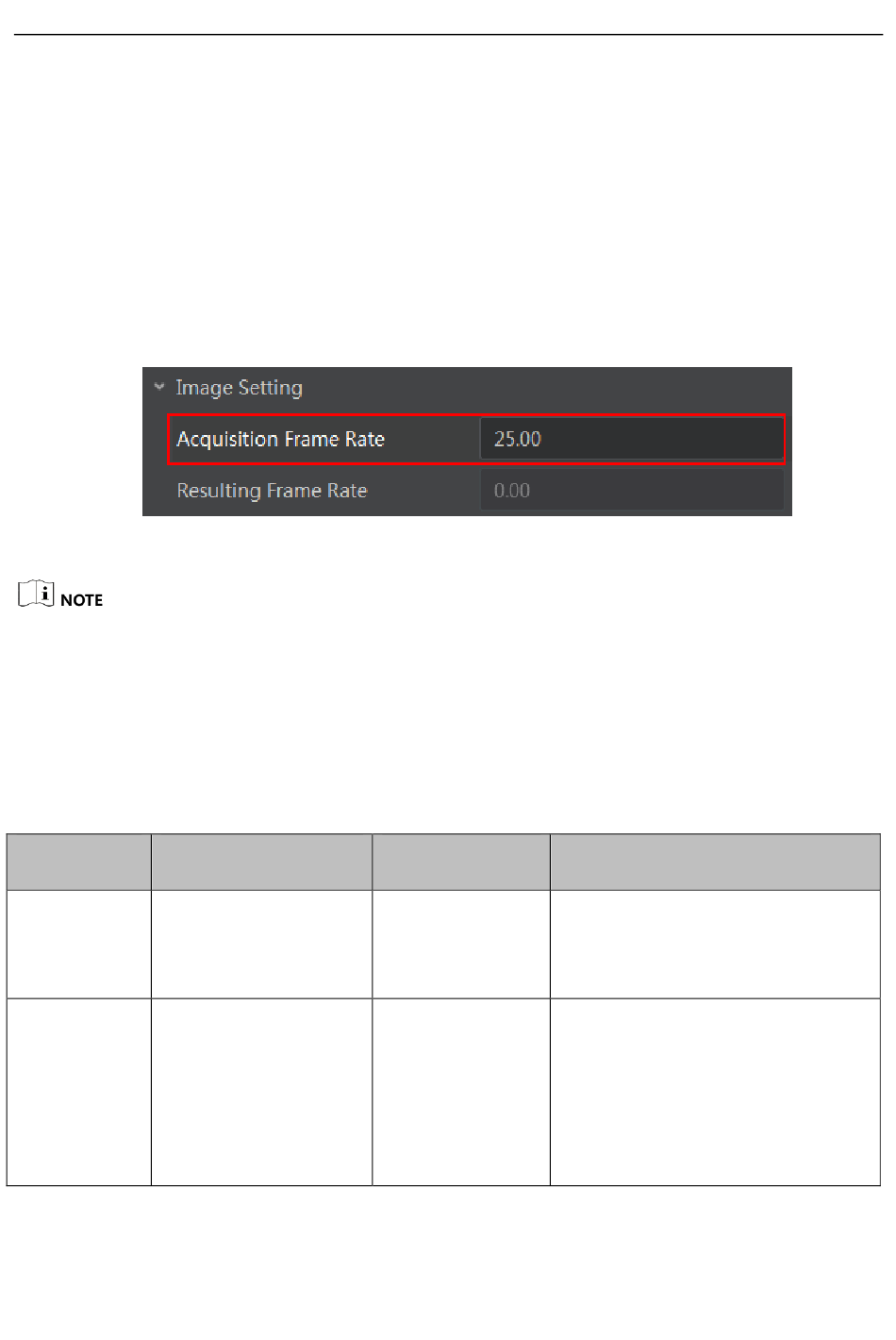

Figure 5-1 Set Frame Rate
Table 5-1 Trigger Mode Principle and Parameter
Parameter Value
Off
On
User Manual
·
Principle
The camera acquires images via its
internal signals.
The camera acquires images via
external signals. These signals can
be software signal and hardware
signal, including software trigger,
hardware trigger, and counter
trigger.
