1.1
Gantry Front Cover Installation
Refer to
1.) Move the gantry to the vertical position and the front cover next to the gantry.
2.) Lift the cover onto the stud and attach the front cover:
3.) Remove the dolly; disassemble it and store it safely away for later use.
4.) Reattach the cables to the cover.
1.2
Gantry Rear Cover Installation
Refer to
1.) Attach the rear cover:
1.3
Gantry Bore Cover Installation

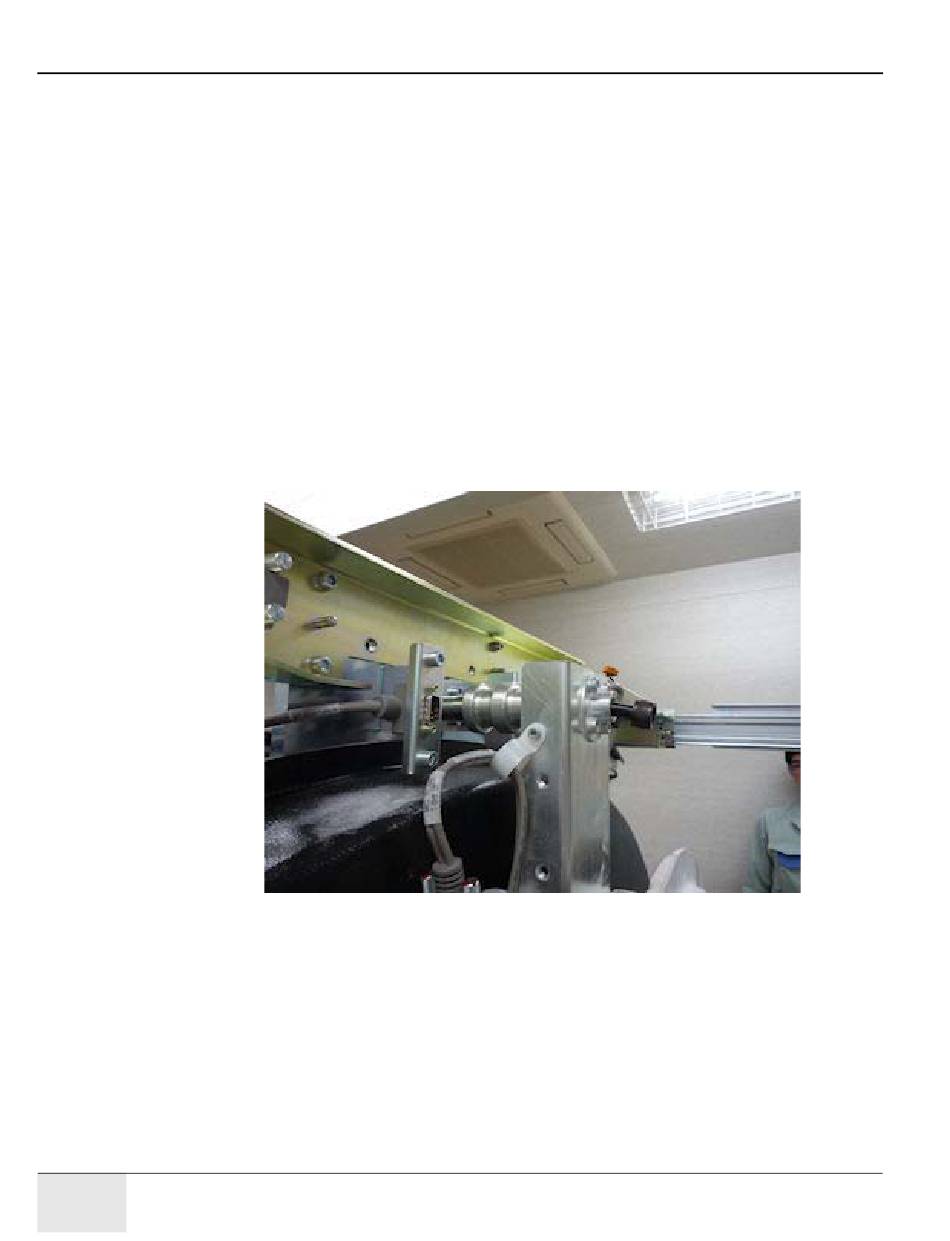

1.) With two persons, lift the bore cover and attach it to the gantry stationary brackets. Insert the
Figure 4-2 Bore Cover Attachment
2.) Tighten 3 screws located at top and two bottom brackets of the cover.
3.) Connect the Breath Navigator I/F cable and MIC REAR T-SW I/F cable to the connectors.
Page 144
6
Appendix A
for the detailed procedure.
Appendix A
for the detailed procedure.
top of the cover bracket to the gantry stationary bracket first.
