8 - 12 C 8: A
HAPTER DVANCED
Firewall Level:
None
Firewall Level:
Maximum
C F
ONFIGURATION EATURES
If you are selecting None as the Firewall Level, proceed to the next
I
section, Firewall Level: None.
If you are selecting Maximum as the Firewall Level, proceed to the
I
section, Firewall Level: Maximum.
If you are selecting Custom as the Firewall Level, proceed to the
I
section, Firewall Level: Custom.
If you don't want to use the firewall protection provided by the packet
filters of the OfficeConnect Gateway, perform the following steps:
1 Select None in the Firewall Level drop-down menu.
2 Click Apply and then click SaveAll on the menubar of the OfficeConnect
Gateway to permanently save the information.
If you want to use the maximum firewall protection level provided by the
packet filters of the OfficeConnect Gateway, perform the following steps:

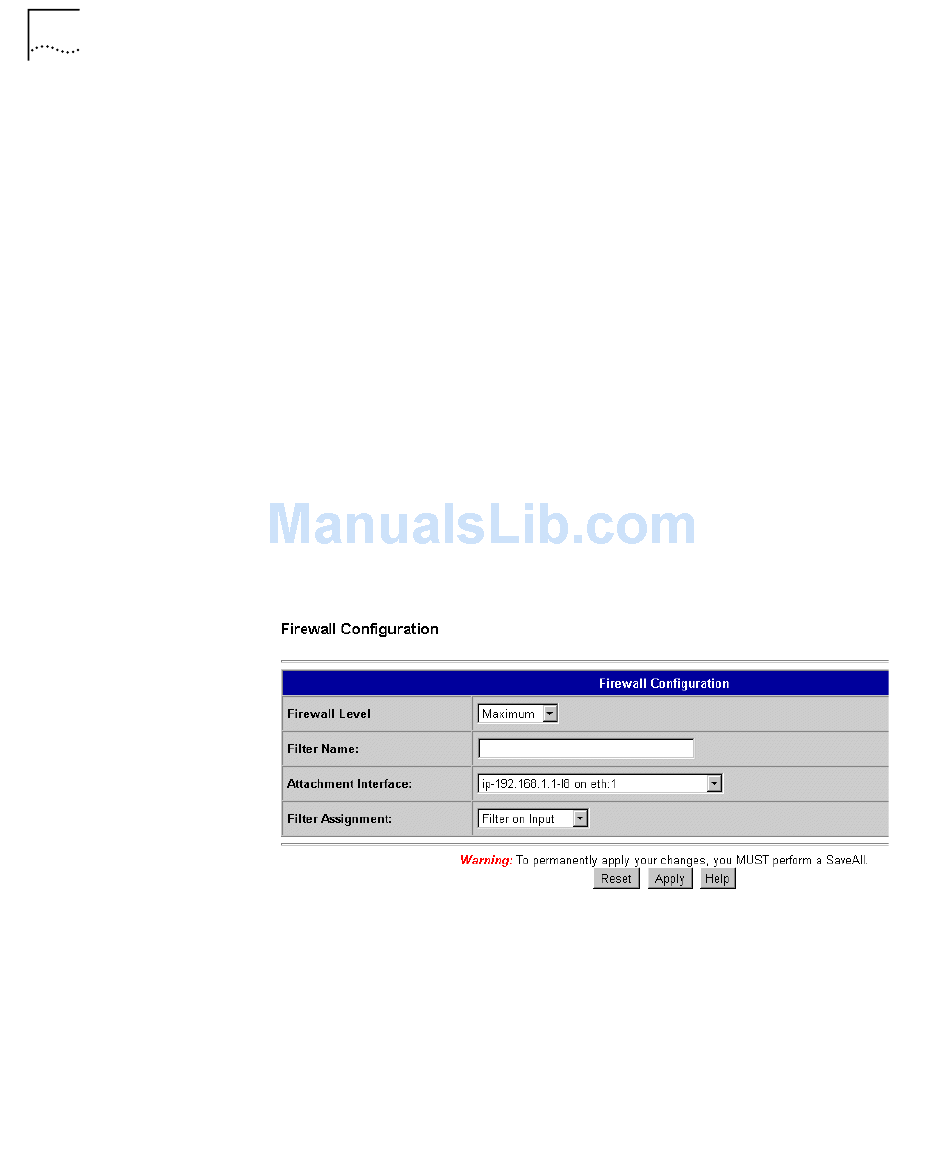

1 Select Maximum in the Firewall Level drop-down menu. The Firewall
Configuration screen dynamically changes as shown in the following
illustration.
2 Enter the name of the firewall filter in the Firewall Filter field.
3 Select the WAN network interface that the firewall filter should be
attached to from the list of configured network interfaces displayed in
the Attachment Interface drop-down menu. You can apply the Firewall
Filter to the LAN and/or WAN sides of the OfficeConnect Gateway.
