3Com OfficeConnect 3CR100A97 User Manual page 69

5 Enter the VPI (Virtual Port Identifier) Number that was provided by your
Service Provider in the VPI Number field.
6 Enter the VCI (Virtual Circuit Identifier) Number that was provided by your
Service Provider in the VCI Number field.
7 Select RIPv2 (unless instructed otherwise by your Service Provider) from
the IP Routing Protocol drop-down menu.

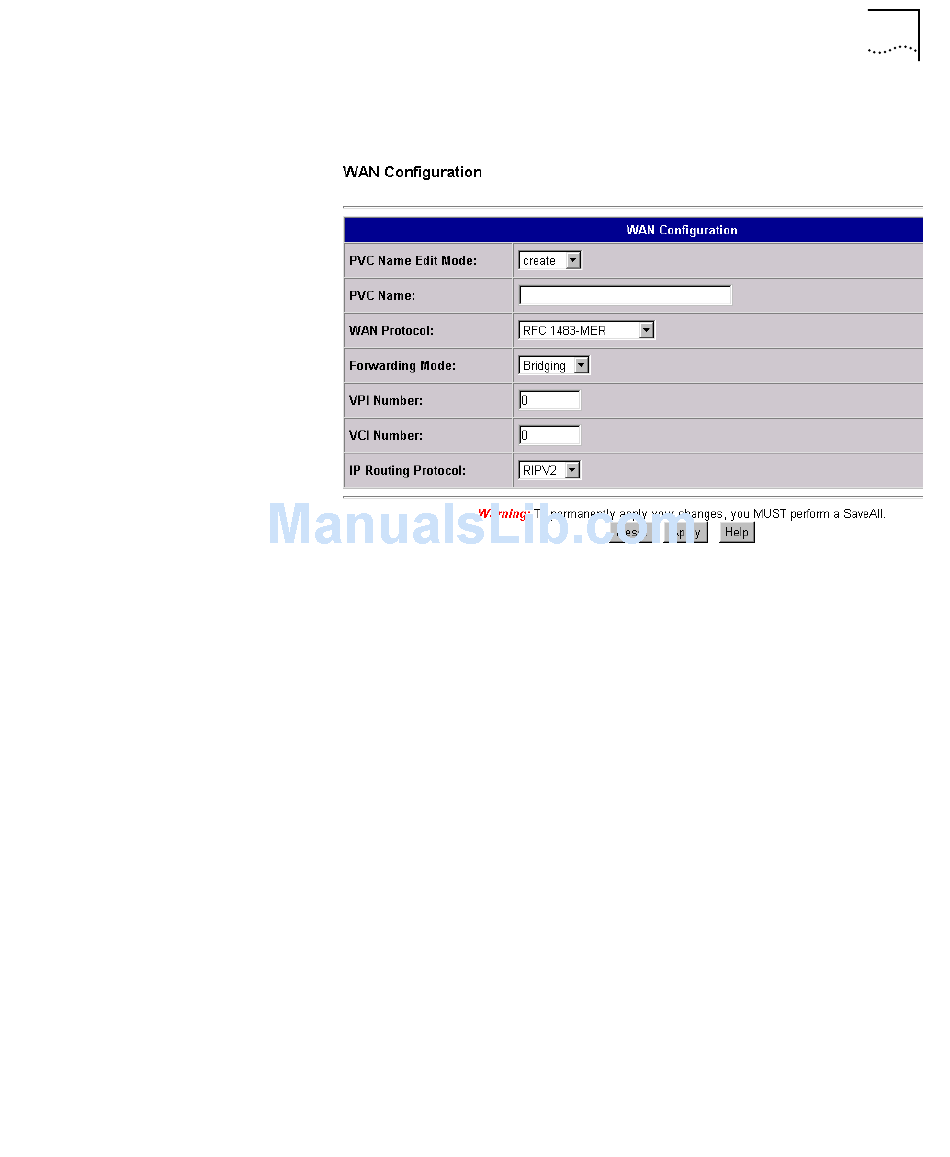

8 Click Apply to save your changes to the WAN Configuration page. The
system will display a status window informing you it is processing the
information you entered on the WAN Configuration page.
If you click Reset, all changes you made on this page will be deleted, and
the fields will be re-set to their default values.
9 Click SaveAll on the upper right portion of the OfficeConnect Gateway
menu bar to save your changes permanently.
The PVC you created is now listed in the PVC Name drop-down list.
Configuring RFC 1483-MER 6 - 11
