The information on this page provides the following information about
your currently configured IP Address Pools:
Name: Name of the IP Address Pool.
I
Address: IP Address of the IP Pool.
I
Size: Number of allocated IP addresses assigned to the Address Pool.
I
In Use: Number of IP Pool Addresses currently being used. These are
I
automatically assigned by the OfficeConnect Gateway when a request
is received by a workstation.
State: Public or Private.
I
Route: Broadcast, Not Broadcast, or Multiple Broadcast.
I
Status: Active (when an IP Pool Address is in use).
I

IP Routes

Click IP Routes to view the IP Routes page.

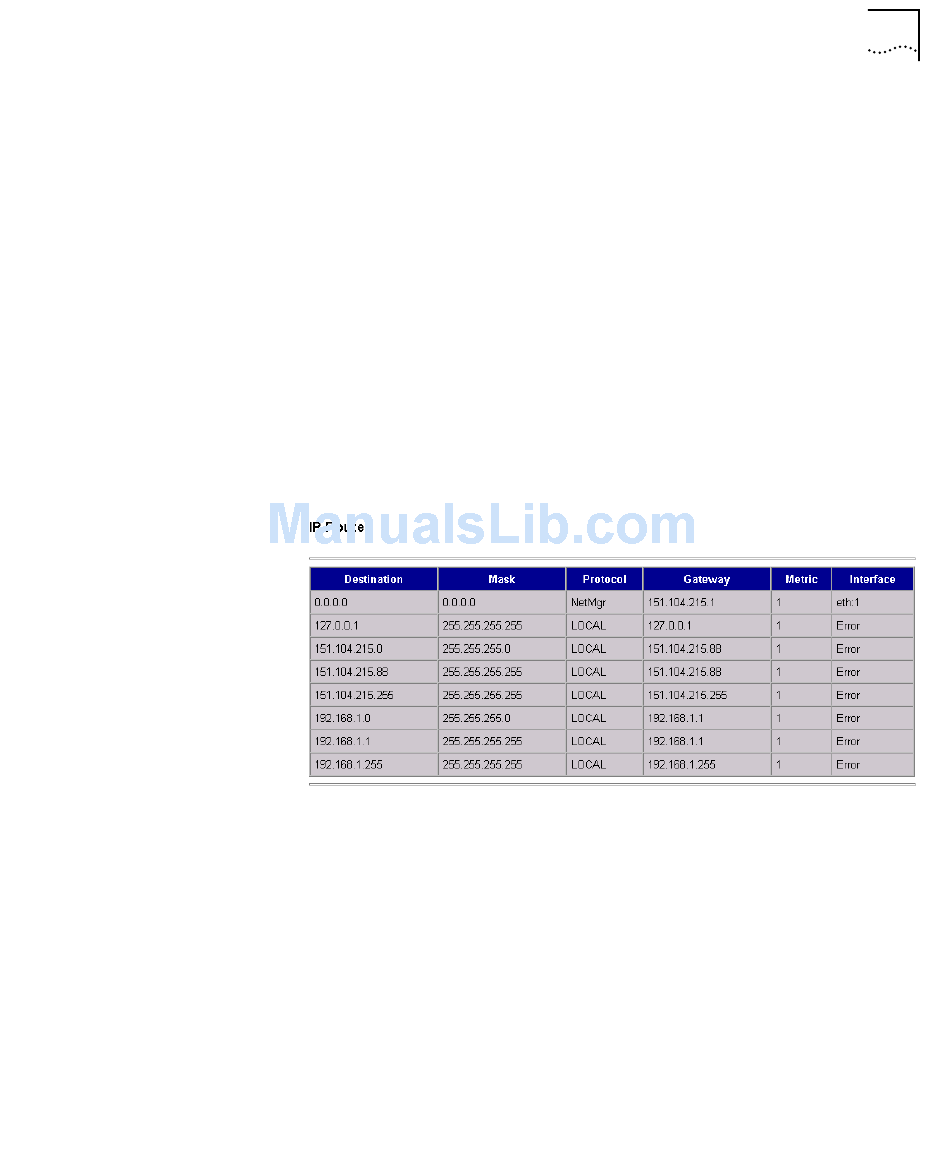

The information on this page provides the following information about
your currently configured IP Routes:
Destination: The Destination IP network address of the network
I
requiring the route.
Mask: The subnet mask IP address of the IP Route.
I
Protocol: Protocol type. (RIP, LOCAL, NetMgr)
I
Gateway: Another name for a router on a network. The IP address of
I
the gateway for the network.
View Network Settings 11 - 5
