3.3 Description of individual modules

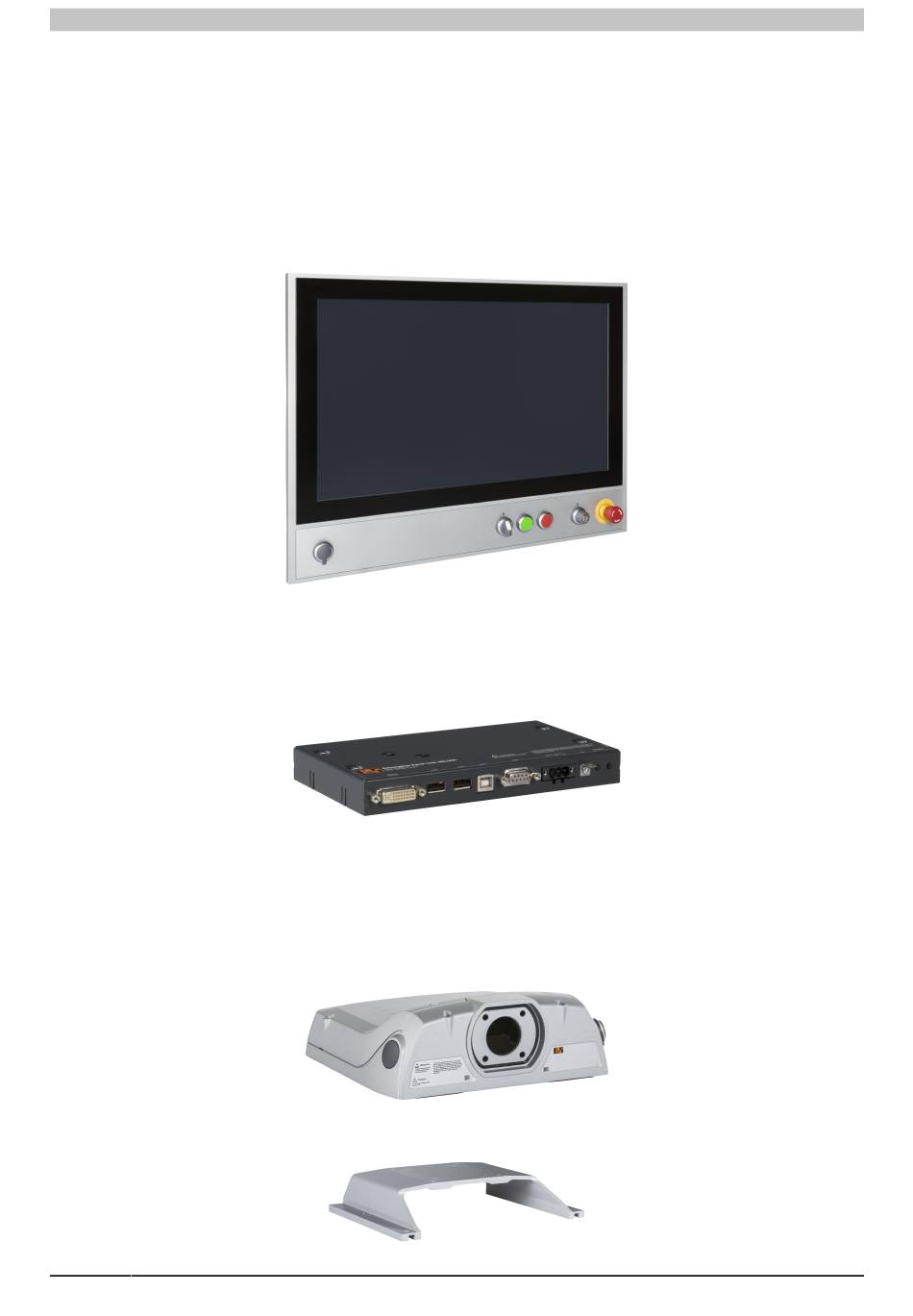

3.3.1 AP5000 panels

The AP5000 series forms the basis for the Automation Panel 5000 and two Panel PC variants: Panel PC 2100 or
Panel PC 2200 swing arm device with Automation Panel 5000. They consist of a display and touch screen. Different
display sizes, touch screen technologies, mounting systems and panels with operating elements are available. The
panels can only be operated as a complete system in combination with a link module (Automation Panel 5000) or
a system unit (PPC2100 swing arm device or PPC2200 with Automation Panel 5000).
Single-touch panels start with model number 5AP5120.xxxx-xxx, multi-touch panels start with 5AP5130.xxxx-xxx
and multi-touch panels with an expansion option start with model number 5AP5230.xxxx-xxx.

3.3.2 Link modules

Link modules have various graphics interfaces and connections. An Automation Panel is put together by installing
a link module onto a panel.
A link module cannot be operated without a panel.

3.3.3 Mounting units

Mounting units are installed on the back of the panel. They serve to protect the installed link module / system unit,
enabling IP65, IP54, IP20 or IP10 protection for the complete system depending on its variant.
The flange is installed on swing arm mounting unit 5ACCMA00.000x-000. Due to the symmetrical design of the
back of the panel, it is possible to install the mounting unit in 2 directions. If a flange is selected for mounting, flange
output is possible towards the top or bottom.
The VESA bracket is installed on VESA mounting unit 5ACCMA01.0100-000. If a VESA bracket is selected for
mounting, VESA 100 or VESA 75 installation is possible.
