Speed-sensor signals are acquired through the quadrature peripheral of the
microcontroller.
Protection
Encoder inputs are protected against short circuits to +B and -B and have ESD
suppressor to -B for ESD protection.

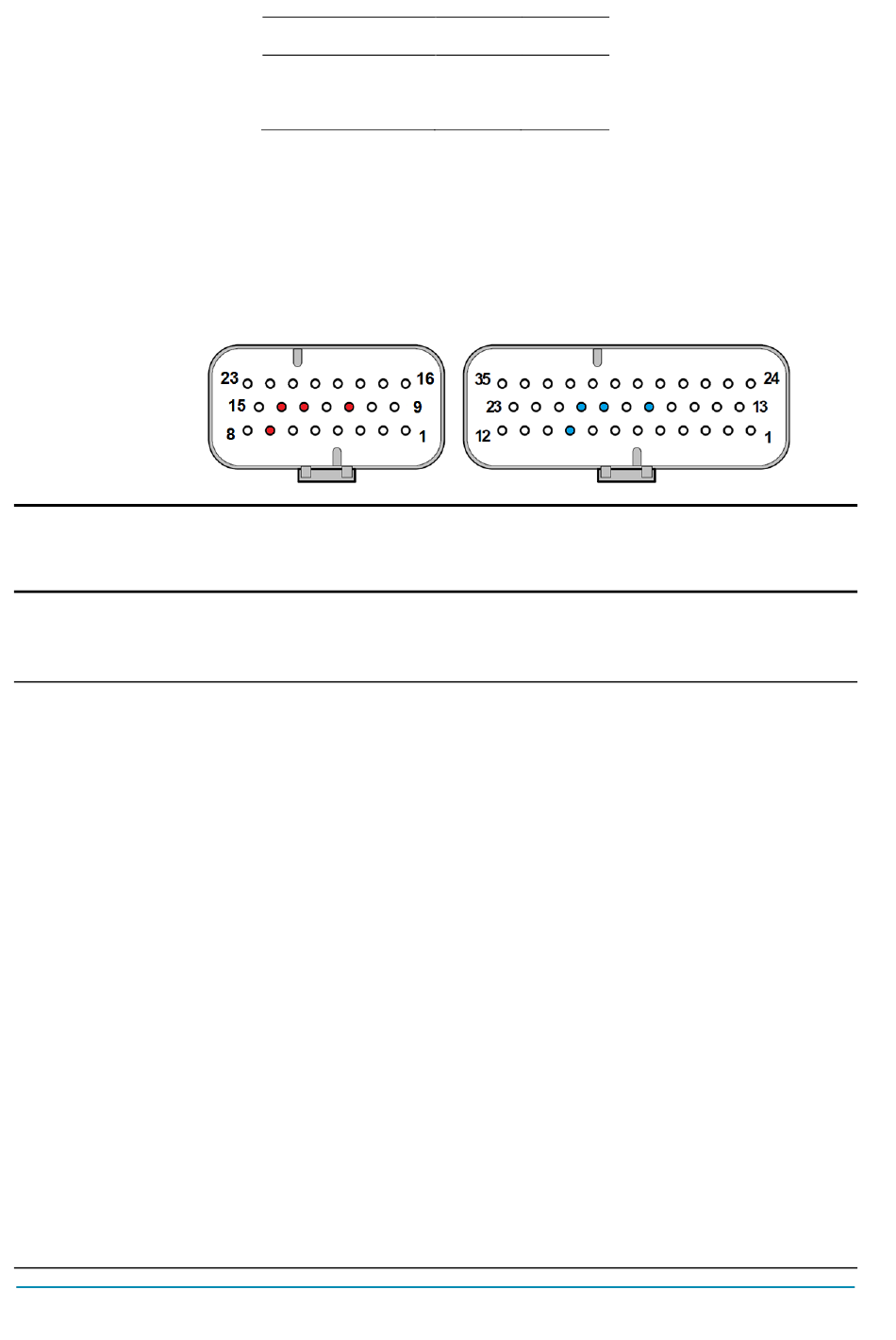

Connector position
It is important to verify the wiring by ensuring that encoder signals are not
disturbed by motor currents or by electric motor brake.
For more details about encoder installation see also paragraph 5.2.6.
The encoder resolution, the motor pole pairs and other pieces of information are
specified in the Zapi Console by means of an head line like the following:
Where:
A2: DUALACE2 NEW GENERATION.
M: Master μC (S: Supervisor μC).
T: Traction controller (P: pump controller).
2: Motor poles pair number.
B: 64 pulses/rev encoder.
2: Motor control generation.
ZP1.21: Firmware version.
The encoder resolution is encoded in the last letter of the first batch as:
Code:
Pulses/rev: 32
Code:
Pulses/rev: 1024
Encoder resolution can be changed through the dedicated parameters. See
paragraph 8.2.7.
Page 42/169
Supply Voltage
Logic low
Logic high
Standard
A7, A11, A13, A14
A2MT2B
2
ZP1.21
A
B
64
I
K
48
25, 124
AFNZPxxx – DUALACE2 NEW GENERATION – User Manual
5 V
12 V
1.5 V
3.8 V
3.5 V
6.1 V
A9, A17, A19, A20
C
D
G
80
128
256
X
Premium
H
512
