9.5 Acceleration time
The ACCELER. DELAY parameter allows to define the acceleration rate
depending on the speed set-point variation and on ACCEL MODULATION.
-
-
AFNZPxxx– DUALACE2 NEW GENERATION – User Manual
ACCEL MODULATION = OFF
The acceleration time results:
ACCEL MODULATION = ON
Acceleration time is evaluated differently by software depending on the
set-point variation.
Fast response:
Set-point step < 100 Hz
The acceleration time results:
Modulation (grey area):
Set-point step > 8 Hz
Set-point step <= 100 Hz
The acceleration rate is re-scaled so that the acceleration time results
equal to ACCELER. DELAY.
Wide variation:
Set-point step > 100 Hz
The acceleration time results:
Speed [Hz]
100
8
ACCELER. DELAY ∙
ACCELER. DELAY ∙
ACCELER. DELAY ∙
Acceleration
modulation
Time [s]

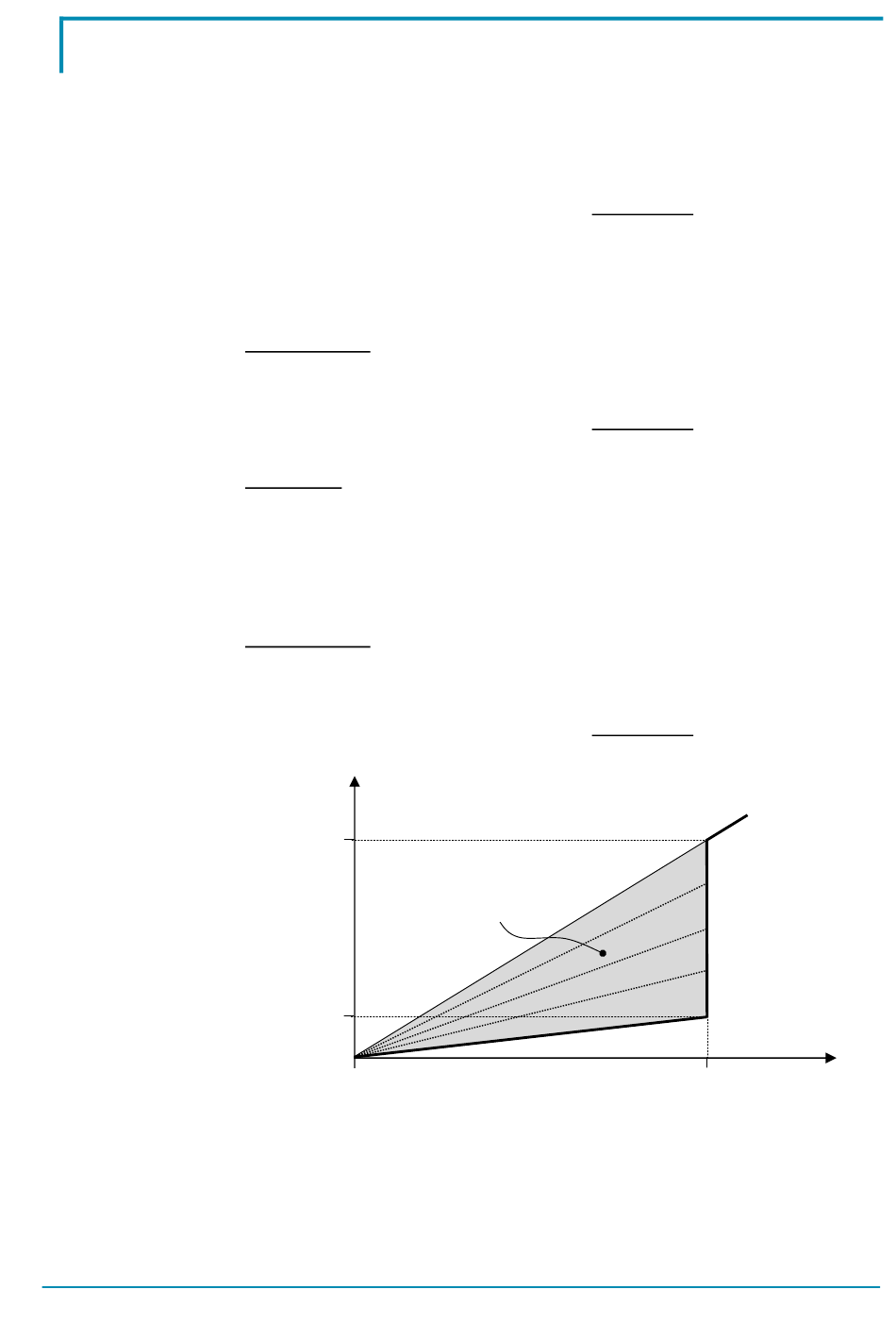

Speed evolution during acceleration.
Set−point step
100 Hz
Set−point step
100 Hz
Set−point step
100 Hz
ACCELER. DELAY
Page 109/169
