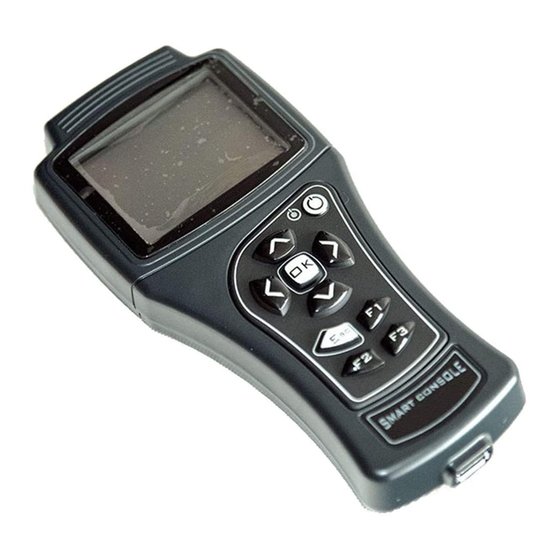

Zapi SMART CONSOLE Instructions Manual
Introduction for v8
Hide thumbs
Also See for SMART CONSOLE:
- User manual (50 pages) ,
- Manual (11 pages) ,
- Instructions manual (7 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Zapi SMART CONSOLE
Summary of Contents for Zapi SMART CONSOLE
- Page 1 ZAPI SMART CONSOLE Introduction for V8...
- Page 2 Location of CAN Connection...

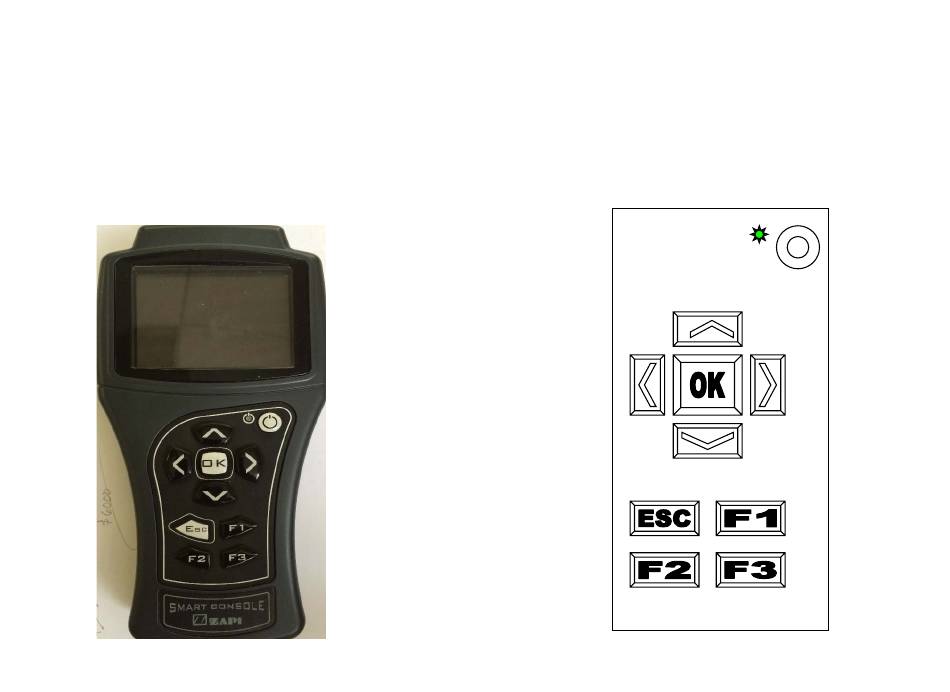

- Page 3 Traction VACC Turn on ZAPI Handset Push and hold the power button for 3s The Display will show: Cons AFG ZP021* Press button until CAN CONSOLE shows on the display Cons AFG ZP021* The Display will show : CAN CONSOLE...
- Page 4 CANCONSOLE The Display will show: SELECT NODE Push , or To select Node 2 SELECT NODE The Display will show: NODE 2 Press OK to go into the Traction controller ADXT2BC10BEP0.07 The Display will show: 24V 240A 0H Press OK to go into the Main Menu The Display will show: Main Menu...
- Page 5 Press button until PROGRAM VACC shows on the display MAIN MENU The Display will show: PROGRAM VACC Press OK to go into the PROGRAM VACC function The Display will show the accelerator VACC SETTING minimum and maximum voltage values. CURRENT VALUE Both directions will be shown Press OK to clear these values.
- Page 6 Push the direction lever forward , slowly depress the pedal accelerator to its maximum value. Do not release the pedal.The new minimum and maximum voltages will be displayed on the Console. When finished , press ESC The Display will ask : APPLY APPLY CHANGES? CHANGES ? YES= OK...
- Page 7 The Display will ask : APPLY APPLY CHANGES? CHANGES ? YES= OK NO=ESC Press OK for yes When finished, the Console shows : Main Menu Press and hold power button for 3s to turn off the Console...
-
Page 8: Steering Calibration
Steering Calibration • PENDING...
