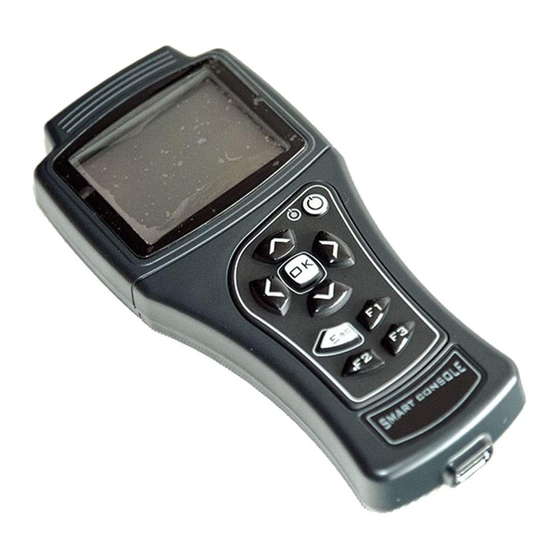

Zapi SMART CONSOLE Instructions Manual
Introduction for d40
Hide thumbs
Also See for SMART CONSOLE:
- User manual (50 pages) ,
- Manual (11 pages) ,
- Instructions manual (8 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Zapi SMART CONSOLE
Summary of Contents for Zapi SMART CONSOLE
- Page 1 ZAPI SMART CONSOLE Introduction for D40...

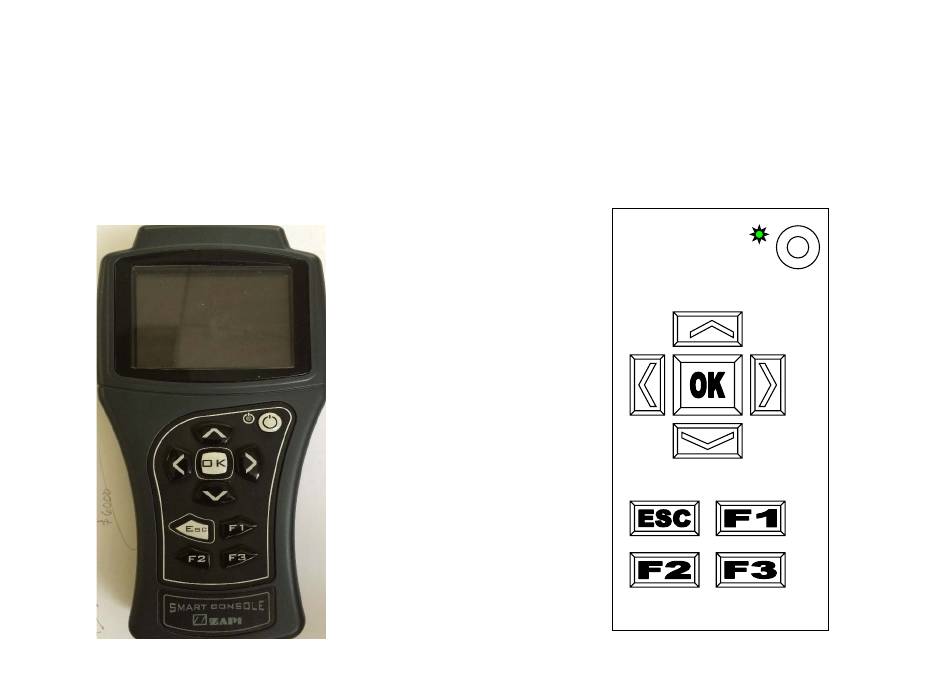

- Page 2 Location of Controller Socket...
- Page 3 Traction VACC Key on the truck, connect the flash Cons AFG ZP021* connecting line. The Display will show: Press button until RS232 CONSOLE shows on the display Cons AFG ZP021* The Display will show : RS232 CONSOLE Press OK to go into the Traction Menu ACOT2SE4B EP247D The Display will show:...
- Page 4 Press OK to go into the Main Menu The Display will show: Main Menu Press button until PROGRAM VACC shows on the display MAIN MENU The Display will show: PROGRAM VACC Press OK to go into the PROGRAM VACC function The Display will show the minimum and VACC SETTING maximum throttle voltage values.
- Page 5 The display will show: FORWARD x.xV x.xV BACKWARD x.xV x.xV Slowly depress the accelerator forward to its maximum value. The new minimum and maximum voltages will be displayed on the Console plus an arrow indicating the direction. Repeat step for reverse direction When finished , press ESC The Display will ask : APPLY APPLY CHANGES?
- Page 6 When finished, the Console shows : Main Menu Press and hold power button for 3s to turn off the Console...
