For critical functions, when good diagnostics coverage is necessary, it is
recommended to use two digital inputs for plausibility check, for example
to use both normally open and normally closed contacts.
Protection
Each digital input has a 22 nF capacitor to -B for ESD protection.
Circuit
Input impedance to GND of active high digital inputs in standard Zapi
configurations are listed below. Custom hardware may feature different
impedance values.
Inverter voltage
Input impedance
(Active high)
Digital inputs on A1, A2,
activated when closed to -B. Their behavior can be changed by special HW
configuration, as to be activated when closed to +B.

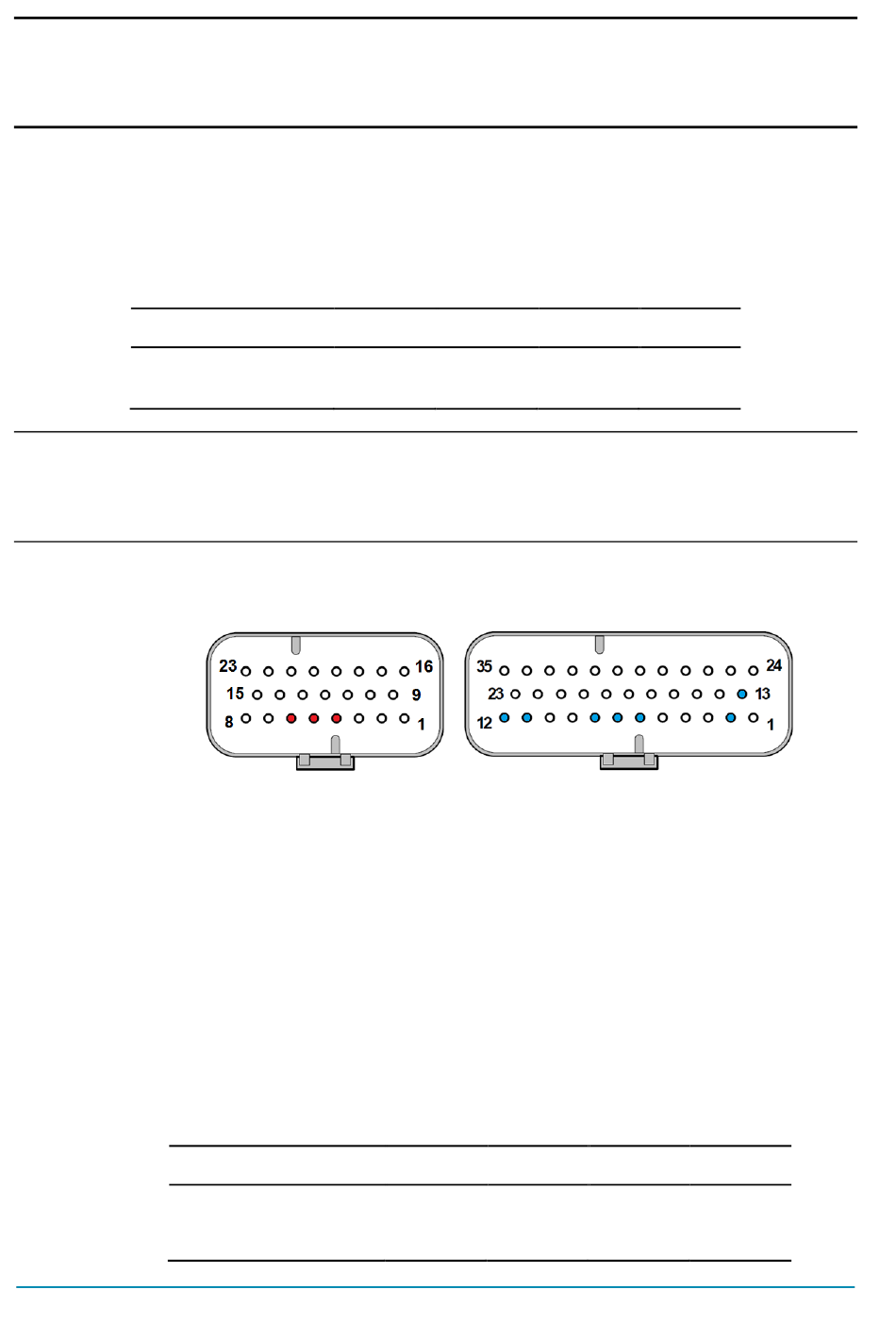

Connector position
Microswitches
It is suggested that microswitches have a contact resistance lower than 0.1 Ω
-
and a leakage current lower than 500 µA.
-
In full-load condition, the voltage between the key-switch contacts must be
lower than 0.1 V.
-
If the microswitches to be adopted have different specifications, it is
suggested to discuss them with Zapi technicians prior to employ them.
4.4.3 Analog inputs
Analog inputs are for functions such as accelerator or brake references and they
are acquired through a 10-bit analog-to-digital converter (resolution is given by
voltage excursion over 1024 levels).
Circuit
Input impedance and maximum frequency for analog inputs in standard Zapi
configurations are listed below. Custom hardware may feature different values.
Inverter voltage
Input impedance
Maximum frequency
Page 40/169
24 V
3.8 kΩ
A8
(A6),
A11
Standard
A4, A5, A6
24 V
44 kΩ
145 Hz
AFNZPxxx – DUALACE2 NEW GENERATION – User Manual
36/48 V
72/80 V
9 kΩ
20 kΩ
and
A12
are normally configured to be
Premium
A1, A2, A6, A7, A8, A11, A12, A13
36/48 V
72/80 V
94 kΩ
240 kΩ
68 Hz
27 Hz
96 V
27.6 kΩ
96 V
300 kΩ
21 Hz
