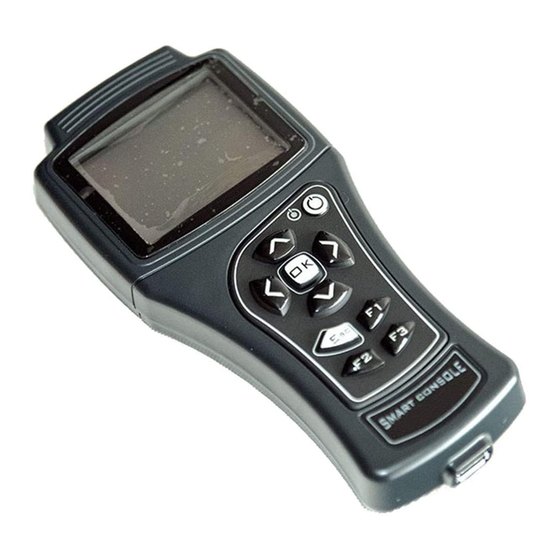

ZAPI SMART CONSOLE
Introduction for CB22

Advertisement

loading
Need help?

Need help?

Do you have a question about the SMART CONSOLE and is the answer not in the manual?

Questions and answers

Related Manuals for Zapi SMART CONSOLE

Summary of Contents for Zapi SMART CONSOLE

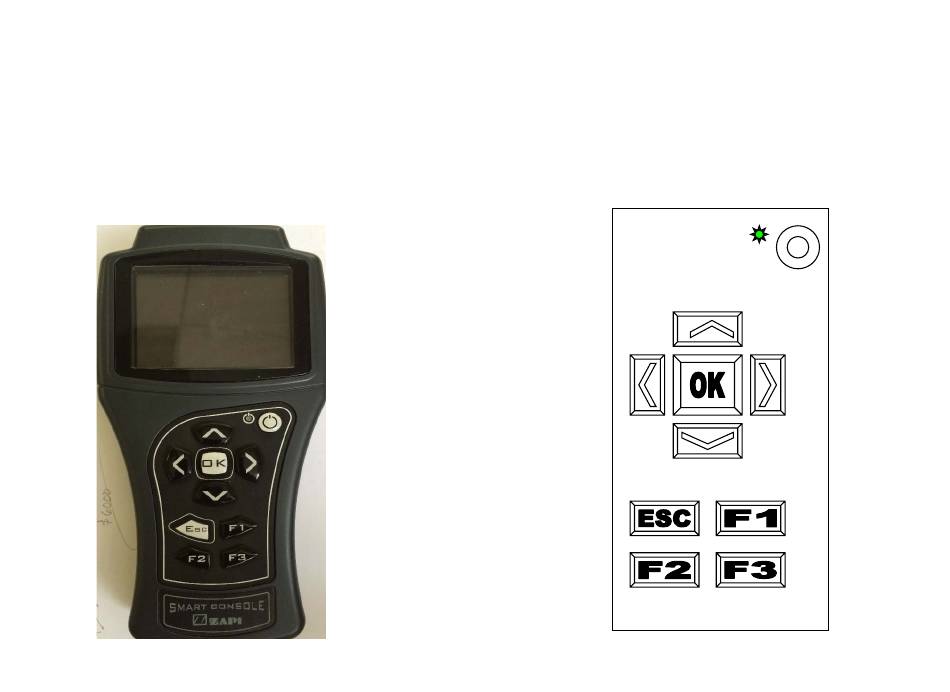

  • Page 1 ZAPI SMART CONSOLE Introduction for CB22...
  • Page 2 Traction VACC Key on the truck, connect the flash Cons AFG ZP021* connecting line. The Display will show: Press button until RS232 CONSOLE shows on the display Cons AFG ZP021* The Display will show : RS232 CONSOLE Press OK to go into the Traction controller ADXT2S C22EP006 The Display will show:...
  • Page 3 Press OK to go into the Main Menu The Display will show: Main Menu Press button until PROGRAM VACC shows on the display MAIN MENU The Display will show: PROGRAM VACC Press OK to go into the PROGRAM VACC function The Display will show the minimum and VACC SETTING maximum values of throttle voltage.
  • Page 4 Press OK to clear these values. Display will show 0.0 Select Forward Direction FORWARD x.xV x.xV Slowly depress the accelerator to its maximum value. The new minimum and maximum voltages will be displayed on the Console plus an arrow indicating the direction.
  • Page 5 The Display will ask : APPLY APPLY CHANGES? CHANGES ? YES= OK NO=ESC Press OK for yes When finished, the Console shows : Main Menu Press and hold power button 3s to turn off the Console...
