Communication extension card
4. Communication ports
Standard RJ45 ports are used in EtherCAT communication. The communication card provides

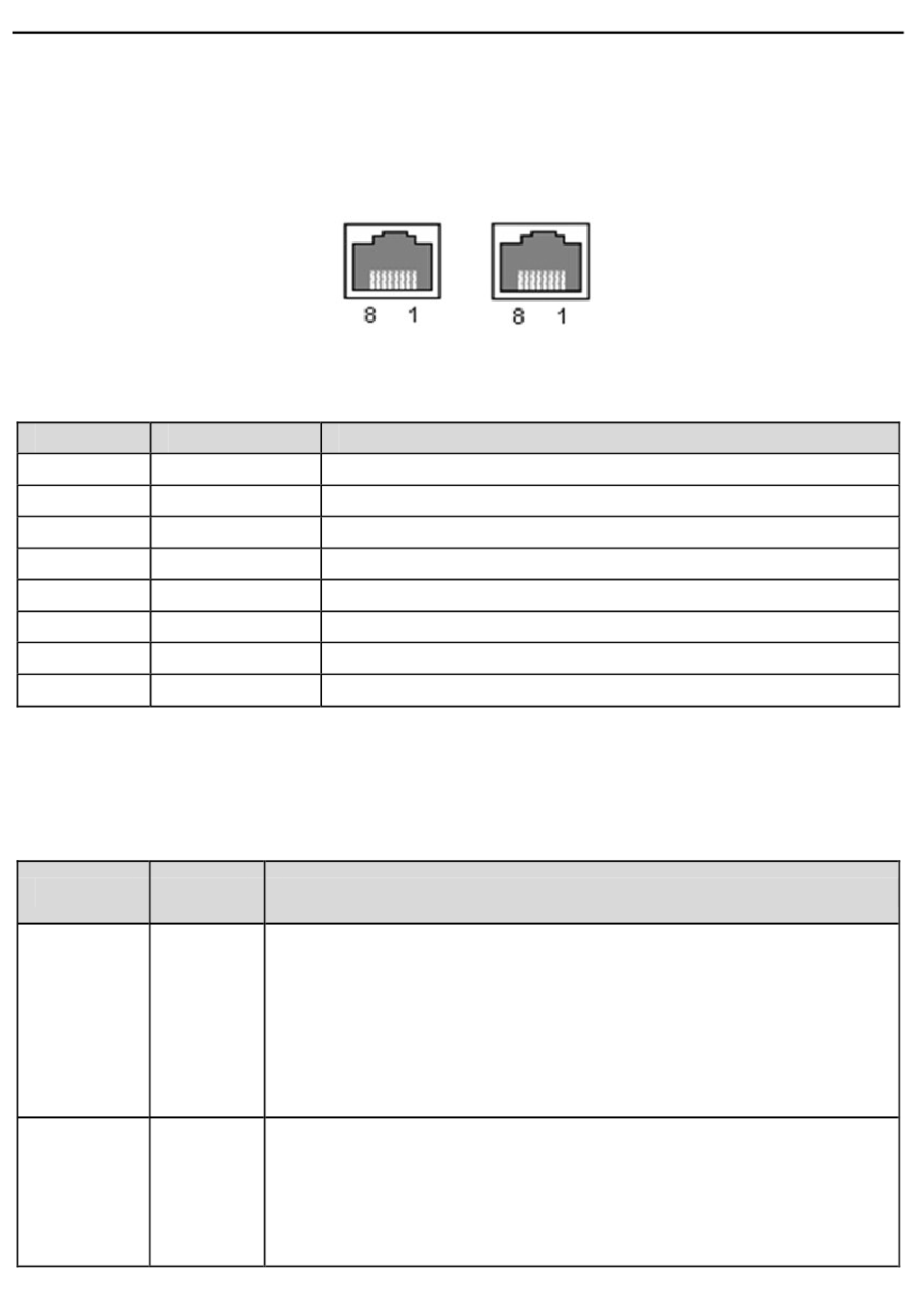

two RJ45 ports with transmission direction defined. Figure 6-1 shows the ports. IN (indicating
input) and OUT (indicating ouput) are EtherCAT wiring network ports. Table 6-2 describes the
port pins.
Pin
1
2
3
4
5
6
7
8
5. State indicators
The EtherCAT communication card provides four LED indicators and four net port indicators to
indicate its states. Table 6-3 describes the state indicators.
Item Color
RUN Green
ALM Red
Figure 6-1 RJ45 ports
Table 6-2 RJ45 port pins
Name
TX+
TX-
RX+
n/c
n/c
RX-
n/c
n/c
Table 6-3 State indicatorsTable 6-3
The green indicator indicates EtherCAT running state.
Init state: It remains off.
Pre-OP state: It blinks off 0.2s and on 0.2s.
Safe-OP state: It blinks off 1s and on 0.2s.
OP state: It remains on.
The red indicator indicates EtherCAT fault state.
No fault: It remains off.
Init or Pre-OP state: It blinks off 0.2s and on 0.2s.
Safe-OP fault state: It blinks off 1s and on 0.2s.
OP fault state: It remains on.
EtherCAT communication card
Description
Transmit Data+
Transmit Data-
Receive Data+
Not connected
Not connected
Receive Data-
Not connected
Not connected
Function description
