Communication extension card
EtherCAT communication card
8. SDO data operation

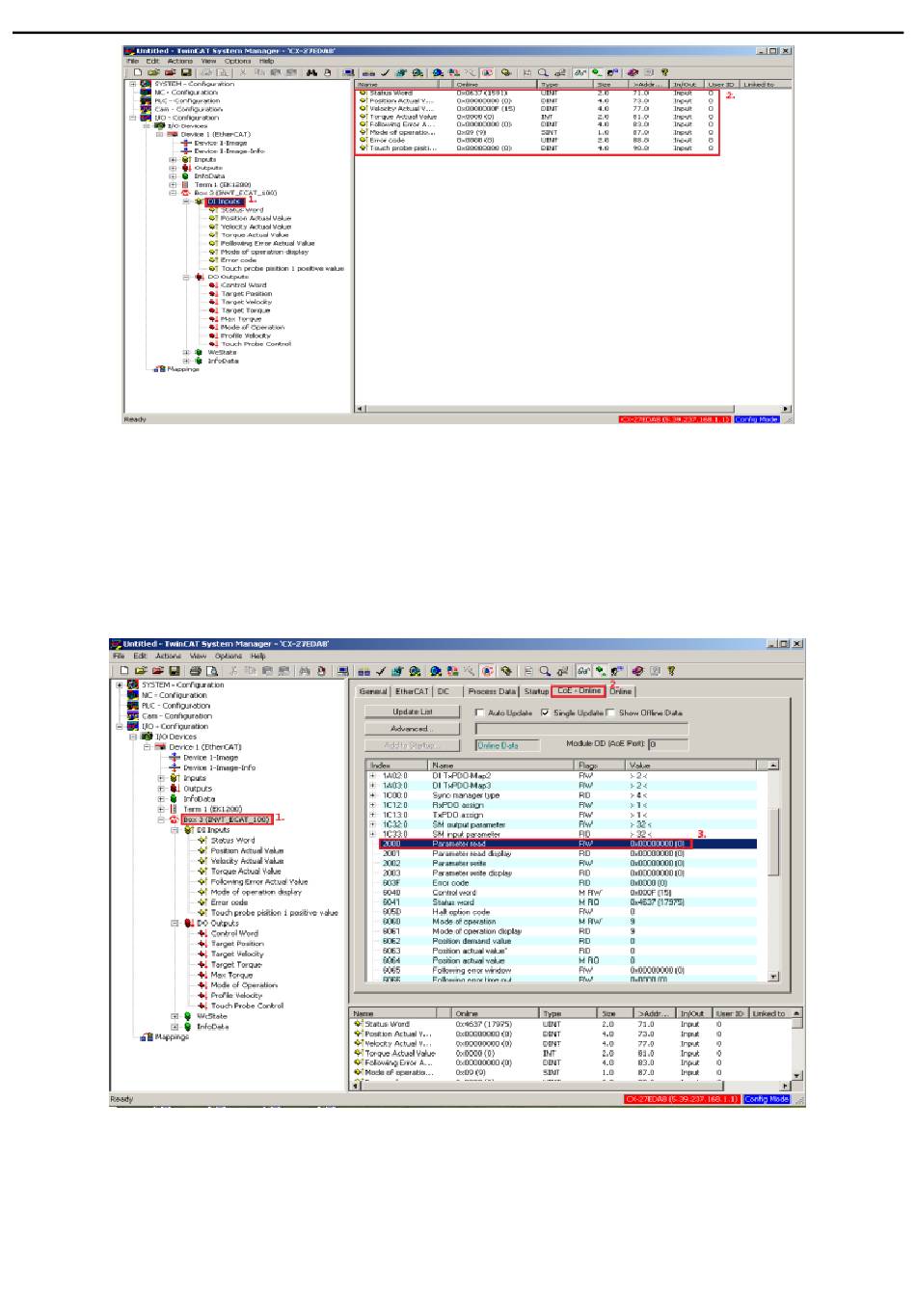

Select "CoE–Online" menu, as shown in the figure below. Read the VFD function code
parameters through index 0x2000, and double click 0x2000 to pop up a dialog box. Write the
parameter address in the dialog box, and click "OK". The returned results are stored in index
0x2001. Similarly, Write the VFD function code parameters through index 0x2002, and the
written results are stored in index 0x2003.
-98-
