Communication extension card

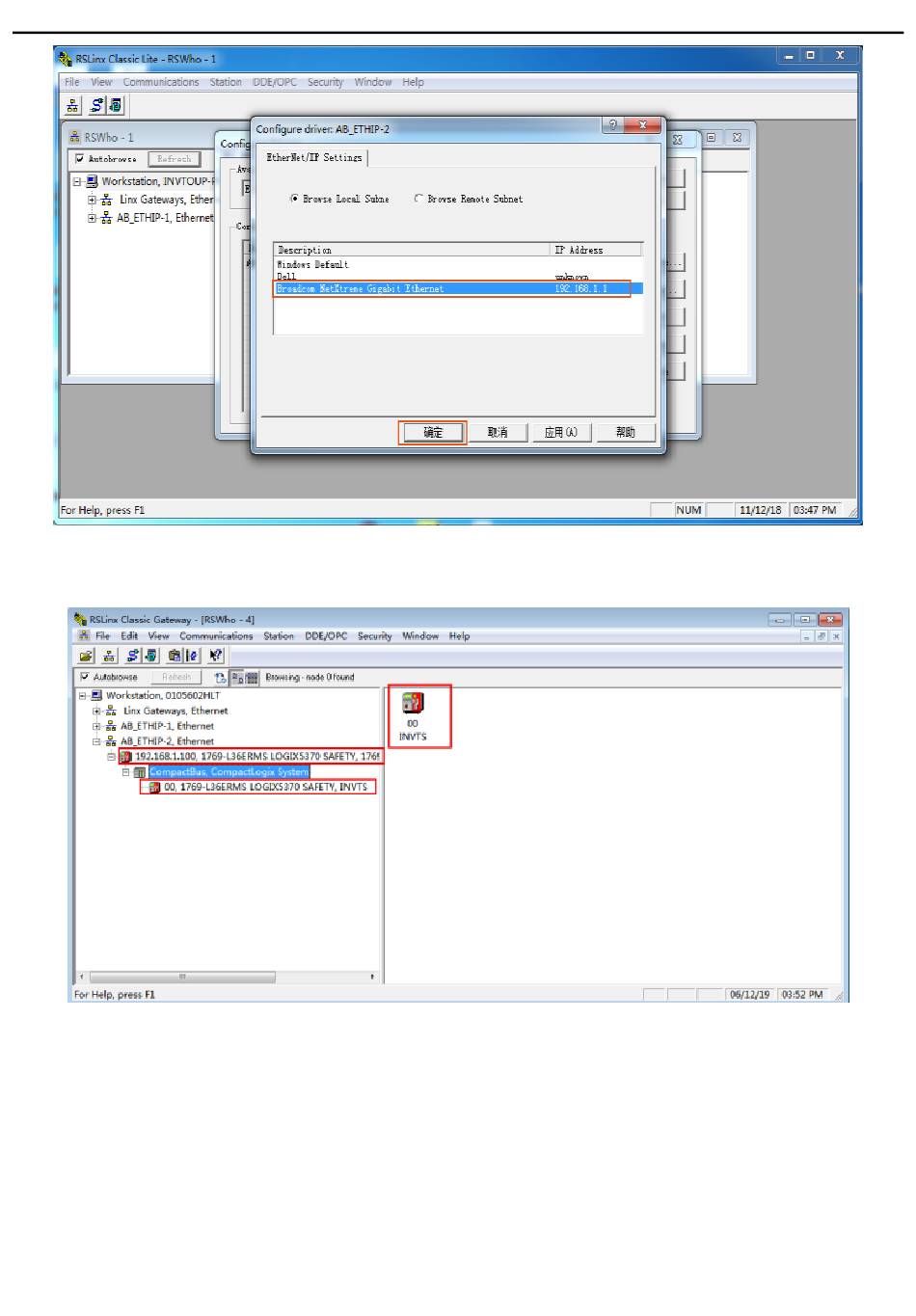

Click the RSWho icon at the upper left corner. Under the AB_ETHIP-2, Ethernet node,
there are PLC parameters, as shown in the following figure.
Configuration on the RSLinx is complete.
4.
Perform configuration on Studio 5000.
Open Studio 5000, right-click File, and choose New.
EtherNet/IP communication card
-73-
