Communication extension card
EtherCAT communication card
7. Process data input and output

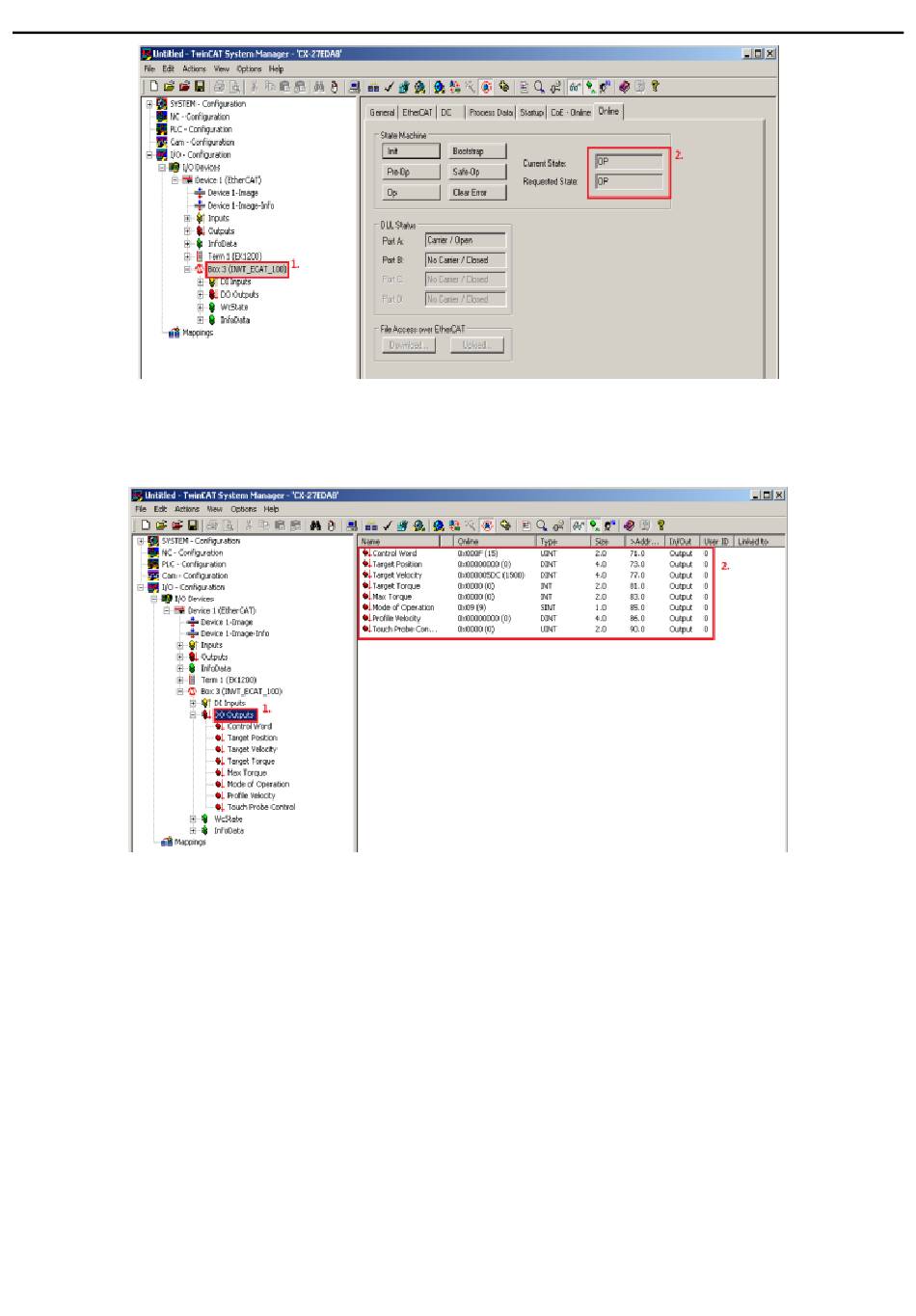

Select "DO Outputs" menu, and there are data sent from the master station to the VFD, which
can be used to set commands and rotation speed.
Select "DI Intputs" menu, and there are data sent from the VFD to the master station, which
can be used to return the statuses and and rotation speed.
-97-
