For each connection, the Connections dialog box includes:
Description – Displays the name of
1
the stream source device.
ID – Displays the device ID of the
2
stream source device.
Source – For unicast transports,
3
displays the IP address and port
number of the stream source device.
Destination – Displays the IP
4
address and port number of the device receiving the stream.
Locale – This field displays loc when the data streaming between the source and
5
display are controlled by the same controller (loc). This field displays ext if the data
stream has been exported across two different controllers or if the transport protocol is
multicast RTP.
Slot – This field displays information depending on the type of transport protocol in use.
6
Using the unicast RTP transport protocol, this field displays the stream number.
•
Four streams are available numbered 0, 1, 2, and 3.
Using the multicast RTP transport protocol, this field displays 0 for a source and
•
-1 for a display.
Configure Menu
Click Configure (see figure 67
Settings dialog box (see figure 70). This dialog contains general information for the
connected VNS 104 device and shows the active stream source for each connection.
1
2
3
4
5
6

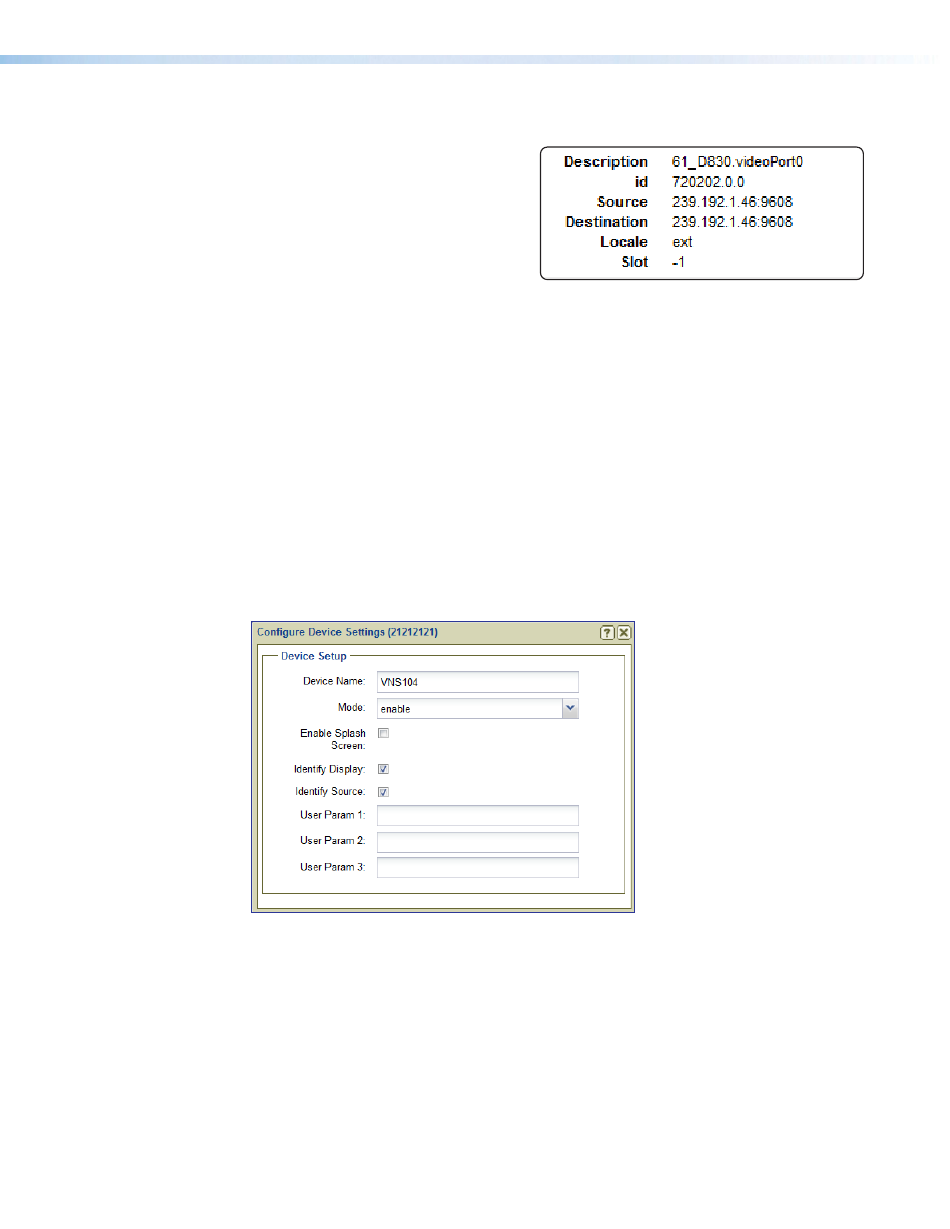

Figure 70. VNS 104 Root Device ‑ Actions Bar, Configure Device Settings
This dialog box contains the following settings:
Device Name: – This field is used to enter a user defined name for the device. The
1
name appears in the device list and can be letters, numbers, and the underscore
character. Spaces and other characters are not allowed.
Mode: – Drop-down list selects the operation of the VNS 104. Selections are:
2
Enable – Enables normal decoding of assigned streams.
•
Disable – Disables decoding. Displays a splash screen (if enabled), or a black
•
screen.
Standby – Disables decoding and displays a black screen.
•
1
2
3
4
5
6
on page 86) to open the Configure Device
