System Info Page

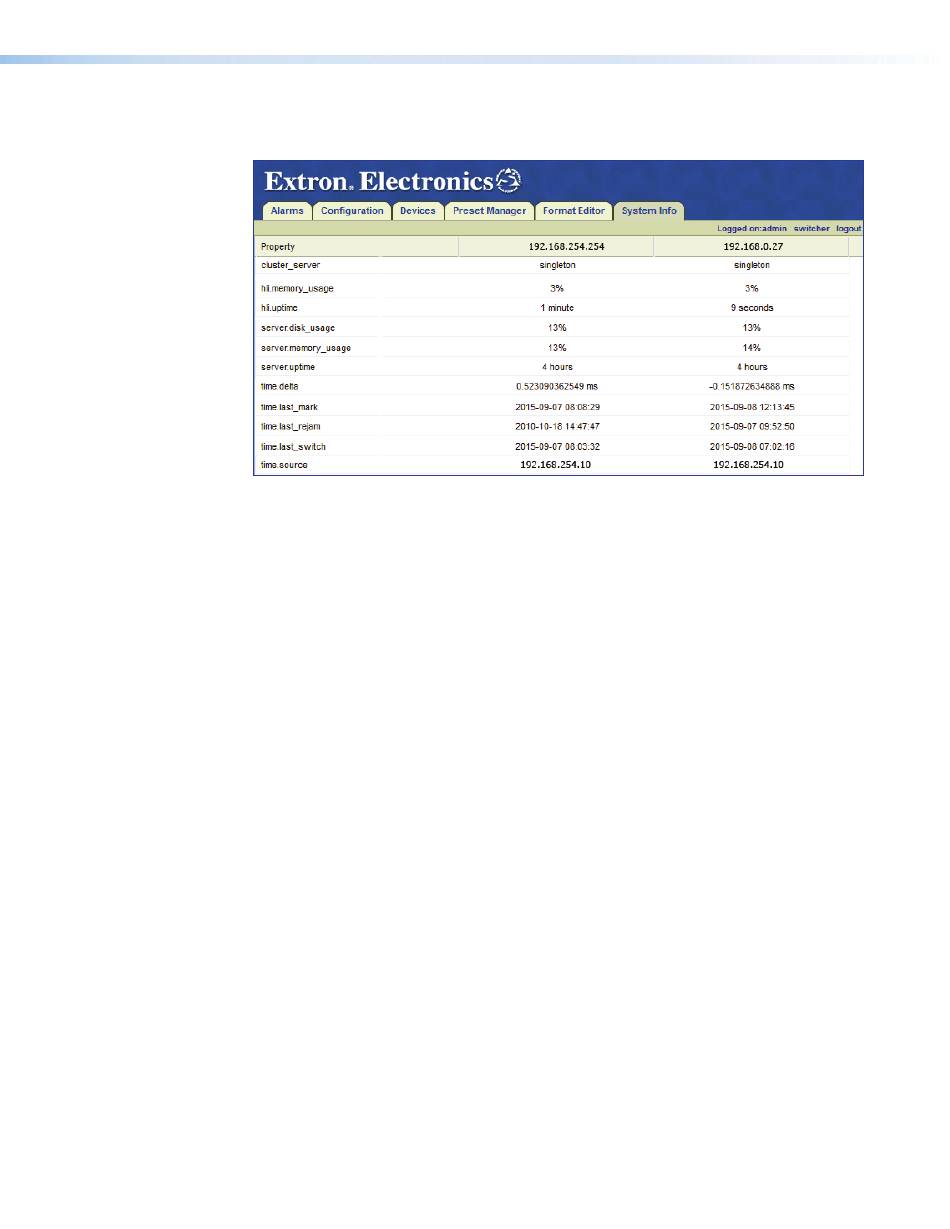

This page is accessed by selecting the System Info tab (see figure 26).
Figure 26.
The System Info page displays general information about the VNM EC 200. If the
VN-Matrix system contains multiple controllers, they are displayed on this page by
IP address using individual columns. The following information is displayed.
1
2
3
4
5
6
7
8
9
¢
£
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
9 9
¢ ¢
£ £
System Info Page
cluster_server — This field displays the role of the VNM EC 200 cluster as follows:
singleton for a single Controller that is NOT running as part of a redundant
•
cluster.
primary for a Controller running as part of a cluster, with the unit configured as
•
the redundant_primary unit in control of the cluster.
secondary for a Controller running as part of a cluster, with the unit configured as
•
the redundant_secondary unit in control of the cluster.
hli.memory_usage — This field displays the amount of memory the VNM EC 200
cluster is currently using for the Web-based user interface.
hli.uptime — This field displays the number of days the VNM EC 200 cluster Web-based
user interface has been operational.
server.disk_usage — This field displays the amount of disk space being used by the
VNM EC 200 cluster to keep the VN-Matrix system operational.
server.memory_usage — This field displays the amount of memory being used by the
VNM EC 200 cluster to keep the VN-Matrix system operational.
server.uptime — This field displays the number of days the VNM EC 200 cluster server
has been operational.
time.delta — This field displays the time difference between the clock of this Controller
and the reference time source. This value is normally less than one video frame.
time.last_mark — This field displays the date and time that the cluster was last
updated.
time.last_rejam — This field displays the date and time that the cluster was force
updated.
time.last_switch — This field displays the date and time that the cluster last switched
roles (primary to secondary or secondary to primary).
time.source — This field displays the device being used for clock synchronization within
the VN-Matrix system.
