Preset Manager Page

The Preset Manager page enables connection of system devices from the device list for
use in the VN-Matrix system. It allows users to create, save, and recall simple and complex
system configurations using drag and drop rules under the following guidelines:
•
•
•
•
•

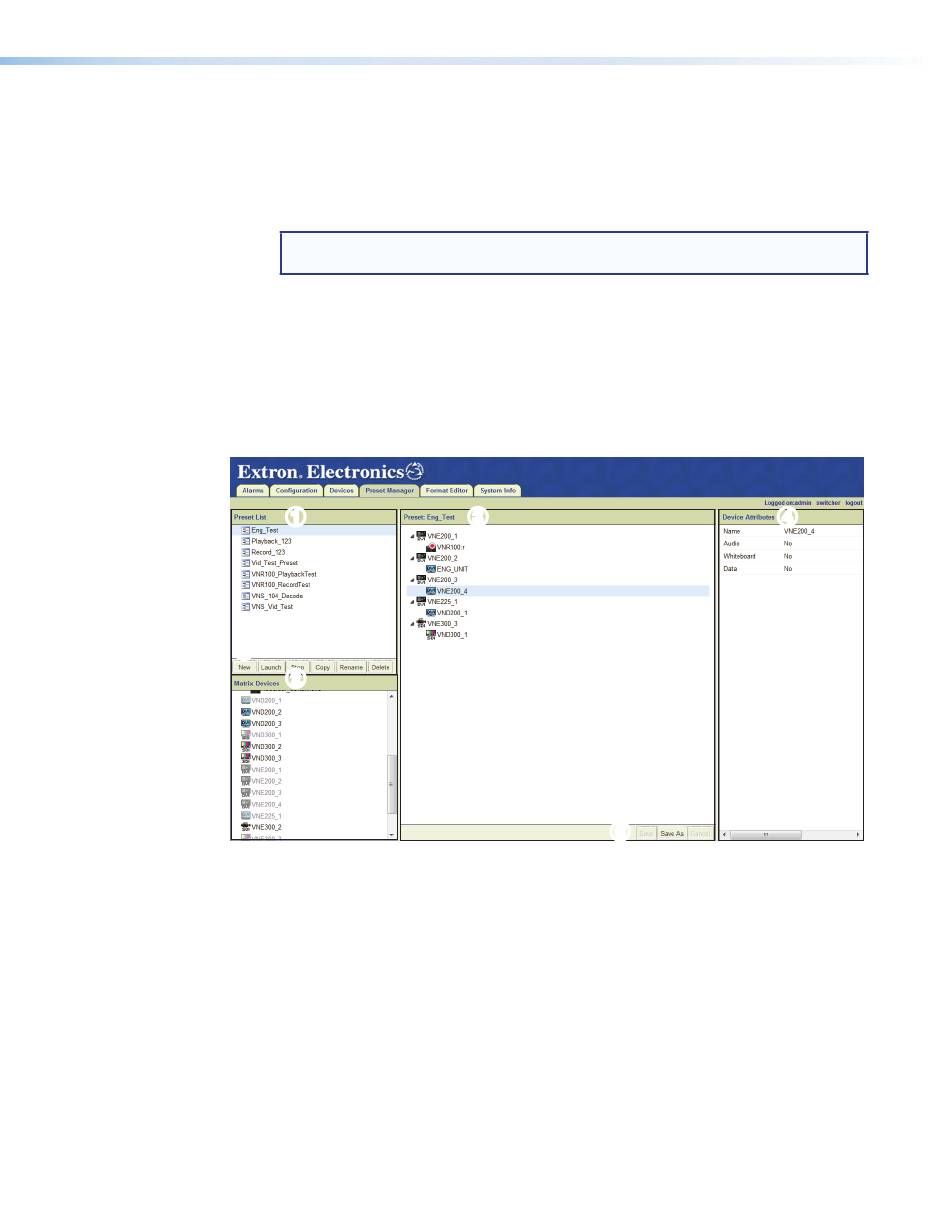

Click the Preset Manager tab to open the page (see figure 79).
5 5
Figure 79.
The Preset Manager page is divided into four panels:
1
2
3
4
In addition, there are two toolbars:
5
6
A preset can contain a mix of VNM device types.
NOTE: Some device combinations are not allowed (see
Connection Rules on page 100).
A preset can have a set of attributes that define the mode and configuration parameters
of devices in that preset.
A preset can be named and saved for easy recall.
A preset can be recalled by name using HLI commands.
Presets are non-exclusive. The recall of one preset does not affect other devices in the
VNM system that are not part of that preset.
1 1
2 2
Preset Manager Page
Preset List
Matrix Devices list
The Preset: Design workspace
Device Attributes
To create, launch, stop, copy, rename, or delete a selected preset, a toolbar is located
at the bottom of the Preset List panel (
When a new preset is configured or an existing preset modified, it is saved using the
toolbar at the bottom of the Preset: Design workspace (
3 3
6 6
).
1
VNM EC 200 • Preset Manager
Preset Design –
4 4
).
3
