Completed Directory Structure

A recording directory contains one set of files for each recorder (channel) in the preset. A file
set can contain audio, whiteboard, and other data streams associated with the video file.

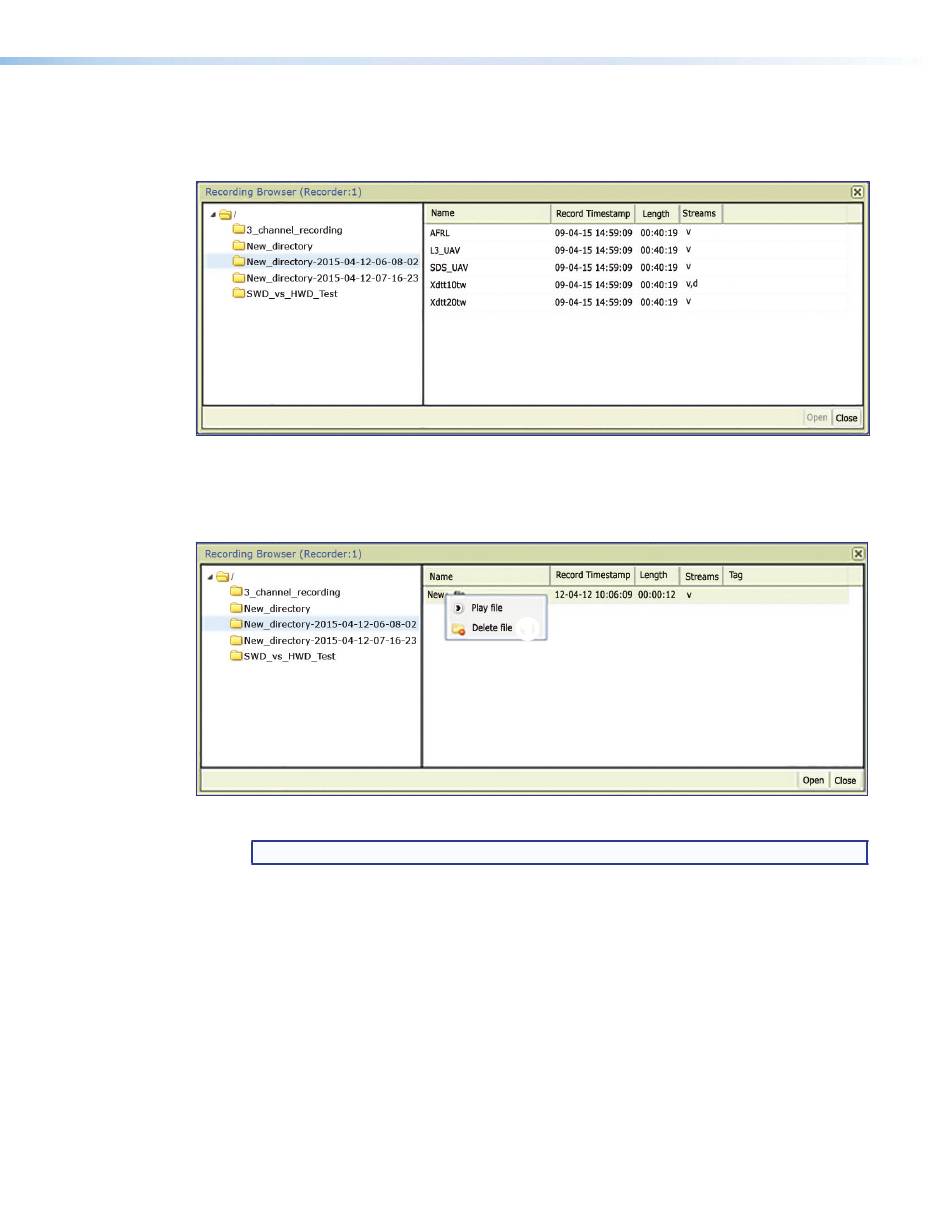

Figure 100.
Deleting a File
Delete a file by highlighting it in the browser, <right-click>, then select Delete File.
Figure 101.
NOTE: The browser must be refreshed after a delete.

Player File Management

All files for a single recording are in one directory. In a 5-channel device, the directory can
contain up to five sets of files, one for each channel.
In a multi-player system, the same directory must be present on all devices, and each
directory must contain the files recorded for that channel.
When selecting a previously recorded file for playback, navigate to the directory using the
Recording Browser. When the directory is selected, files in the directory are loaded into
all players automatically. It is not necessary to select individual files for each player device.
Recording Browser, One File per Channel
File Browser, Delete a Channel
1 1
VNM EC 200 • Preset Manager 115
