OSD Identifier Editor (Encoders and Decoders)
Select this option to customize the appearance of the on‑screen display for the selected
device or devices (see figure 47).
8 8
VNM 200/225/300/325

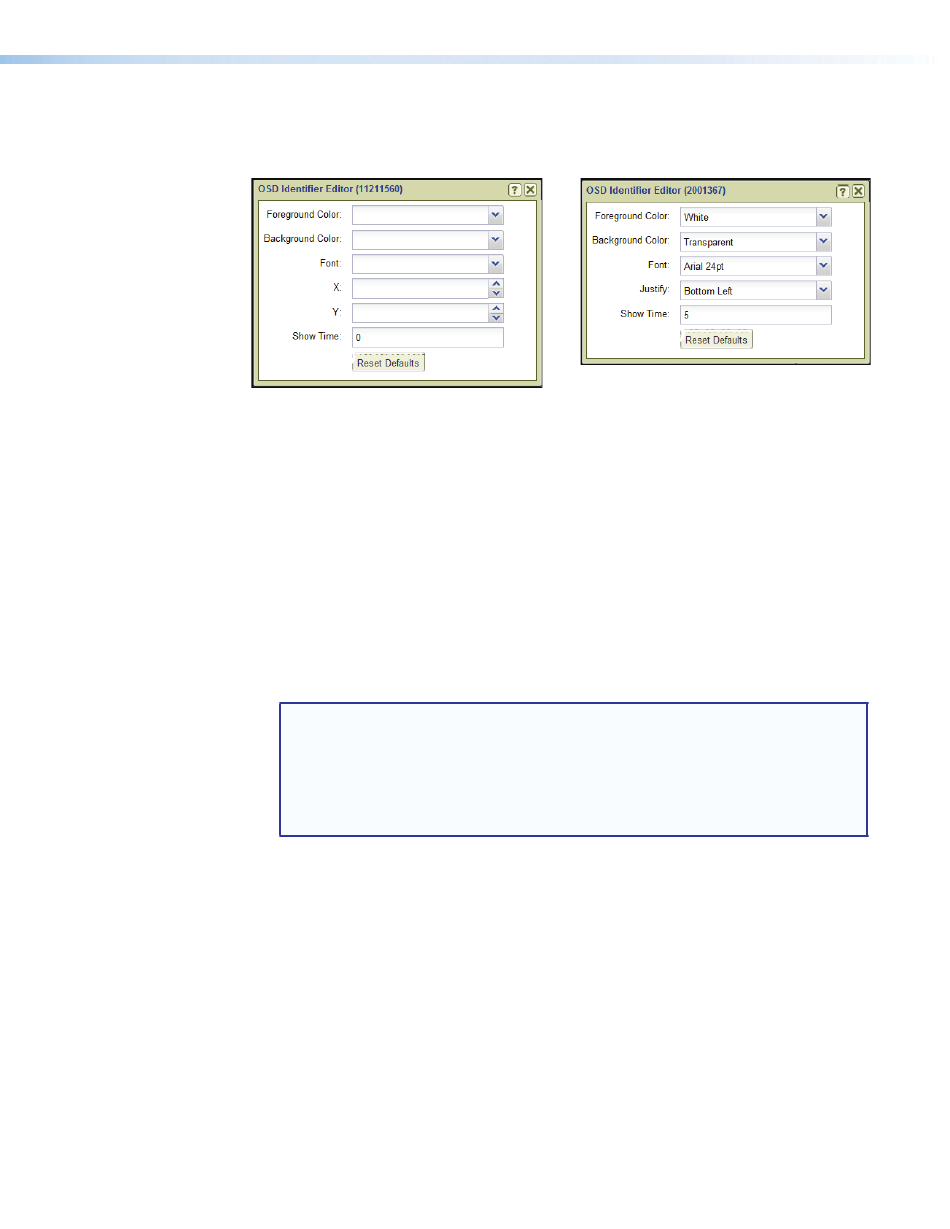

Figure 47. OSD Identifier Editor
Foreground Color — This drop-down list selects the color of the text box font.
1
Background Color — This drop-down list selects the text box background color.
2
Font — This drop-down list selects the type of font used in the text block.
3
X — This field selects the X (horizontal) position for the text block. The value is a
4
percentage of the screen width and references the center of the text block.
Y — This field selects the Y (vertical) position for the text block. The value is a
5
percentage of the screen height and references the center of the text block.
Justify — This drop-down list places the text block in one of nine fixed positions.
6
Show Time — Sets the length of time (in seconds) the name of the source device is
7
visible after a connection is made. A value of
Reset Defaults — Returns all OSD Identifier configuration to their defaults.
8
NOTES:
• This control option only functions when the Identify Source check box is
selected on the Configure menu (see
• The OSD is not recorded.
• See VNS 104 Software Decoder Configuration
OSD options.
1 1
2 2
3 3
4 4
5 5
8 8
7 7
VNE 250, VND250, VNS 104
keeps the name visible indefinitely.
0
Configure Menu
on page 86 for VNS 104
