Extron electronics MediaLink Controller MLC 52 RS MK Specifications

Controllers for mk junction boxes
Hide thumbs Also See for MediaLink Controller MLC 52 RS MK:
1
2
3
4

Advertisement

Quick Links

Download this manual

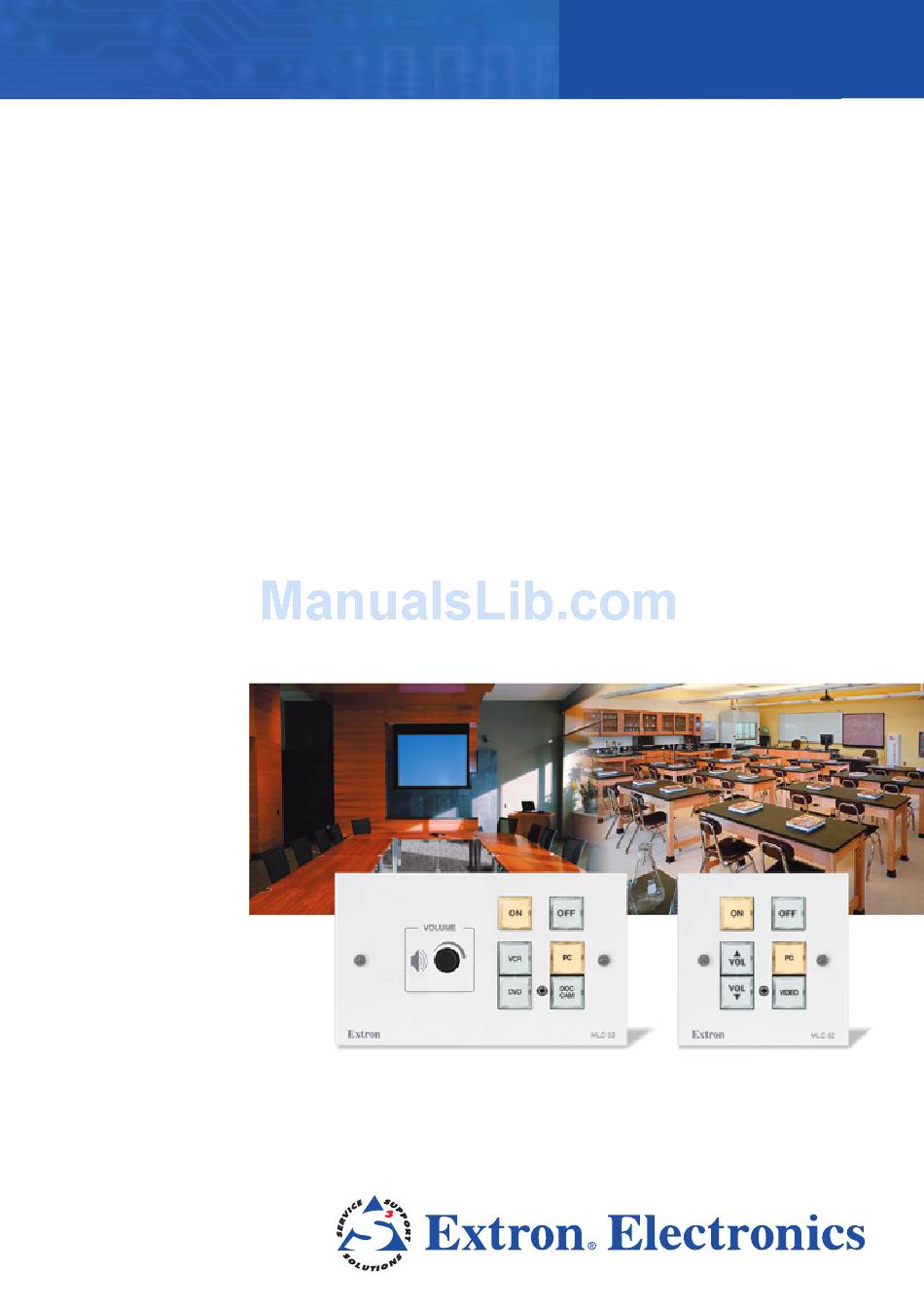

MediaLink
Controllers for
MK Junction Boxes

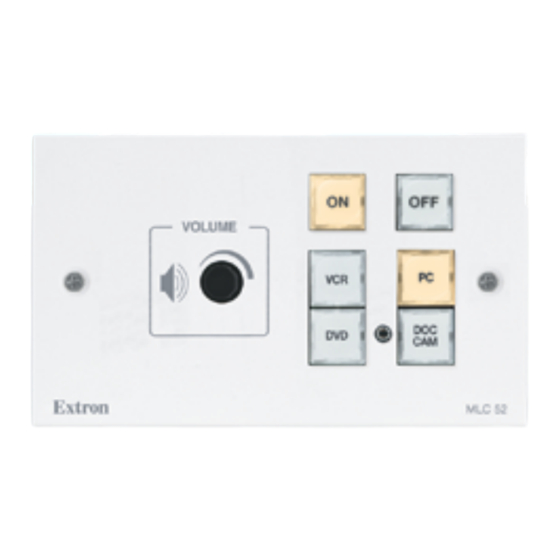

MLC 52 RS MK
MLC 52 RS VC MK
Simply take control of
your A/V system
®
MediaLink
Universal display control
➤
Discrete ON and OFF display power
➤
controls
Volume control using buttons or
➤
integrated volume control knob
Configurable, backlit, easy-to-label
➤
buttons
Three easy ways to configure:
➤
IR learning, preconfigured display
drivers, and IR beaming
Inactivity timer for display shutoff
➤
Front panel security lockout
➤
Designed to mount in a 47 mm deep
➤
MK junction box for UK, Singapore,
Hong Kong and other markets that
use MK-type junction boxes
Available with white or brushed
➤
aluminum faceplate
www.extron.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the MediaLink Controller MLC 52 RS MK and is the answer not in the manual?

Questions and answers

Related Manuals for Extron electronics MediaLink Controller MLC 52 RS MK

Summary of Contents for Extron electronics MediaLink Controller MLC 52 RS MK

  • Page 1 MediaLink Controllers for MK Junction Boxes MLC 52 RS MK MLC 52 RS VC MK Simply take control of your A/V system Universal display control ➤ ® Discrete ON and OFF display power ➤ controls Volume control using buttons or ➤...
  • Page 2 Introduction Extron MLC 52 RS MK and MLC 52 RS VC MK MediaLink Controllers are economical control panels ideally suited for conference room or classroom A/V systems. Each model fits in a standard MK wall or junction box and offers IR control and unidirectional RS-232 control.
  • Page 3 Overview Display ON/OFF Clearly labeled buttons make it easy and convenient to turn the display on and off, eliminating the need for an external display remote Volume Control Provides level control of a display’s speaker or variable line level output. If control is not required or additional source switching is needed, these buttons can be configured for input...

  • Page 4: Specifications

    specifications Application Diagram and Specifi cations DVD/VCR Combo S-video and Composite Video with Audio CONTROL — HOST PORTS Serial control port ... 1 bidirectional RS-232 front panel 2.5 mm mini stereo jack Baud rate and protocol ... 9600 baud, 8 data bits, 1 stop bit, no parity Serial control pin confi gurations ...
