OSD Identifier Editor
Select this option (see figure
the on‑screen display for the selected device or devices (see figure 59).

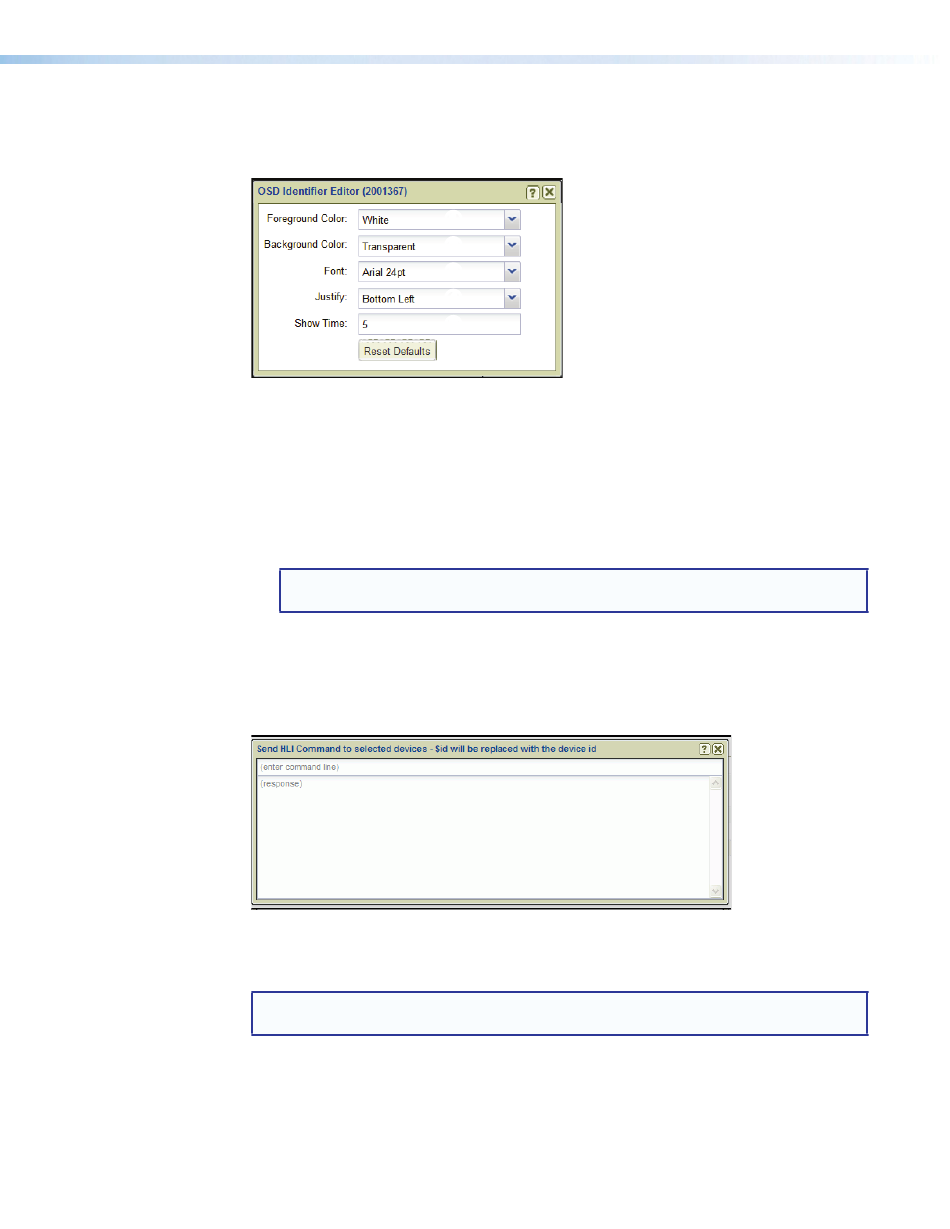

Figure 59. VNM 250 OSD Identifier Editor
Foreground Color — This drop-down list selects the color of the text box font.
1
Background Color — This drop-down list selects the text box background color.
2
Font — This drop-down list selects the type of font used in the text block.
3
Justify — This drop-down list places the text block in one of nine fixed positions.
4
Show Time — Sets the length of time (in seconds) the name of the source device is
5
visible after a connection is made. A value of
NOTE: This control option only functions when the Identify Source check box
is selected in the Configure menu (see
Reset Defaults — Returns all OSD ID settings to defaults.
6
Send HLI Command
Select this option (see figure
(HLI) command strings to VN-Matrix devices (see figure 60).
Figure 60. HLI Command Window
To send a command, click in the (enter command line) text field, type the command,
and press <Enter>.
NOTE: The response is returned in the area of the dialog box (response) just below
the command.
Example HLI commands and information on how to use them are available in
Control on page 178.
57, on the previous page) to customize the appearance of
3
1 1
2 2
3 3
4 4
5 5
6 6
keeps the name visible indefinitely.
0
VNM 250 Configuration
57, ) to open a dialog box for sending High Level Interface
4
VNM EC 200 • Device Configuration and Control
on page 67).
