VNM 250 Configuration

The VND 250 and VNE 250 add HDMI input and output capability to the VN-Matrix system.
Several configuration items are added to the normal encoder and decoder configuration
pages for HDMI and HDCP compatibility.
Info Menu (VNM 250)
The Info action bar dialog adds two LAN port connection entries for separate control
and streaming connections. Click Info to open the
displays basic information for the selected VNM 250 (see figure 49).
VNE 250
VND 250

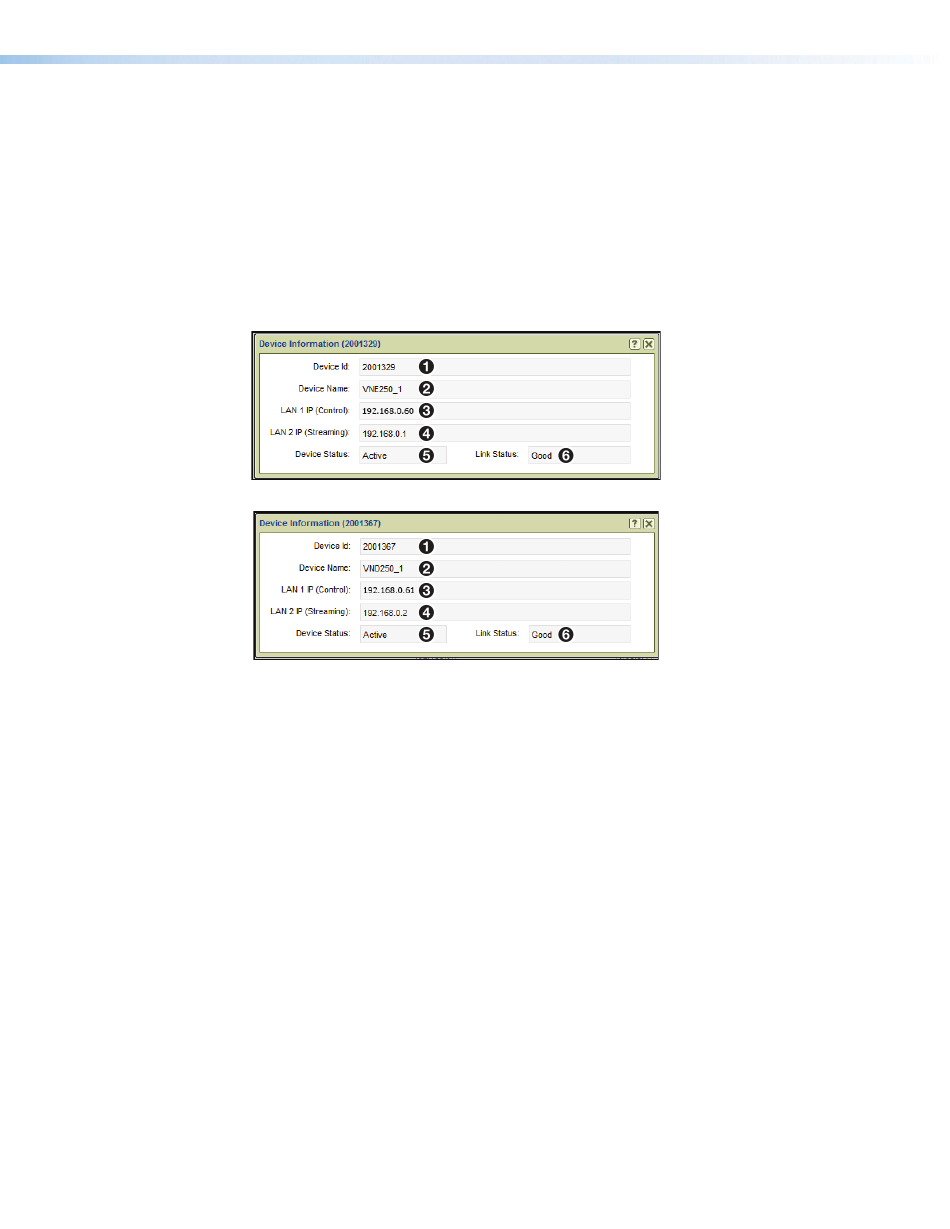

Figure 49.
The following fields are read-only (cannot be edited).
1
2
3
4
5
6
Device Information ‑ VNM 250
Device Id — Displays the ID number of the selected device.
Device Name — Displays the name of the selected device.
LAN 1 IP (Control) — Displays the IP address of the control port.
LAN 2 IP (Streaming) — Displays the IP address of the streaming port.
Device Status — The status of the selected device. Normally it shows Active and
the quality of the link is indicated in the Link Status field. If the device is missing or
cannot be contacted on the network, it shows No Device.
Link Status — A link status of Good indicates little or no management packet loss.
A link status of Fair indicates a small amount of packet loss. A link status of Poor
indicates a bad link. Investigate whether the link to the device has sufficient bandwidth
to carry the data and management traffic.
Device Information
