DataViewer

DataViewer is an enhanced terminal emulation program that facilitates analysis of RS-232,
USB, and TCP/IP communication with Extron devices. The software allows users to send
commands to a device and view the responses in ASCII or hexadecimal format. Command
and response logs can be saved in text or HTML format.
Dataviewer is available at www.extron.com. Download the installation file and load the
program on the PC connected to the EC 200.
Start the Dataviewer program
1.
2.
3.
4.
You are now ready to begin entering commands.
Open the DataViewer help file from the toolbar for more information on the program.
Click the desktop icon.
The Communications Setup dialog box opens. Select the communications tab.
Select the USB tab (see figure 188,
1 1
Extron USB Device
3 3
4 4

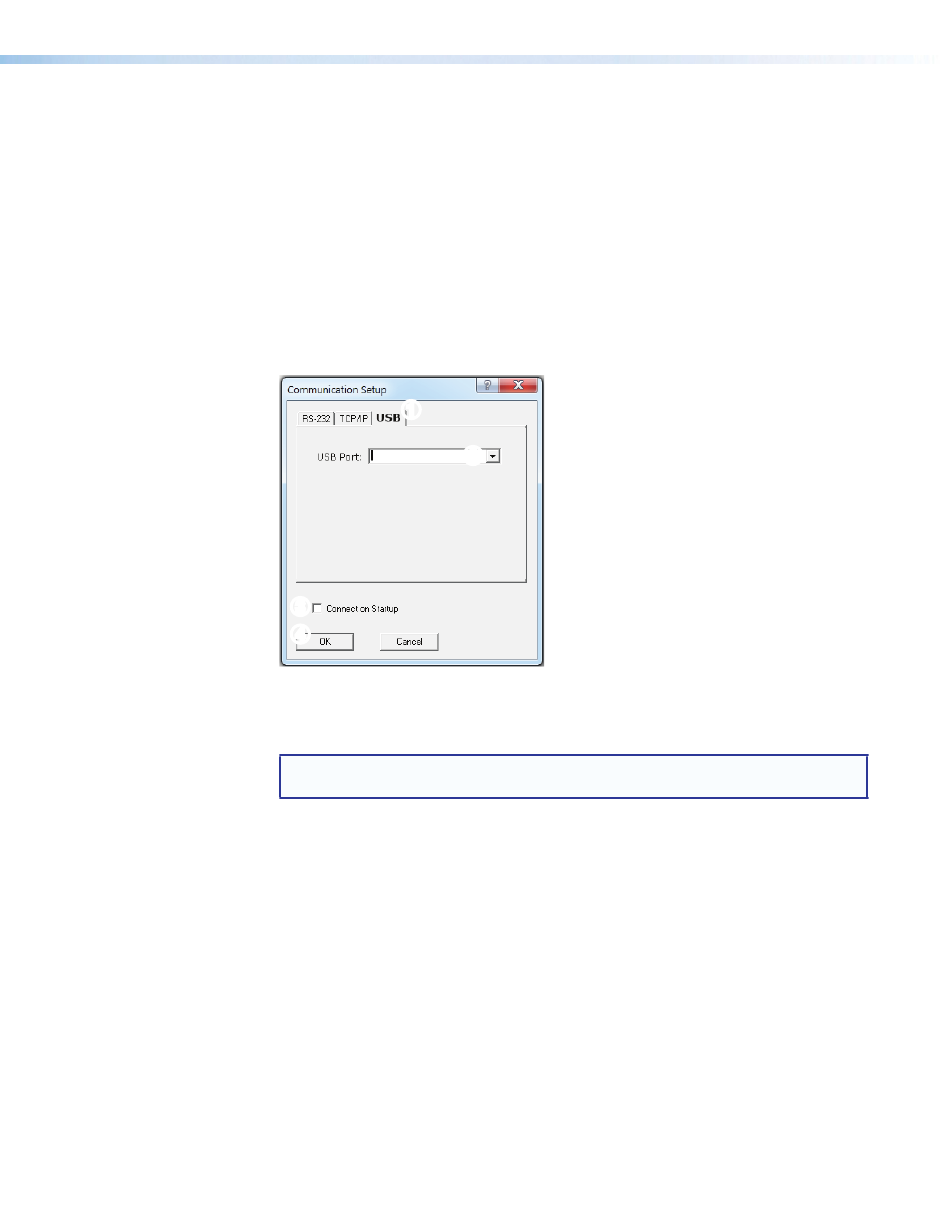

Figure 188. Communications Dialogs
If USB is selected, choose Extron USB Device in the drop-down window (see figure
187, ).
2
NOTE: To automatically connect to the EC 200, select Connect on startup (see
figure 187, ).
3
Click OK ( ) to connect to the EC 200 and start using the program.
4
) when using the front panel config port.
1
2 2
VNM EC 200 • Reference Information 230
