Device Attributes – VND 250 Decoder
The VND 250 decoder has an extended set of device attributes.
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
9 9
¢ ¢
£ £
¤ ¤
¥ ¥
Figure 83.
Name — Read-only field for the device name, taken from the device list.
1
Output Format — Drop-down list of available output resolutions. Choices are:
2
Auto — Output format is the same as the input source (stream) format.
•
Monitor — Output format is set to the preferred mode (EDID) of the display. If
•
necessary, scaling is applied.
Fixed — Output format is selected from a drop-down of available resolutions. If
•
necessary, scaling is applied.
Scale Mode — Drop-down list available when the Output Format is Monitor or
3
Fixed.
Choices are:
Fill — The decoded image is scaled to the selected output format. Aspect ratio is
•
not maintained.
Follow — The decoded image is scaled to the selected output format. Aspect ratio
•
is maintained.
Audio Stream — Drop-down list with the following choices:
4
None — Mutes the audio streams.
•
Program — Enables the decoding of program audio.
•
Program plus Return — Enables the decoding of program audio and return path
•
audio.
Program Audio Source — Drop-down list of the other VNE 250 devices in the preset.
5
None — Default. Selects audio from the currently connected stream.
•
{List} — Selects an audio source from a list of VNE 250 devices in the preset.
•
Program Audio Output— Selects the required output for the program audio.
6
HDMI — Select to enable the HDMI audio output.
•
Analog — Select to enable the analog audio output.
•
Both — Selects both the analog and digital audio outputs.
•
Disable — Mutes all audio output.
•

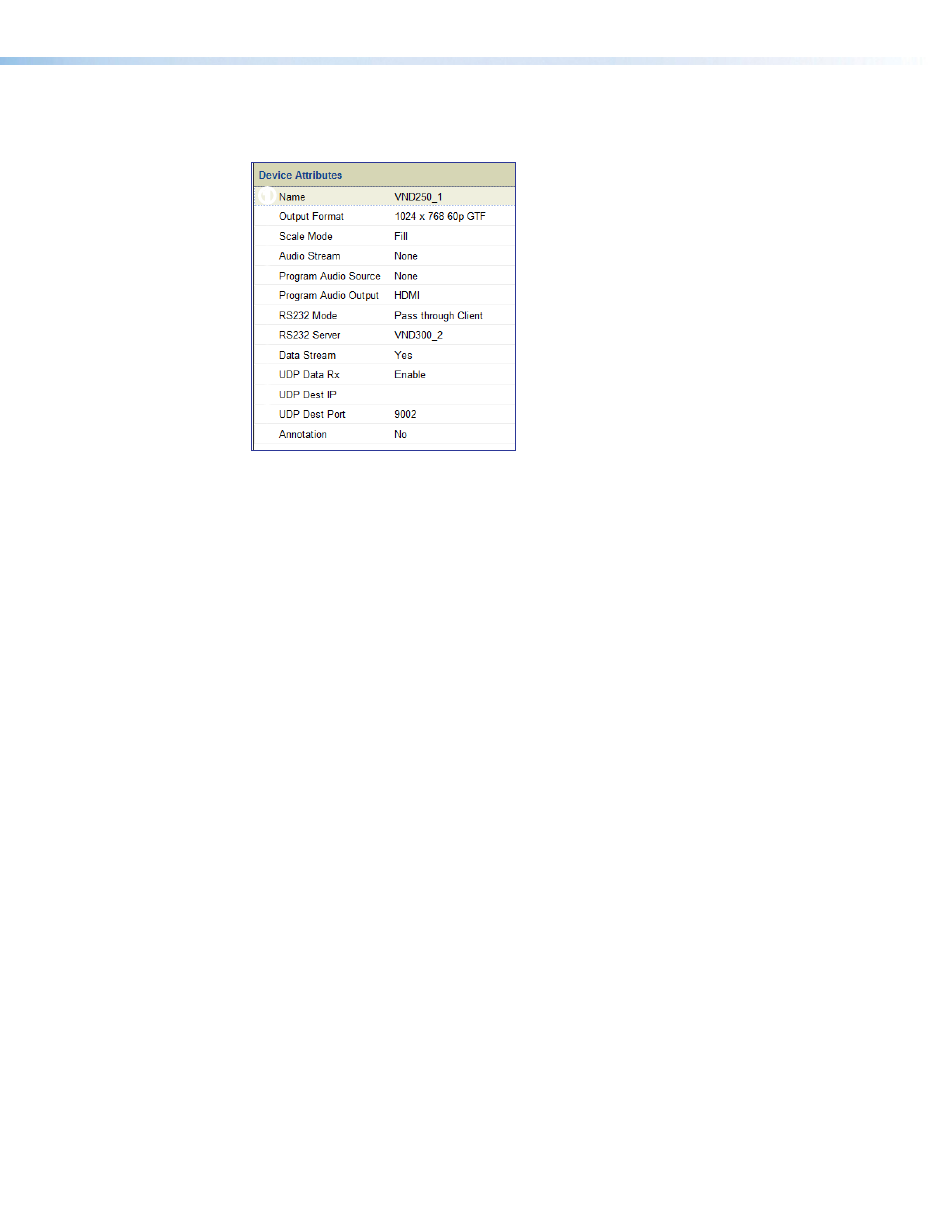

Device Attributes Panel, VND 250
