About the VNM EC 200
The VNM EC 200 is a dedicated control device for VN-Matrix systems. The Controller
simplifies managing a large VN-Matrix deployment allowing users to view, manage, and
dynamically control multiple VN-Matrix systems and networked VN-Matrix domains from a

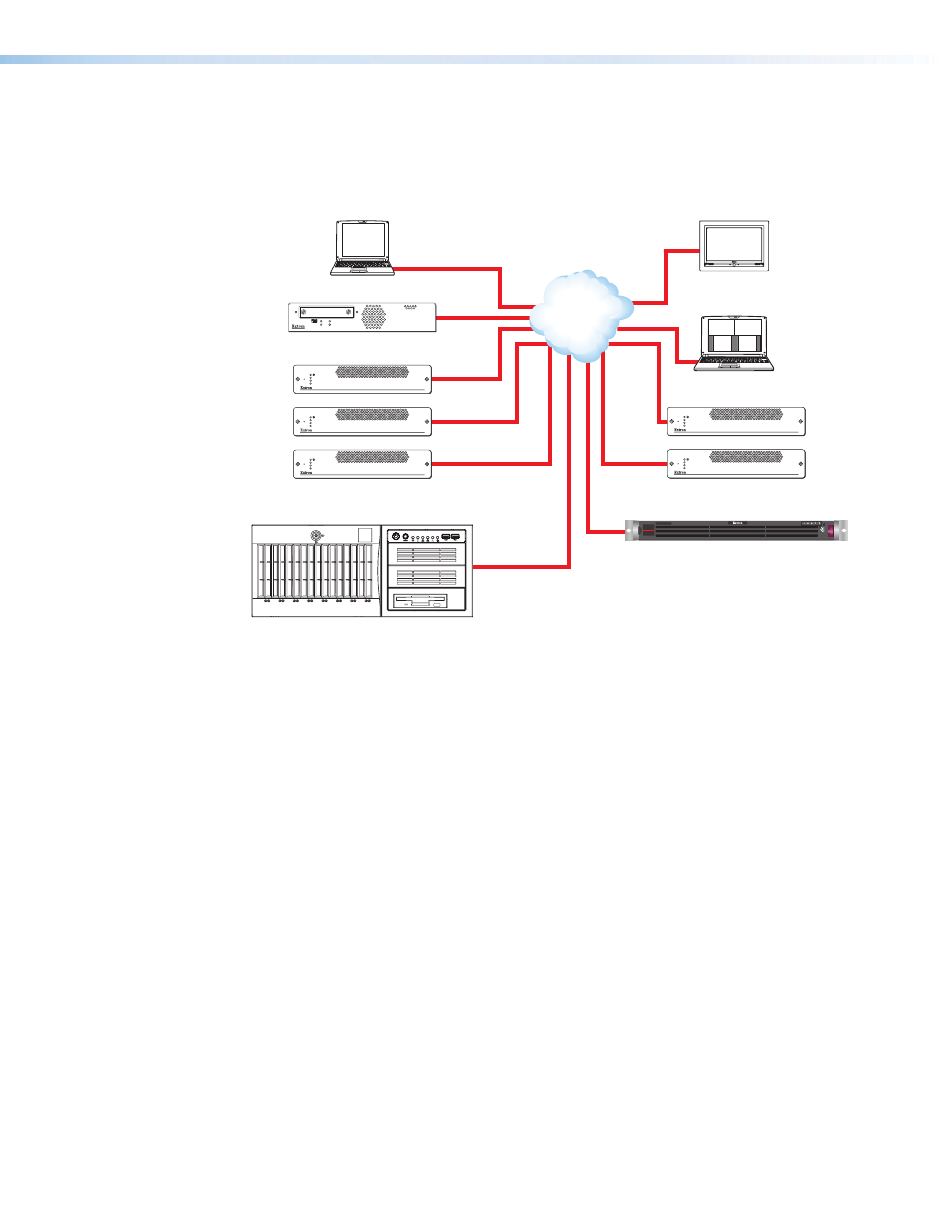

single interface. Figure 1 shows a simple application.
Figure 1.
The VNM EC 200 is recommended when:
•
•
•
•
For information on setting up a single VNM EC 200 system, see the
Configuration

About the Web-based User Interface

Every VN-Matrix system product includes a basic embedded interface for configuration and
control of itself and a few additional units. This interface is useful when control is limited to
several units that generally remain in a fixed operational state.
However, for large systems (more than ten devices) the VNM EC 200 provides a more
sophisticated user interface that simplifies the configuration and usability of a VN-Matrix
system.
The EC 200 includes a removeable SSD that, by purchasing a spare drive, allows users to
easily and quickly switch system classifications in secure and unsecure environments.
Browser Based User
Control
LAN
PWR
A
CONFIG LAN
SSD
B VNM EC 200
VNM ENTERPRISE CONTROLLER
VNM Enterprise Controller 200
LAN-1
LAN-2
STATUS
VN-MATRIX 225 SERIES
RGB/DVI OVER IP
LAN-1
LAN-2
STATUS
VN-MATRIX 225 SERIES
RGB/DVI OVER IP
LAN-1
LAN-2
STATUS
VN-MATRIX 225 SERIES
RGB/DVI OVER IP
Multiple VNM Matrix Series Encoders
(or CODECs configured as encoders)
VNM Recorder (5-channel recorder)
Single VNM EC 200 System with No Redundancy
More than ten VN-Matrix units are configured into a system.
A system of VN-Matrix units are interfaced to an external control system requiring
dynamic control of the units in a switching solution.
Preset configurations must be prepared and recalled.
Redundant system control is required.
section page 13.
TouchLink
External User Control
Network
Multicast Enabled
Network
Screen 1
Screen 3
VNS 104 Multi-stream
Software Decoder
LAN-1
LAN-2
STATUS
LAN-1
LAN-2
STATUS
Multiple VNM Matrix Series Decoders
(or CODECs configured as decoders)
VN-Matrix
VNR 100
Recorder
VNR 100 Single Channel Recorder
Single EC 200
VNM EC 200 • Introduction
™ Touchpanel
Screen 2
Screen 4
VN-MATRIX 225 SERIES
RGB/DVI OVER IP
VN-MATRIX 225 SERIES
RGB/DVI OVER IP
