Unicast RTP — An Overview
Similar to multicast RTP, this method uses a real-time variation of UDP, called unicast RTP.
Unicast RTP is used where the network infrastructure does not support multicast traffic.
Typically, this protocol is used for point-to-point configuration (single source to single
display), but can be configured to stream to a maximum of four displays.
NOTE: The encoder sends an individual stream to each decoder. This means that the
total bandwidth of the VN-Matrix system increases as more decoders are added.
SOURCE
RTP (1 - 4)
LAN-1
LAN-2
STATUS
VN-MATRIX 225 SERIES
RGB/DVI OVER IP

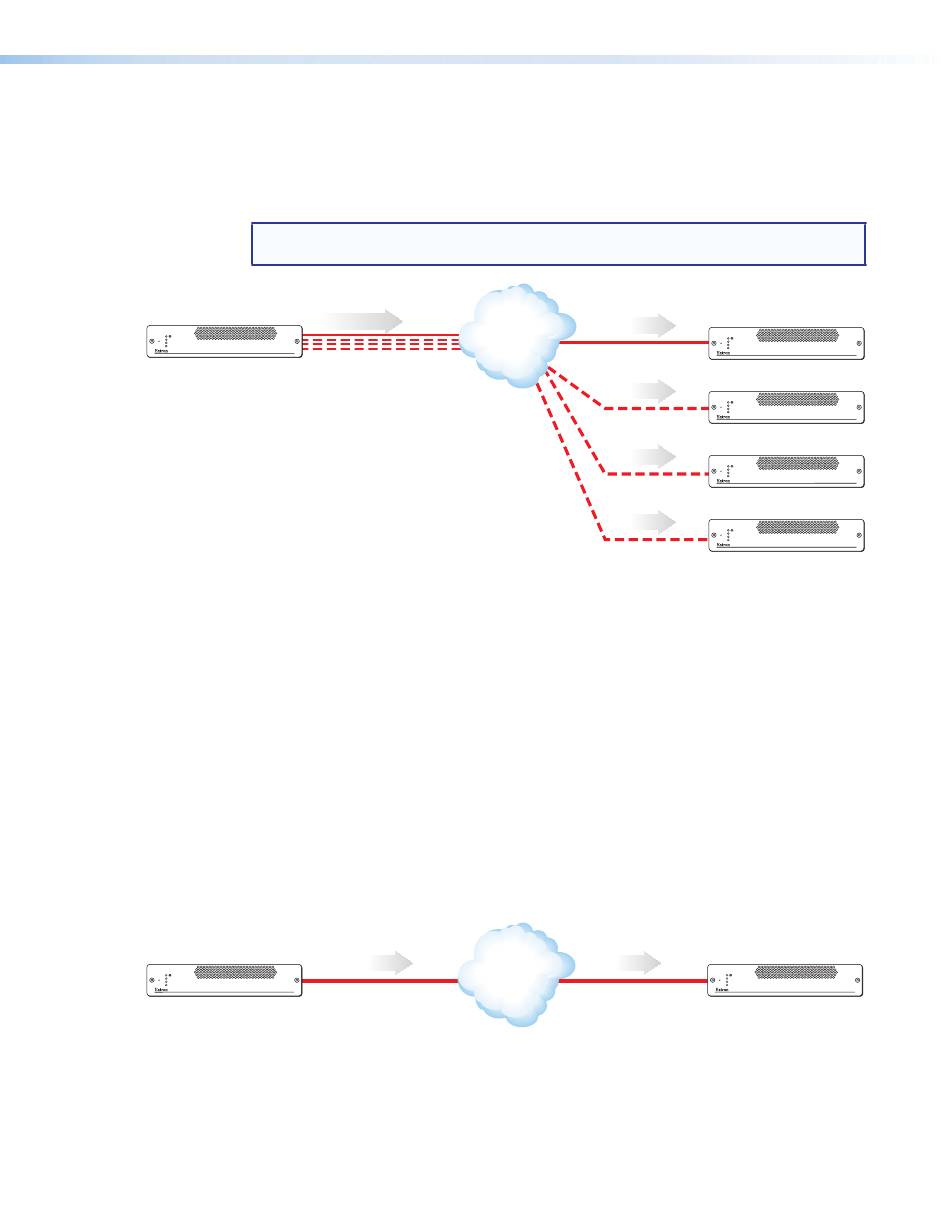

Using RTP, encoder sends data
to up to 4 specified decoders.
Figure 4.
RTP provides very low latency which is important for video streaming. Unlike other
protocols, RTP packets include a time stamp. If packets are received in the wrong
order, they are sorted into the correct order for display or discarded if the time stamp is
out-of-date.
However, because RTP is a connectionless protocol, data delivery is not guaranteed.
When data packets are lost (for example, due to excessive network traffic) the
VN-Matrix devices carefully manage the data stream to minimize image disruption.
Unicast TCP — An Overview
This method transports data using standard Transport Control Protocol (TCP) and should
only be used for single point-to-point transfer of data.
TCP is a connection-based protocol and, therefore, data delivery is guaranteed. However,
in the event of excessive network traffic, delivery can be delayed, impacting real-time
performance.
SOURCE
VN-MATRIX
(encoder)
LAN-1
LAN-2
STATUS
VN-MATRIX 225 SERIES
RGB/DVI OVER IP
Figure 5.
The decoder defines which source it connects to. Other than defining an IP address and
source type (if required), no special source encoder setup is required.
Network
Unicast RTP Streaming
TCP
Network
Unicast TCP Streaming
DISPLAYS
RTP 1
LAN-1
LAN-2
STATUS
RTP 2
LAN-1
LAN-2
STATUS
RTP 3
LAN-1
LAN-2
STATUS
RTP 4
LAN-1
LAN-2
STATUS
DISPLAY
VN-MATRIX
(decoder)
TCP
LAN-1
LAN-2
STATUS
Decoder makes a TCP
connection with the
specified encoder.
VNM EC 200 • Introduction
VN-MATRIX 225 SERIES
RGB/DVI OVER IP
VN-MATRIX 225 SERIES
RGB/DVI OVER IP
VN-MATRIX 225 SERIES
RGB/DVI OVER IP
VN-MATRIX 225 SERIES
RGB/DVI OVER IP
VN-MATRIX 225 SERIES
RGB/DVI OVER IP
5
