Info Menu
Click Info (see figure 67 on the previous page) to open the Device Information
dialog box (see figure 68). There are no configuration settings, only information about the
connected VNS 104 device.
Device Information (21212121)
1
212121
Device Id:
2
Device Name: Licensed Desktop
3
192.168.3.51
IP Address:
4
Active
Device Status:

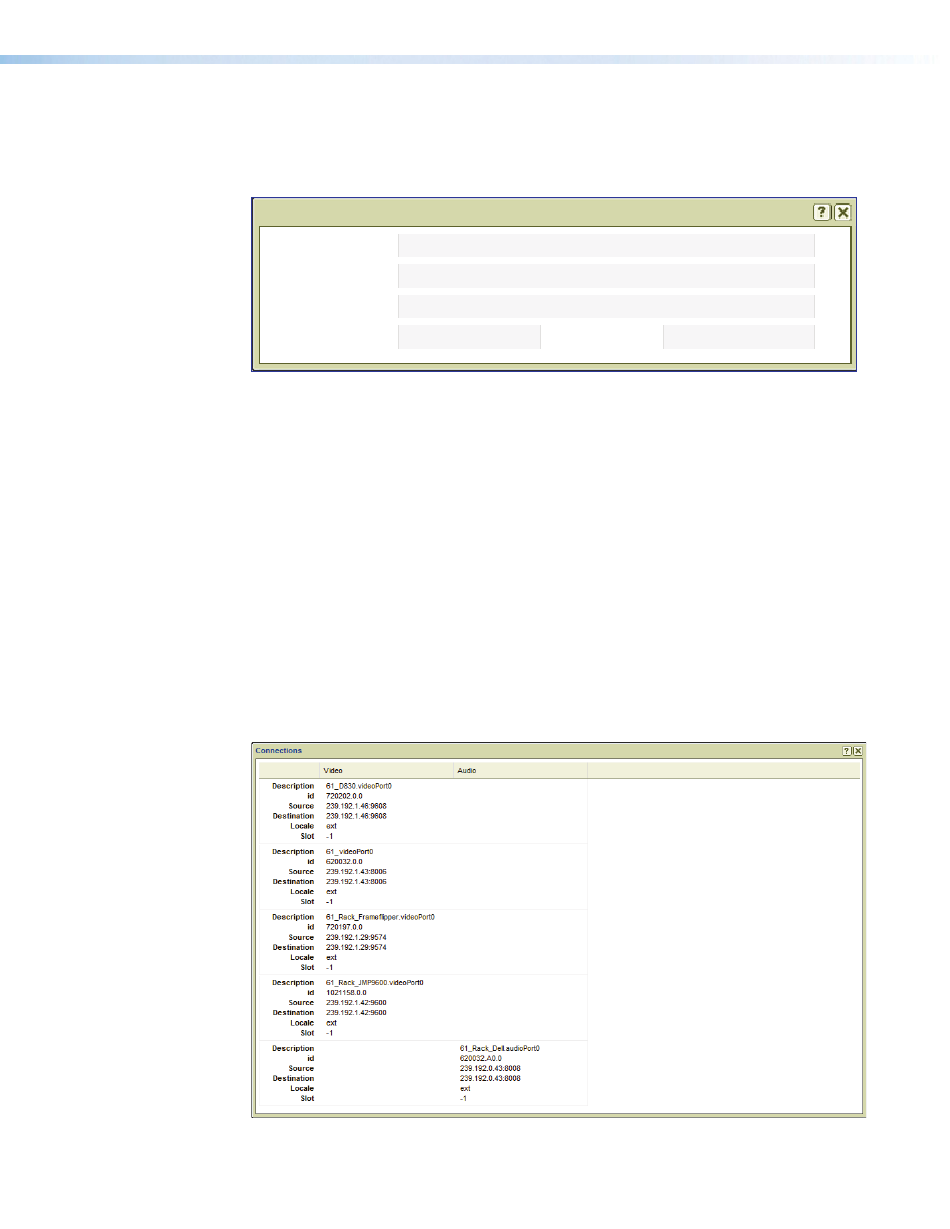

Figure 68. VNS 104 Root Device ‑ Device Information
The fields are:
Device ID – Displays the device ID of the connected VNS 104.
1
Device Name – Displays the name of the connected VNS 104.
2
IP Address – The IP address of the connected VNS 104 device.
3
Device Status – Displays Active when there is a VNS 104 connected, or No Device
4
if a VNS 104 is not detected. When the device is active, the Link Status indicates the
quality of the management link.
Link Status – Displays Good when an active VNS 104 device is connected with little
5
or no management packet loss; Fair when a small amount of packet loss is detected;
and Poor for a bad link. When the Link Status is Poor, ensure the link has sufficient
bandwidth to carry the data.
Connections Menu
Click Connections (see figure
This box contains general information for the connected VNS 104 device and shows the
active stream source for each of the four connections.
Figure 69. VNS 104 Root Device ‑ Connections
5
Link Status:
67) to open the Connections dialog box (see figure 69).
VNM EC 200 • Device Configuration and Control
Good
