25. Select auto from the Mode drop-down list to force a resync of the source.
(see figure 135, ).
1

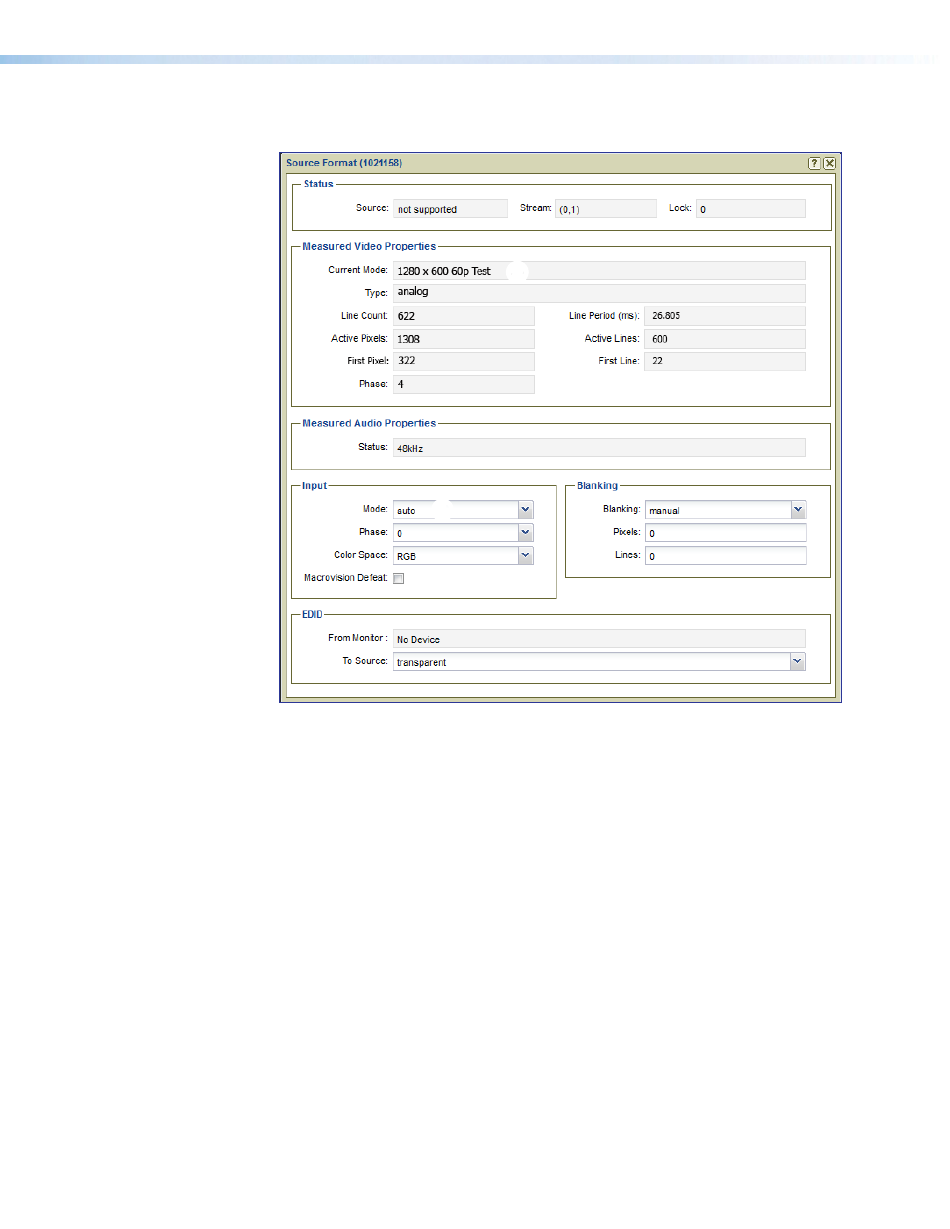

Figure 135. Force a Resync of the Source
26. The name of the new source created in step 18 is now visible in the Current Mode
field (see figure 135,
2
Refresh the Source Format dialog box. Close, then open the dialog box by
•
clicking Format from the Actions menu bar.
Is the source still connected or if the source is a PC, is the PC still active or has it
•
entered hibernate mode?
Is the new source name in the Mode drop-down list? If not, use the right tab
•
(Source Format Editor) and make sure the new source is saved.
Check that values entered into the Source Format Editor dialog box (step 21)
•
were input correctly.
2 2
1 1
). If the new source name is not visible, check these items.
