Configure Menu

Click Configure (see
Settings dialog box (see figure 64) used to change the device name or to configure up
to three user parameters for the recorder. The dialog box is the same for the VNM Recorder
and the VNR 100.
1
2
3

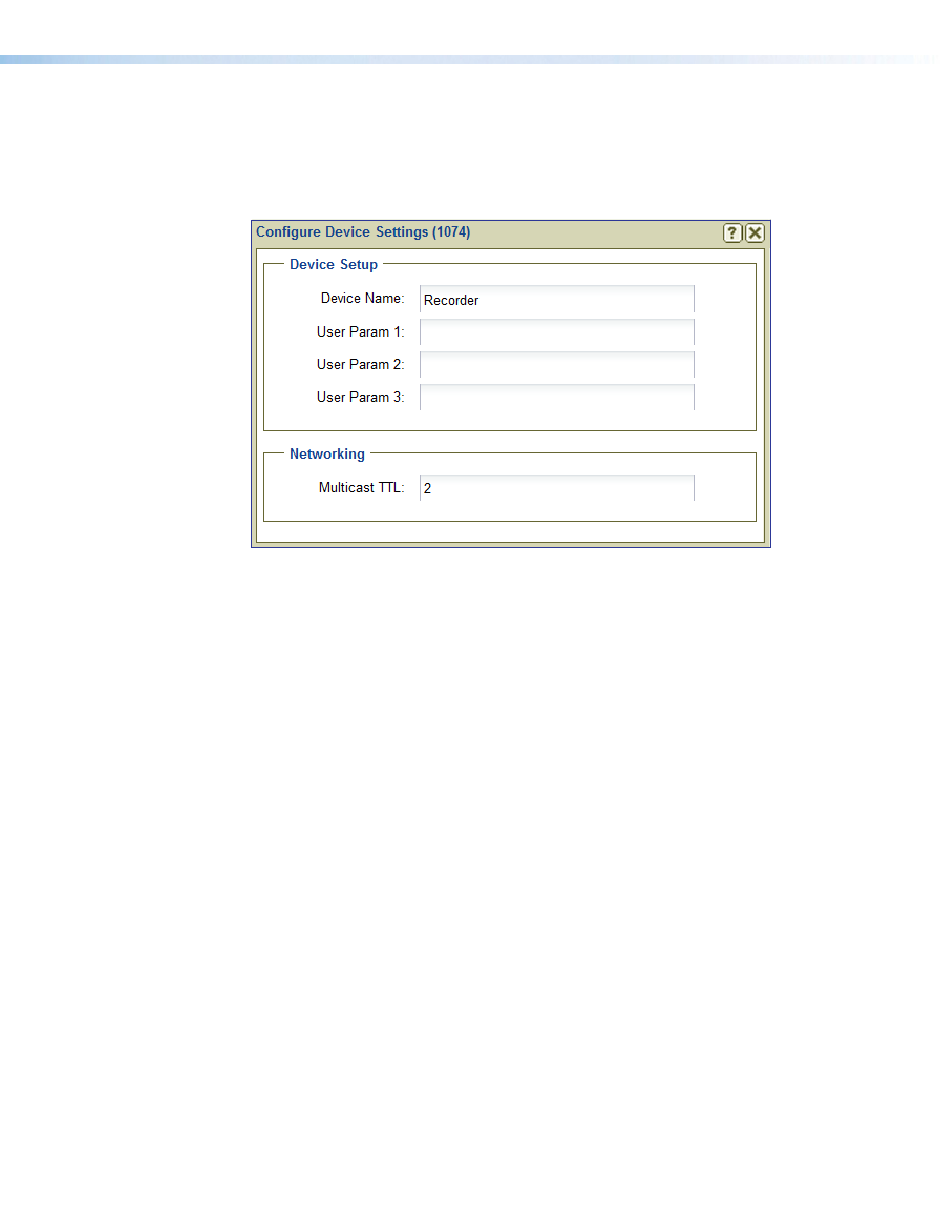

Figure 64.
Device Setup Panel
Device Name — Enter a user defined name for the VN-Matrix Recorder. This is the
1
name that appears in the device list. The name can be letters, numbers, and the
underscore character. Spaces are not allowed.
User Parameters — Up to three user parameters can be entered in these three fields
2
to customize the operation of the recorder (see
Networking Panel
Multicast TTL — Specifies the number of router hops multicast traffic can make
3
between routed domains.
figure 61 on page 82) to open the Configure Device
Recorder Configure Dialog Box
VNM EC 200 • Device Configuration and Control
Device Setup panel on page 68).
84
