Creating a New Display Format (Output Mode)

One issue encountered when using graphic sources with VN-Matrix encoders and decoders
is that the encoder often produces a loop-through image stating it has detected a valid input
mode, but the decoder displays a splash screen stating "No Matching Output Mode."
Use the following procedure to create a custom display format (output mode) that is
automatically selected by the decoder when it sees a corresponding input mode.
NOTE: Before starting this procedure, there must be an active input source connected
1.
2.
3.
4.
5.
6.
to a VN-Matrix 2xx encoder (output modes of the VN-Matrix 3xx are fixed) and the
source format must be correctly configured (displayed properly).
Open a Web browser on the control PC and log into the VNM EC 200 (see
the Web‑based User Interface
Duplicate the Web-based user interface of the VNM EC 200 using a second browser
tab. Leave both browser tabs open as they are required to complete this procedure.
Click the left tab (see figure 146,
VN-Matrix 2xx series decoder from the device list (
checkbox to the left of the decoder row.
1 1
2 2
3 3
4 4

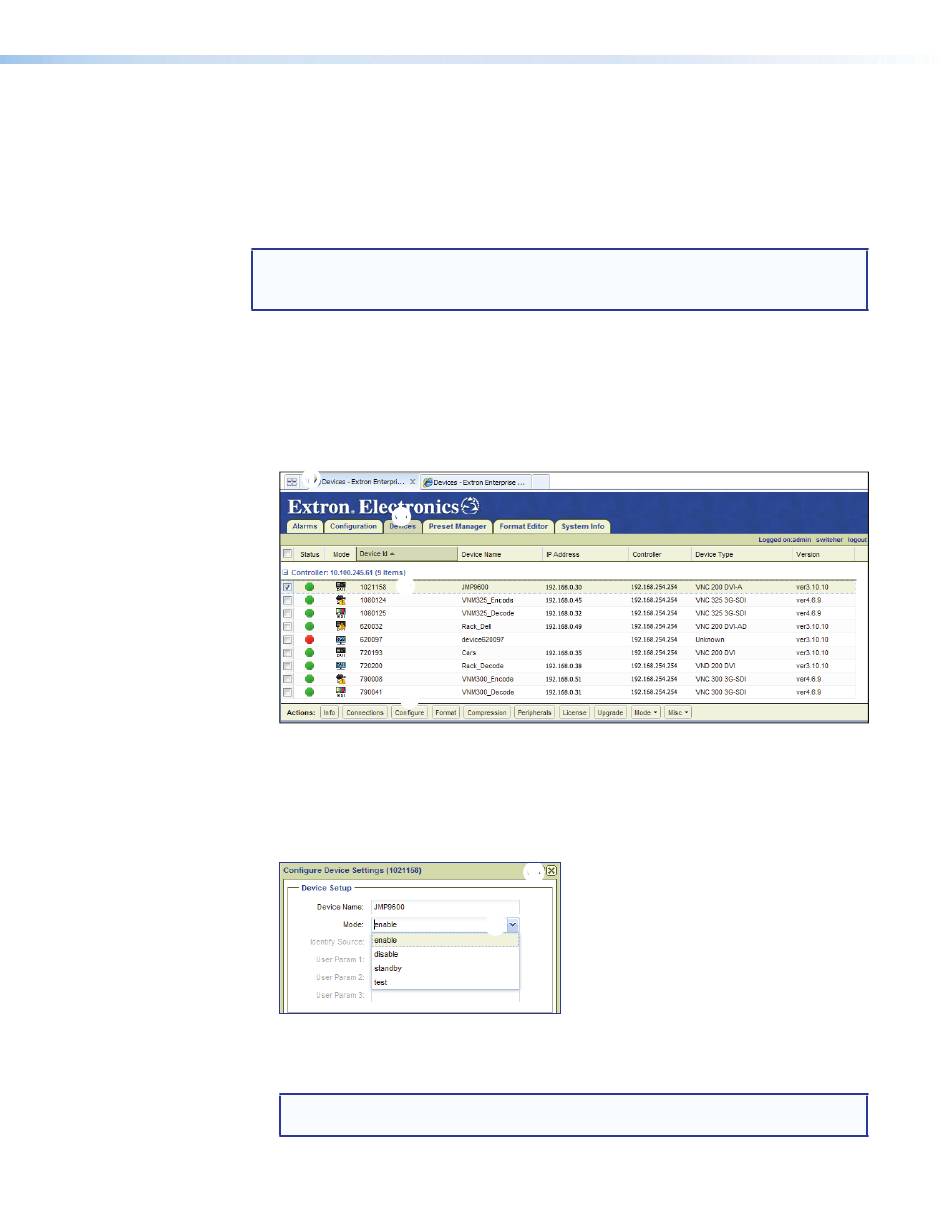

Figure 146. Devices Page
From the Actions menu bar located at the bottom of the Devices page, click
Configure (see figure 146,
opens (see figure 147).
Select enable from the Mode drop-down list (see figure 147,
upper right corner of the dialog box (
Figure 147. Configure Device Settings Dialog Box
Use the Switcher page (see
between the required source format and a decoder.
NOTE: The decoder must have a display connected to the DVI-I Out/Loop
connector.
on page 11 for information on how to log in).
). Select the Devices page (
1
). A checkmark appears in the
3
). The Configure Device Settings dialog box
4
) to close the dialog box.
2
2 2
1 1
Switcher Page on page 92) to create a connection
