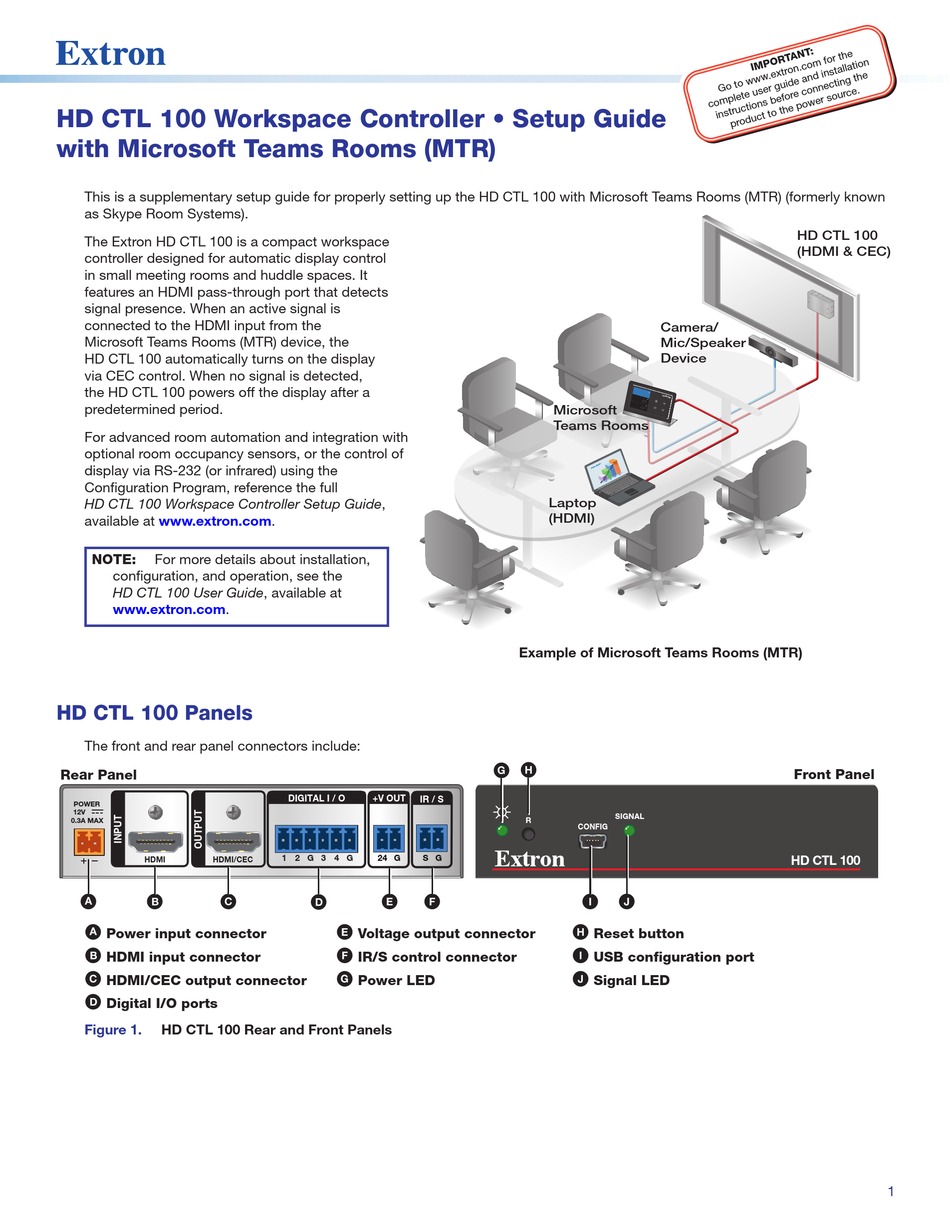

HD CTL 100 Workspace Controller • Setup Guide
with Microsoft Teams Rooms (MTR)
This is a supplementary setup guide for properly setting up the HD CTL 100 with Microsoft Teams Rooms (MTR) (formerly known
as Skype Room Systems).
The Extron HD CTL 100 is a compact workspace
controller designed for automatic display control
in small meeting rooms and huddle spaces. It
features an HDMI pass-through port that detects
signal presence. When an active signal is
connected to the HDMI input from the
Microsoft Teams Rooms (MTR) device, the
HD CTL 100 automatically turns on the display
via CEC control. When no signal is detected,
the HD CTL 100 powers off the display after a
predetermined period.
For advanced room automation and integration with
optional room occupancy sensors, or the control of
display via RS-232 (or infrared) using the
Configuration Program, reference the full
HD CTL 100 Workspace Controller Setup Guide,
available at www.extron.com.
NOTE: For more details about installation,
configuration, and operation, see the
HD CTL 100 User Guide, available at
www.extron.com.

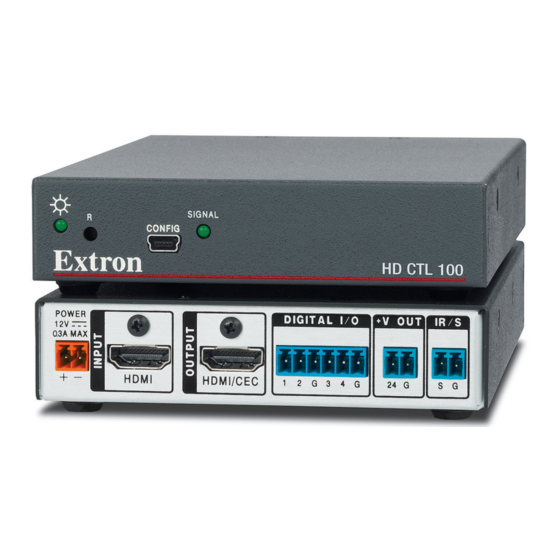

HD CTL 100 Panels
The front and rear panel connectors include:
Rear Panel
POWER
12V
0.3A MAX
HDMI HDMI/CEC
A A B B C C
A
Power input connector
B HDMI input connector
C
HDMI/CEC output connector
D
Digital I/O ports
Figure 1. HD CTL 100 Rear and Front Panels
DIGITAL I / O +V OUT
IR / S
1 2 G 3 4 G S G
24 G
D D E E F F
E
Voltage output connector
F IR/S control connector
G
Power LED
Camera/
Mic/Speaker
Device
Microsoft
Teams Rooms
Laptop
(HDMI)
Example of Microsoft Teams Rooms (MTR)
H H
G
SIGNAL
R
CONFIG
I I J J
H
Reset button
I USB configuration port
J
Signal LED
HD CTL 100
(HDMI & CEC)
log log
itec itec h h
Front Panel
HD CTL 100
1
