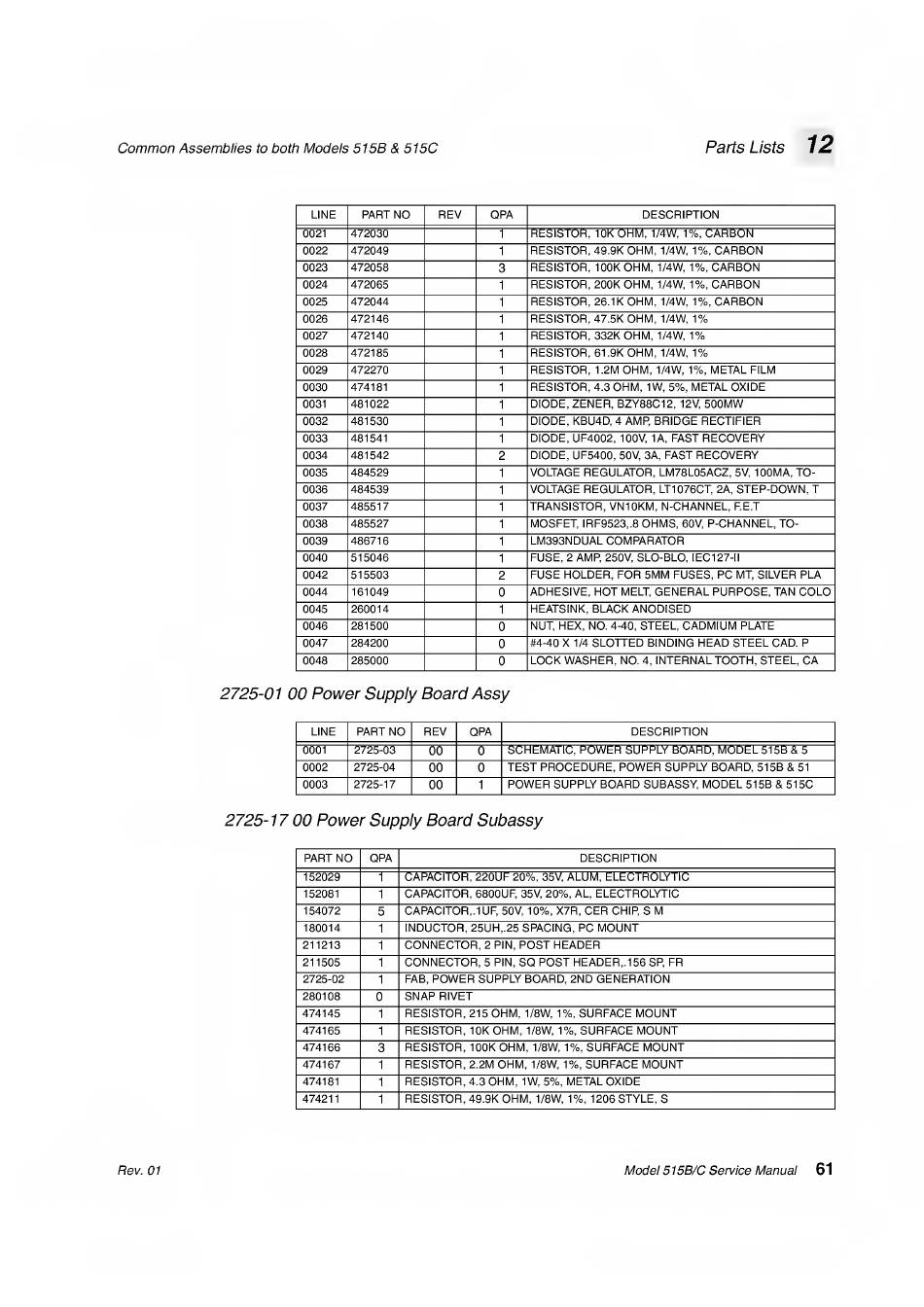

Common Assemblies to both Models 515B & 515C
Parts Lists
12
LINE PART NO REV QPA DESCRIPTION
0021
472030 1
RESISTOR,
10K
OHM,
1/4W, 1%,
CARBON
0022 472049
1
RESISTOR, 49.9K OHM, M4VJ, 1%, CARBON
0023 472058
3
RESISTOR, 100K OHM, MAW, 1%, CARBON
0024 472065
1
RESISTOR, 200K OHM, MAW, 1%, CARBON
0025
472044
1
RESISTOR, 26.1K OHM, MAW, 1%, CARBON
0026 472146
1
RESISTOR, 47.5K OHM, MAW, 1%
0027
472140 1
RESISTOR, 332K OHM, MAW, 1%
0028 472185
1
RESISTOR, 61.9K OHM, MAW, 1%
0029
472270 1
RESISTOR, 1.2M OHM, MAW, 1%, METAL FILM
0030 474181
1
RESISTOR, 4.3 OHM, 1W, 5%, METAL OXIDE
0031
481022
1
DIODE, ZENER, BZY88C12, 12V, 500M\A/
0032 481530
1
DIODE, KBU4D, 4 AMP, BRIDGE RECTIFIER
0033 481541 1 DIODE, UF4002, 100V, 1A, FAST RECOVERY
0034 481542
2
DIODE, UF5400, 50V, 3A, FAST RECOVERY
0035 484529
1
VOLTAGE REGULATOR, LM78L05ACZ, 5V, 100MA, TO-
0036 484539
1
VOLTAGE REGULATOR, LT1076CT, 2A, STEP-DOW/N, T
0037 485517 1 TRANSISTOR, VN10KM, N-CHANNEL, F.E.T
0038
485527
1
MOSFET, IRF9523,.8 OHMS, 60V, P-CHANNEL, TO-
0039 486716
1
LM393NDUAL COMPARATOR
0040 515046 1
FUSE, 2 AMP, 250V, SLO-BLO, IEC127-II
0042 515503
2
FUSE HOLDER, FOR 5MM FUSES, PC MT, SILVER PLA
0044
161049
0
ADHESIVE, HOT MELT, GENERAL PURPOSE, TAN COLO
0045 260014
1
HEATSINK, BLACK ANODISED
0046 281500
0
NUT, HEX, NO. 4-40, STEEL, CADMIUM PLATE
0047 284200
0
#4-40 X 1/4 SLOTTED BINDING HEAD STEEL CAD. P
0048 285000
0
LOCK W/ASHER, NO. 4, INTERNAL TOOTH, STEEL, CA
2725-01 00 Power Supply Board Assy
LINE PART NO REV OPA DESCRIPTION
0001 2725-03
00 0
SCHEMATIC, POWER SUPPLY BOARD, MODEL 515B & 5
0002 2725-04
00 0
TEST PROCEDURE, POWER SUPPLY BOARD, 515B & 51
0003 2725-17
00 1
POWER SUPPLY BOARD SUBASSY, MODEL 515B & 515C
2725-17 00 Power Supply Board Subassy
PART NO OPA DESCRIPTION
152029
1
CAPACITOR, 220UF 20%, 35V, ALUM, ELECTROLYTIC
152081
1
CAPACITOR, 6800UF, 35V, 20%, AL, ELECTROLYTIC
154072
5
CAPACITOR,.1UF, 50V, 10%, X7R, CER CHIP, S M
180014
1 INDUCTOR, 25UH,.25 SPACING, PC MOUNT
211213
1
CONNECTOR, 2 PIN, POST HEADER
211505 1 CONNECTOR, 5 PIN, SO POST HEADER,.156 SP, FR
2725-02
1
FAB, POWER SUPPLY BOARD, 2ND GENERATION
280108
0
SNAP RIVET
474145
1
RESISTOR, 215 OHM, 1/8W, 1%, SURFACE MOUNT
474165 1 RESISTOR, 10K OHM, 1/8W, 1%, SURFACE MOUNT
474166
3
RESISTOR, 100K OHM, 1/8W, 1%, SURFACE MOUNT
474167 1 RESISTOR, 2.2M OHM, 1/8W, 1%, SURFACE MOUNT
474181 1
RESISTOR, 4.3 OHM, 1W, 5%, METAL OXIDE
474211
1
RESISTOR, 49.9K OHM, 1/8W, 1%, 1206 STYLE, S
Rev. 01 Model 515B/C Service Manual
61
