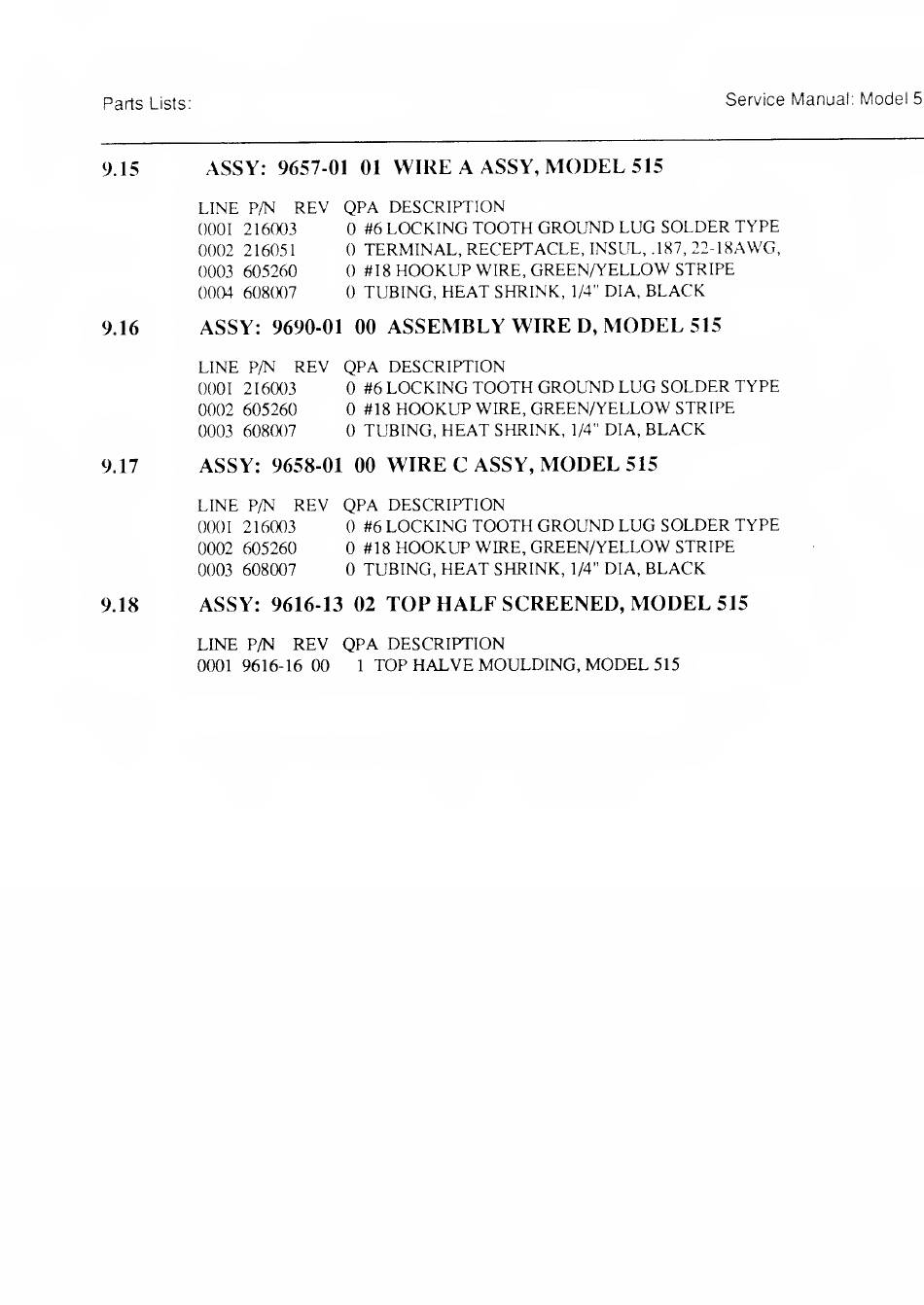

Novametrix Medical Systems 515 Service Manual page 66

Parts Lists:
Service Manual: Model 5
9.15 ASSY: 9657-01 01 WIRE A ASSY, MODEL 515
LINE P/N REV QPA DESCRIPTION
0001 216003 0 #6 LOCKING TOOTH GROUND LUG SOLDER TYPE
0002 2I605I 0 TERMINAL,RECEPTACLE, INSUL, .I87,22-I8AWG,
0003 605260 0 #18 HOOKUP WIRE, GREENA'ELLOW STRIPE
0004 608(X)7 0 TUBING, HEAT SHRINK, 1/4" DIA, BLACK
9.16 ASSY: 9690-01 00 ASSEMBLY WIRE D, MODEL 515
LINE P/N REV QPA DESCRIPTION
0001 216003 0 #6 LOCKING TOOTH GROUND LUG SOLDER TYPE
0002 605260 0 #18 HOOKUP WIRE, GREEN/YELLOW STRIPE
0003 608007 0 TUBING, HEAT SHRINK, 1/4" DIA, BLACK
9.17 ASSY: 9658-01 00 WIRE C ASSY, MODEL 515
LINE P/N REV QPA DESCRIPTION
0001 216003 0 #6 LOCKING TOOTH GROUND LUG SOLDER TYPE
0002 605260 0 #18 HOOKUP WIRE, GREEN/YELLOW STRIPE
0003 608007 0 TUBING, HEAT SHRINK, 1/4" DIA, BLACK
9.18 ASSY: 9616-13 02 TOP HALF SCREENED, MODEL 515
LINE P/N REV QPA DESCRIPTION
0001 9616-16 00 1 TOP HALVE MOULDING, MODEL 515
