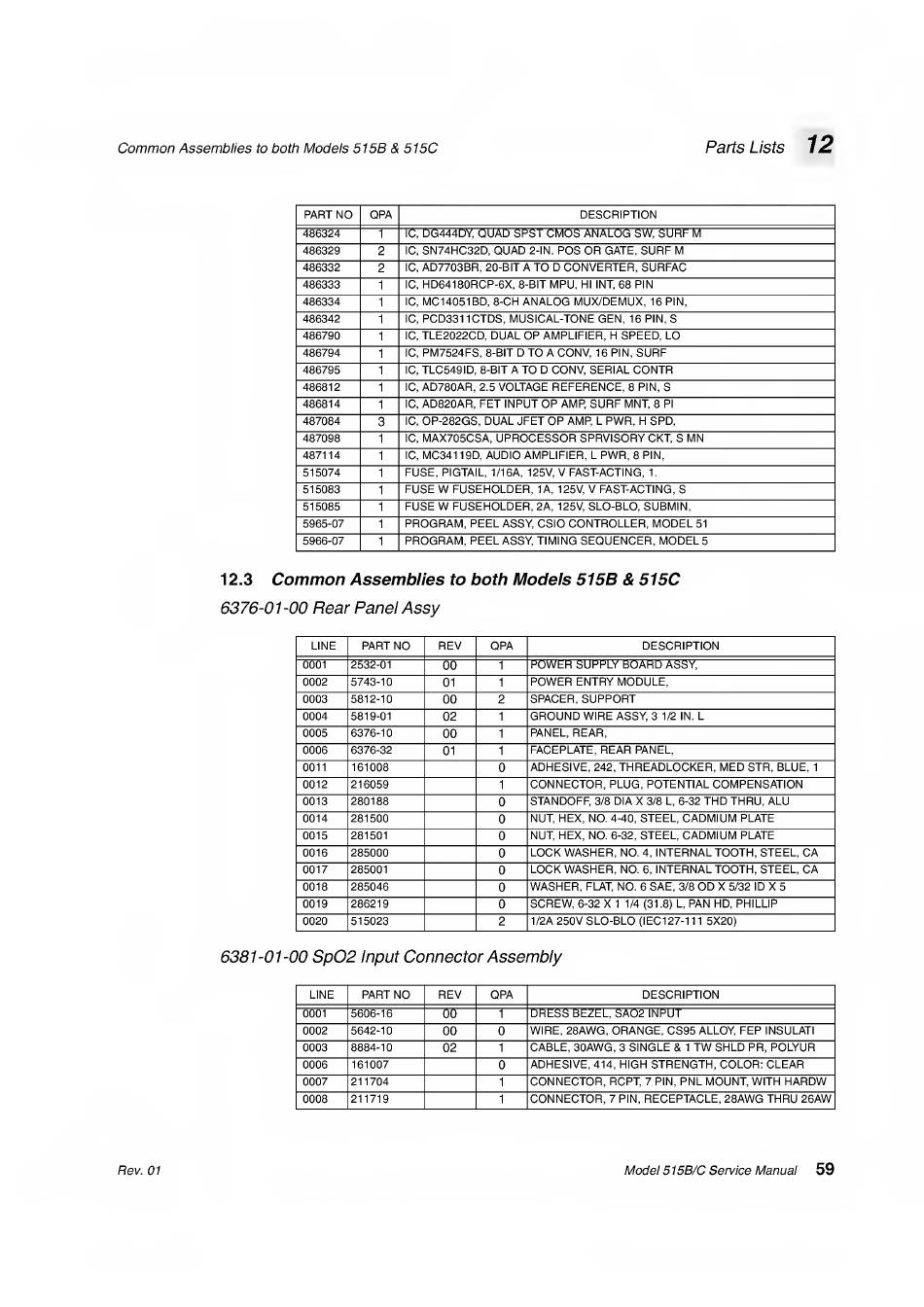

Common Assemblies to both Models 515B & 515C
Parts Lists
12
PART NO QPA DESCRIPTION
486324 1
1C, DG444DY, QUAD SPST CMOS ANALOG SW, SURF M
486329
2
1C, SN74HC32D, QUAD 2-IN. PCS OR GATE, SURF M
486332 2 1C, AD7703BR, 20-BIT A TO D CONVERTER, SURFAC
486333 1 1C, HD64180RCP-6X, 8-BIT MPU, HI INT, 68 PIN
486334 1 1C, MC14051BD, 8-CH ANALOG MUX/DEMUX, 16 PIN,
486342 1 1C, PCD3311CTDS, MUSICAL-TONE GEN, 16 PIN,S
486790
1 1C, TLE2022CD, DUAL OP AMPLIFIER, H SPEED, LO
486794 1 1C, PM7524FS, 8-BIT D TO A CONV, 16 PIN, SURF
486795
1 1C, TLC549ID, 8-BIT A TO D CONV, SERIAL CONTR
486812 1 1C, AD780AR, 2.5 VOLTAGE REFERENCE, 8 PIN, S
486814 1 1C, AD820AR, FET INPUT OP AMR SURF MNT, 8 PI
487084 3 1C, OP-282GS, DUAL JFET OP AMP, L PW/R, H SPD,
487098
1
1C, MAX705CSA, UPROCESSOR SPRVISORY CKT, S MN
487114 1 1C, MC34119D, AUDIO AMPLIFIER, L P\A/R, 8 PIN,
515074
1
FUSE, PIGTAIL, 1/16A, 125V, V FAST-ACTING, 1.
515083 1 FUSE W/ FUSEHOLDER, 1A, 125V, V FAST-ACTING, S
515085
1
FUSE W/ FUSEHOLDER, 2A, 125V, SLO-BLO, SUBMIN,
5965-07 1 PROGRAM, PEEL ASSY, CSIO CONTROLLER, MODEL 51
5966-07 1 PROGRAM, PEEL ASSY, TIMING SEOUENCER, MODEL 5
12.3
Common Assemblies to both Models 515B & 515C
6376-01-00 Rear Panel Assy
LINE PART NO REV OPA DESCRIPTION
0001 2532-01
00 1
POWER SUPPLY BOARD ASSY,
0002
5743-10
01 1
POWER ENTRY MODULE,
0003 5812-10
00 2
SPACER, SUPPORT
0004 5819-01 02 1 GROUND WIRE ASSY, 3 1/2 IN. L
0005 6376-10
00 1
PANEL, REAR,
0006 6376-32
01 1
FACEPLATE, REAR PANEL,
0011 161008 0
ADHESIVE, 242, THREADLOCKER, MED STR, BLUE, 1
0012 216059
1
CONNECTOR, PLUG, POTENTIAL COMPENSATION
0013 280188
0
STANDOFF, 3/8 DIA X 3/8 L, 6-32 THD THRU, ALU
0014 281500
0
NUT, HEX, NO. 4-40, STEEL, CADMIUM PLATE
0015 281501 0
NUT, HEX, NO. 6-32, STEEL, CADMIUM PLATE
0016 285000
0
LOCK WASHER, NO. 4, INTERNAL TOOTH, STEEL, CA
0017
285001
0
LOCK WASHER, NO. 6, INTERNAL TOOTH, STEEL, CA
0018 285046
0
WASHER, FLAT, NO. 6 SAE, 3/8 OD X 5/32 ID X 5
0019 286219
0
SCREW, 6-32 X 1 1/4 (31.8) L, PAN HD, PHILLIP
0020 515023
2
1/2A 250V SLO-BLO (IEC127-111 5X20)
6381-01-00 Sp02 Input Connector Assembly
LINE PART NO REV OPA DESCRIPTION
0001 5606-16 00 1
DRESS BE7EL, SA02 INPUT
0002 5642-10 00 0 WIRE, 28AWG, ORANGE, CS95 ALLOY, FEP INSULATI
0003 8884-10 02 1 CABLE, 30AWG, 3 SINGLE & 1 TW SHLD PR, POLYUR
0006 161007 0 ADHESIVE, 414, HIGH STRENGTH, COLOR: CLEAR
0007 211704 1 CONNECTOR, RCPT, 7 PIN, PNL MOUNT, WITH HARDW
0008 211719
1
CONNECTOR, 7 PIN, RECEPTACLE, 28AWG THRU 26AW
