12

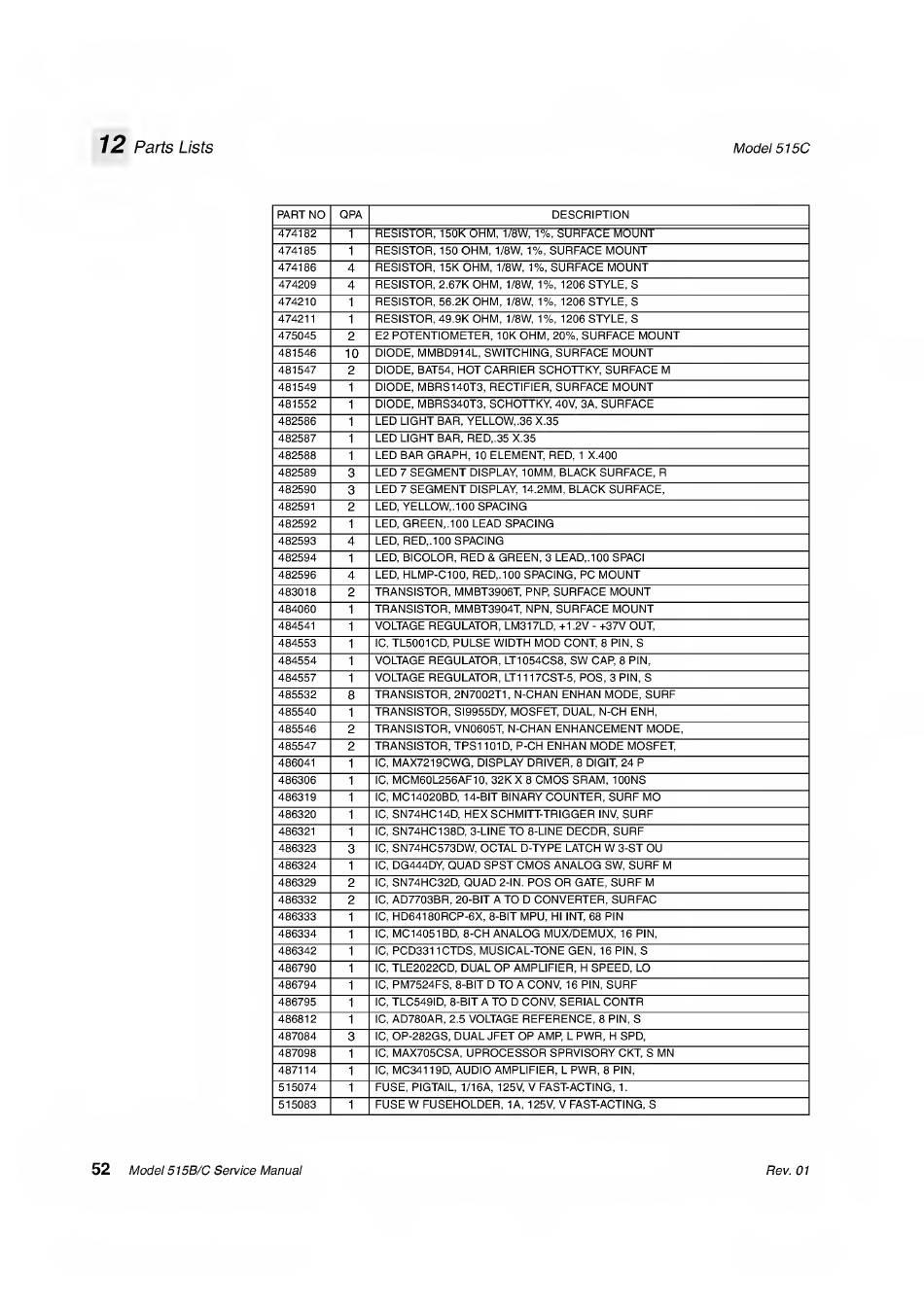

Parts Lists
Model 515C
PART NO QPA DESCRIPTION
474182
1
RESISTOR,
150K
OHM,
1/8W, 1%,
SURFACE MOUNT
474185
1
RESISTOR, 150 OHM, 1/8W, 1%, SURFACE MOUNT
474186
4
RESISTOR, 15K OHM, 1/8W, 1%, SURFACE MOUNT
474209
4
RESISTOR, 2.67K OHM, 1/8W, 1%, 1206 STYLE, S
474210 1
RESISTOR, 56.2K OHM, 1/8W, 1%, 1206 STYLE, S
474211
1
RESISTOR, 49.9K OHM, 1/8W, 1%, 1206 STYLE, S
475045 2
E2 POTENTIOMETER, 10K OHM, 20%, SURFACE MOUNT
481546
10
DIODE, MMBD914L, SWITCHING, SURFACE MOUNT
481547
2
DIODE, BAT54, HOT CARRIER SCHOTTKY, SURFACE M
481549
1
DIODE, MBRS140T3, RECTIFIER, SURFACE MOUNT
481552
1
DIODE, MBRS340T3, SCHOTTKY, 40V, 3A, SURFACE
482586
1
LED LIGHT BAR, YELLOW,.36 X.35
482587 1 LED LIGHT BAR, RED,.35 X.35
482588 1
LED BAR GRAPH, 10 ELEMENT, RED, 1 X.400
482589
3
LED 7 SEGMENT DISPLAY, 10MM, BLACK SURFACE, R
482590
3
LED 7 SEGMENT DISPLAY, 14.2MM, BLACK SURFACE,
482591 2 LED, YELLOW,.100 SPACING
482592
1 LED, GREEN,.100 LEAD SPACING
482593
4
LED, RED,.100 SPACING
482594
1 LED, BICOLOR, RED & GREEN, 3 LEAD,.100 SPACI
482596
4
LED, HLMP-C100, RED,.100 SPACING, PC MOUNT
483018 2
TRANSISTOR, MMBT3906T, PNP, SURFACE MOUNT
484060
1
TRANSISTOR, MMBT3904T, NPN, SURFACE MOUNT
484541
1
VOLTAGE REGULATOR, LM317LD, +1.2V - +37V OUT,
484553
1
1C, TL5001CD, PULSE WIDTH MOD CONT, 8 PIN, S
484554 1 VOLTAGE REGULATOR, LT1054CS8, SW CAP, 8 PIN,
484557
1 VOLTAGE REGULATOR, LT1117CST-5, POS, 3 PIN, S
485532
8
TRANSISTOR, 2N7002T1, N-CHAN ENHAN MODE, SURF
485540
1
TRANSISTOR, SI9955DY, MOSFET, DUAL, N-CH ENH,
485546 2 TRANSISTOR, VN0605T, N-CHAN ENHANCEMENT MODE,
485547
2
TRANSISTOR, TPS1101D, P-CH ENHAN MODE MOSFET,
486041
1
1C, MAX7219CWG, DISPLAY DRIVER, 8 DIGIT, 24 P
486306 1 1C, MCM60L256AF10, 32K X 8 CMOS SRAM, 100NS
486319
1
1C, MC14020BD, 14-BIT BINARY COUNTER, SURF MO
486320 1
1C, SN74HC14D, HEX SCHMITT-TRIGGER INV, SURF
486321
1
1C, SN74HC138D, 3-LINE TO 8-LINE DECDR, SURF
486323
3
1C, SN74HC573DW, OCTAL D-TYPE LATCH W 3-ST OU
486324
1
1C, DG444DY, OUAD SPST CMOS ANALOG SW, SURF M
486329 2 1C, SN74HC32D, QUAD 2-IN. POS OR GATE, SURF M
486332
2
1C, AD7703BR, 20-BIT A TO D CONVERTER, SURFAC
486333
1
1C, HD64180RCP-6X, 8-BIT MPU, HI INT, 68 PIN
486334
1
1C, MC14051BD, 8-CH ANALOG MUX/DEMUX, 16 PIN,
486342 1 1C, PCD3311CTDS, MUSICAL-TONE GEN, 16 PIN, S
486790 1
1C, TLE2022CD, DUAL OP AMPLIFIER, H SPEED, LO
486794
1
1C, PM7524FS, 8-BIT D TO A CONV, 16 PIN, SURF
486795 1
1C, TLC549ID, 8-BIT A TO D CONV, SERIAL CONTR
486812
1
1C, AD780AR, 2.5 VOLTAGE REFERENCE, 8 PIN, S
487084
3
1C, OP-282GS, DUAL JFET OP AMP, L PWR, H SPD,
487098
1
1C, MAX705CSA, UPROCESSOR SPRVISORY CKT, S MN
487114
1
1C, MC34119D, AUDIO AMPLIFIER, L PWR, 8 PIN,
515074
1
FUSE, PIGTAIL, 1/16A, 125V, V FAST-ACTING, 1.
515083 1 FUSE W FUSEHOLDER, 1A, 125V, V FAST-ACTING, S
52
Model 515B/C Service Manual Rev. 01
