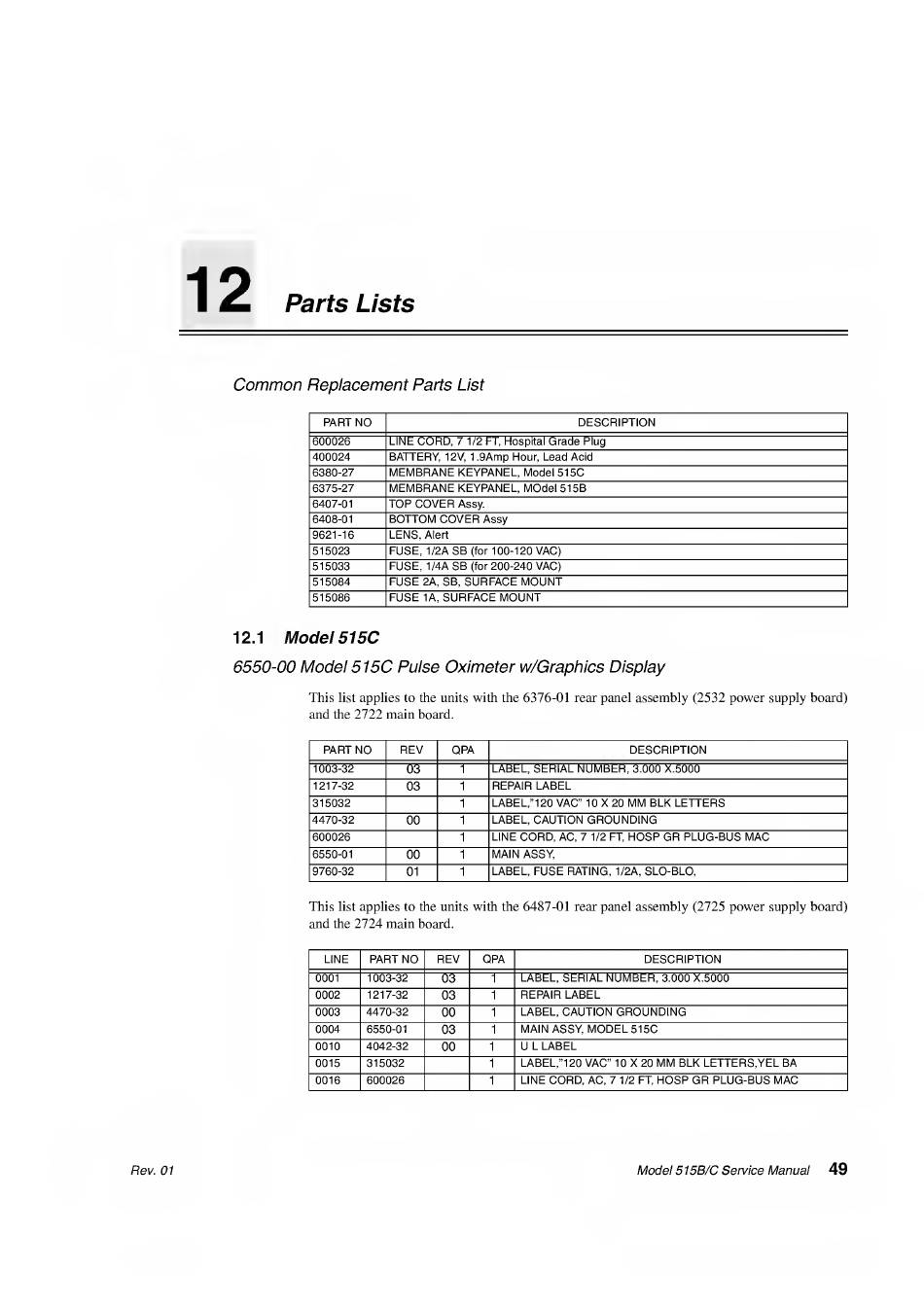

Parts Lists
Common Replacement Parts List
PART NO DESCRIPTION
600026 LINE CORD, 7 1/2 FT, Hospital Grade Plug
400024 BATTERY, 12V, 1.9Amp Hour, Lead Acid
6380-27 MEMBRANE KEYPANEL, Model 5150
6375-27 MEMBRANE KEYPANEL, MOdel 515B
6407-01 TOP COVER Assy.
6408-01 BOTTOM COVER Assy
9621-16 LENS, Alert
515023
FUSE, 1/2A SB (for 100-120 VAC)
515033 FUSE, 1/4A SB (for 200-240 VAC)
515084 FUSE 2A, SB, SURFACE MOUNT
515086 FUSE 1A, SURFACE MOUNT
12.1
Model 515C
6550-00 Model 515C Pulse Oximeter w/Graphics Display
This list applies to the units with the 6376-01 rear panel assembly (2532 power supply board)
and the 2722 main board.
PART NO REV OPA DESCRIPTION
1003-32
03
1 LABEL, SERIAL NUMBER, 3.000 X.5000
1217-32
03 1
REPAIR LABEL
315032
1
LABEL,"120 VAC" 10 X 20 MM BLK LETTERS
4470-32
00 1
LABEL, CAUTION GROUNDING
600026 1 LINE CORD, AC, 7 1/2 FT, HOSP GR PLUG-BUS MAC
6550-01 00 1
MAIN ASSY,
9760-32
01 1
LABEL, FUSE RATING, 1/2A, SLO-BLO,
This list applies to the units with the 6487-01 rear panel assembly (2725 power supply board)
and the 2724 main board.
LINE PART NO REV OPA DESCRIPTION
0001 1003-32
03
1 LABEL, SERIAL NUMBER, 3.000 X.5000
0002 1217-32
03 1
REPAIR LABEL
0003
4470-32
00
1
LABEL, CAUTION GROUNDING
0004 6550-01
03 1
MAIN ASSY, MODEL 515C
0010 4042-32
00
1 U L LABEL
0015 315032
1
LABEL,"120 VAC" 10 X 20 MM BLK LETTERS,YEL BA
0016 600026 1 LINE CORD, AC, 7 1/2 FT, HOSP GR PLUG-BUS MAC
