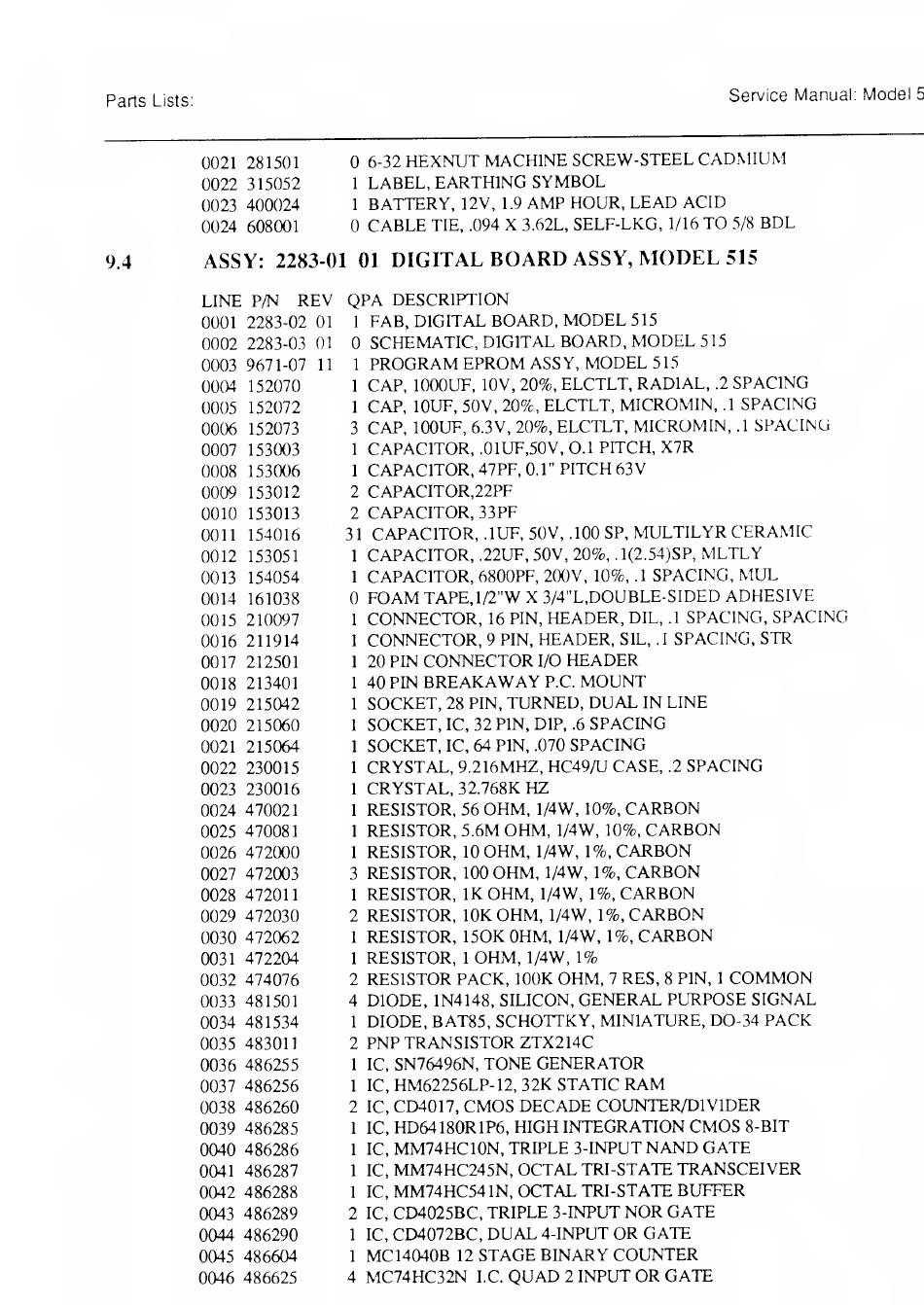

Novametrix Medical Systems 515 Service Manual page 60

Parts Lists:
Service Manual: Model 5
0 6-32 HEXNUT MACHINE SCREW-STEEL CADMIUM
1 LABEL, EARTHING SYMBOL
1 BATTERY, I2V, 1.9 AMP HOUR, LEAD ACID
0 CABLE TIE, .094 X 3.62L, SELF-LKG, 1/16 TO 5/8 BDL
9.4 ASSY: 2283-01 01 DIGITAL BOARD ASSY, MODEL 515
LINE P/N REV QPA DESCRIPTION
0001 2283-02 01 1 FAB, DIGITAL BOARD, MODEL 515
0002 2283-03 01 0 SCHEMATIC, DIGITAL BOARD, MODEL 515
0003 9671-07 11 1 PROGRAM EPROM ASSY, MODEL 515
0004 152070 I CAP, lOOOUF, lOV, 20%, ELCTLT, RADIAL, .2 SPACING
0005 152072 1 CAP, lOUF, 50V, 20%, ELCTLT, MICROMIN, .1 SPACING
0006 152073 3 CAP, lOOUF, 6.3V, 20%, ELCTLT, MICROMIN. .1 SPACING
0007 153003 1 CAPACITOR, .01UF,50V, 0.1 PITCH, X7R
0008 153006 1 CAPACITOR, 47PF, 0.1 "PITCH 63 V
0009 153012 2 CAPACITOR,22PF
0010 153013 2 CAPACITOR, 33PF
0011 154016 31 CAPACITOR, .lUF, 50V, .100 SP.MULTILYR CERAMIC
0012 153051 1 CAPACITOR, .22UF, 50V, 20%, .1(2.54)SP,MLTLY
0013 154054 1 CAPACITOR, 6800PF, 200V. 10%, .1 SPACING, MUL
0014 161038 0 FOAM TAPE,1/2"W X 3/4"L,DOUBLE-SIDED ADHESIVE
0015 210097 1 CONNECTOR, 16 PIN, HEADER. DIL, .1 SPACING, SPACING
0016 211914 1 CONNECTOR, 9 PIN, HEADER, SIL, .1 SPACING, STR
0017 212501 1 20 PIN CONNECTOR I/O HEADER
0018 213401 1 40 PIN BREAKAWAY P.C. MOUNT
0019 215042 1 SOCKET, 28 PIN, TURNED, DUAL IN LINE
0020 215060 1 SOCKET, IC, 32 PIN, DIP, .6 SPACING
0021 215064 1 SOCKET, IC, 64 PIN, .070 SPACING
0022 230015 1 CRYSTAL, 9.216MHZ, HC49/U CASE, .2 SPACING
0023 230016 1 CRYSTAL, 32.768K HZ
0024 470021 1 RESISTOR, 56 OHM, 1/4W, 10%, CARBON
0025 470081 1 RESISTOR, 5.6M OHM, 1/4W, 10%, CARBON
0026 472000 1 RESISTOR, 10 OHM, 1/4W, 1%, CARBON
0027 472003 3 RESISTOR, 100 OHM, 1/4W, 1%, CARBON
0028 472011 1 RESISTOR, IK OHM, 1/4W, 1%, CARBON
0029 472030 2 RESISTOR, lOK OHM, 1/4W, 1%, CARBON
0030 472062 1 RESISTOR, 150K OHM, 1/4W, 1%, CARBON
0031 472204 1 RESISTOR, 1 OHM, 1/4W, 1%
0032 474076 2 RESISTOR PACK, lOOK OHM, 7 RES, 8 PIN, 1 COMMON
0033 481501 4 DIODE, 1N4148, SILICON, GENERAL PURPOSE SIGNAL
0034 481534 1 DIODE, BAT85, SCHOTTKY, MINIATURE, DO-34 PACK
0035 483011 2 PNP TRANSISTOR ZTX214C
0036 486255 1 IC, SN76496N, TONE GENERATOR
0037 486256 1 IC, HM62256LP-12, 32K STATIC RAM
0038 486260 2 IC, CD4017, CMOS DECADE COUNTER/DIVIDER
0039 486285 1 IC, HD64180R1P6, HIGH INTEGRATION CMOS 8-BIT
0040 486286 1 IC, MM74HC10N, TRIPLE 3-INPUT NAND GATE
0041 486287 1 IC, MM74HC245N, OCTAL TRI-STATE TRANSCEIVER
0042 486288 1 IC, MM74HC54 IN, OCTAL TRI-STATE BUFFER
0043 486289 2 IC, CD4025BC, TRIPLE 3-INPUT NOR GATE
0044 486290 1 IC, CD4072BC, DUAL 4-INPUT OR GATE
0045 486604 1 MC14040B 12 STAGE BINARY COUNTER
0046 486625 4 MC74HC32N I.C. QUAD 2 INPUT OR GATE
0021 281501
0022 315052
0023 400024
0024 608001
