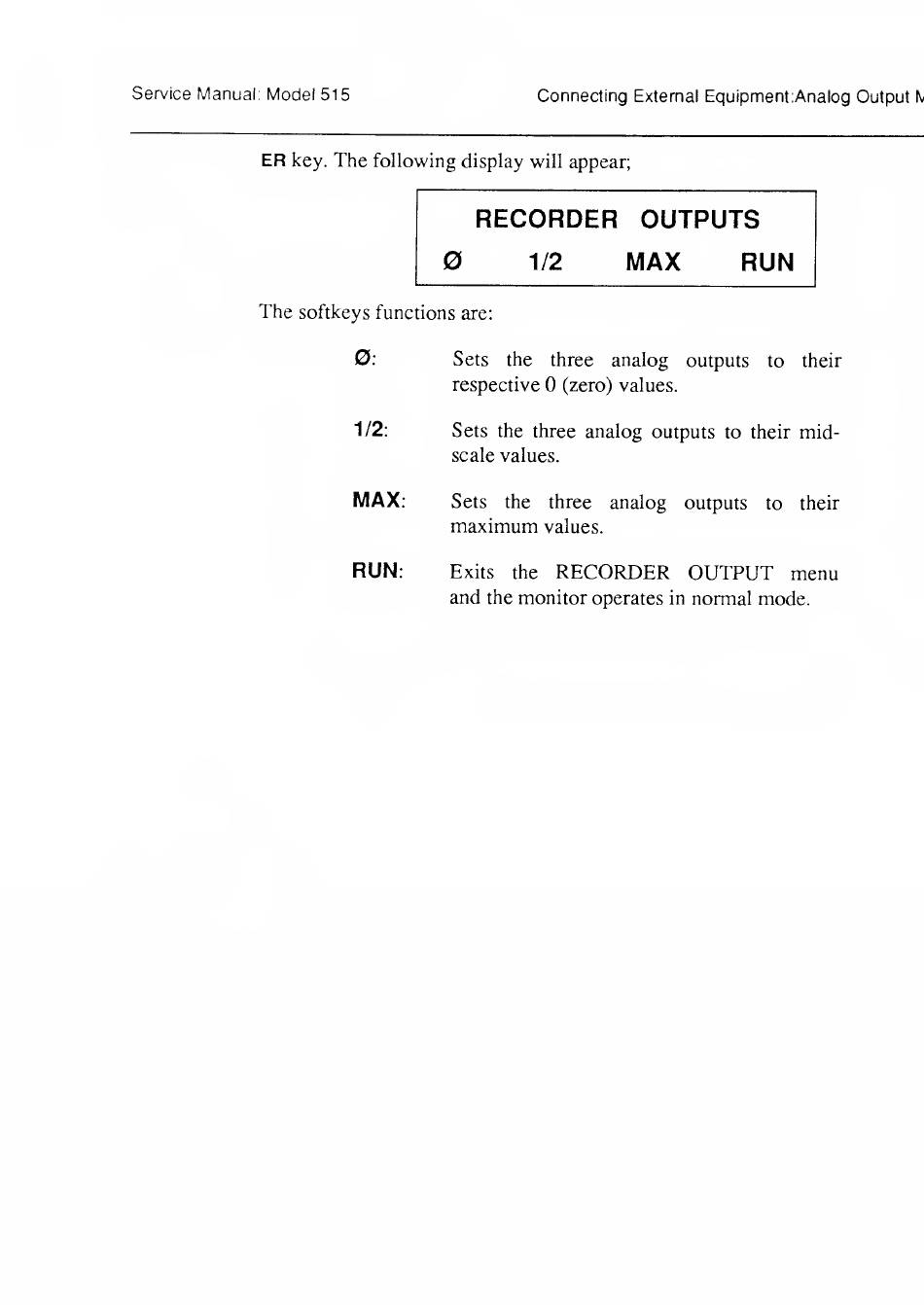

Service Manual: Model 515
Connecting External Equipment:Analog Output
U
ER key. The following display will appear;
RECORDER OUTPUTS
0
1/2
MAX
RUN
The softkeys functions are:
0:
Sets
the
three
analog
outputs
to
their
respective 0 (zero) values.
1/2:
Sets the three analog outputs to their mid¬
scale values.
MAX:
Sets
the
three
analog
outputs
to
their
maximum values.
RUN:
Exits
the
RECORDER
OUTPUT
menu
and the monitor operates in normal mode.
