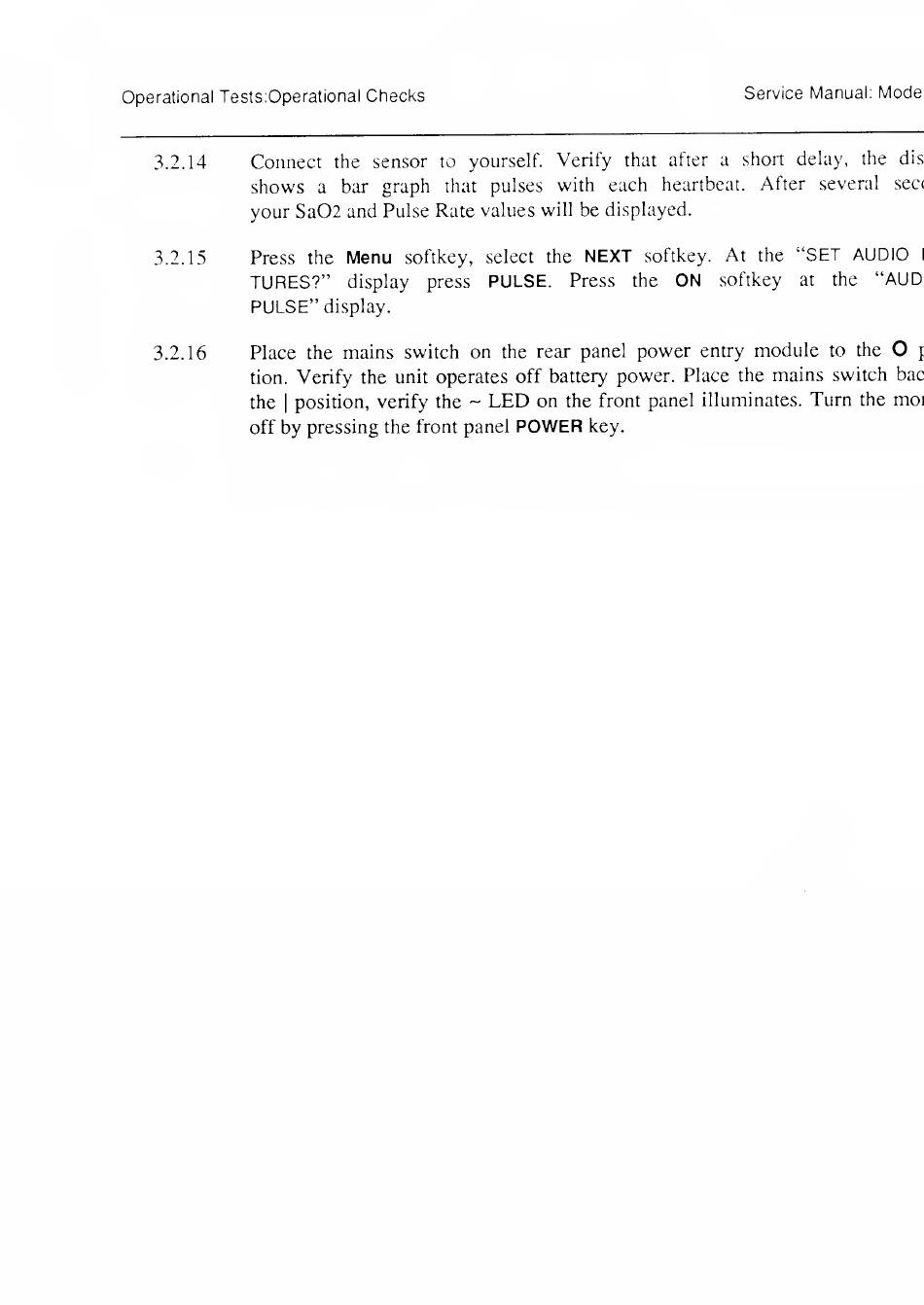

Operational Tests:Operational Checks
Service Manual: Model
3.2.14 Connect the sensor to yourself. Verify that alter a short delay, the dis
shows a bar graph that pulses with each heartbeat. After several sect
your Sa02 and Pulse Rate values will be displayed.
3.2.15 Press the
Menu
softkey, select the
NEXT
softkey. At the "SET AUDIO F
TUBES?" display press
PULSE.
Press the
ON
softkey at the "AUDI
PULSE" display.
3.2.16 Place the mains switch on the rear panel power entry module to the
O
p
tion. Verify the unit operates off battery power. Place the mains switch bac
the I position, verify the ~ LED on the front panel illuminates. Turn the mot
off by pressing the front panel
POWER
key.
