Assembly and Disassembnly:Disassembly
Service Manual: Model
5.0 Assembly and Disassembly
5.1 Introduction
This section outlines the configuration of the different assemblies wh
make up the Model 515. Disassembly of the monitor should not be perforn
unless necessary, and only by qualified service personnel.
5.2 Disassembly
Before disassembling the Model 515 Pulse Oximeter ensure that the i
is off and the line cord is removed to avoid possibilities of electrical shock. "
internal electronics of the Model 515 contain static sensitive devices, when
er handling the internal assemblies be sure to follow proper grounding pro
dures.

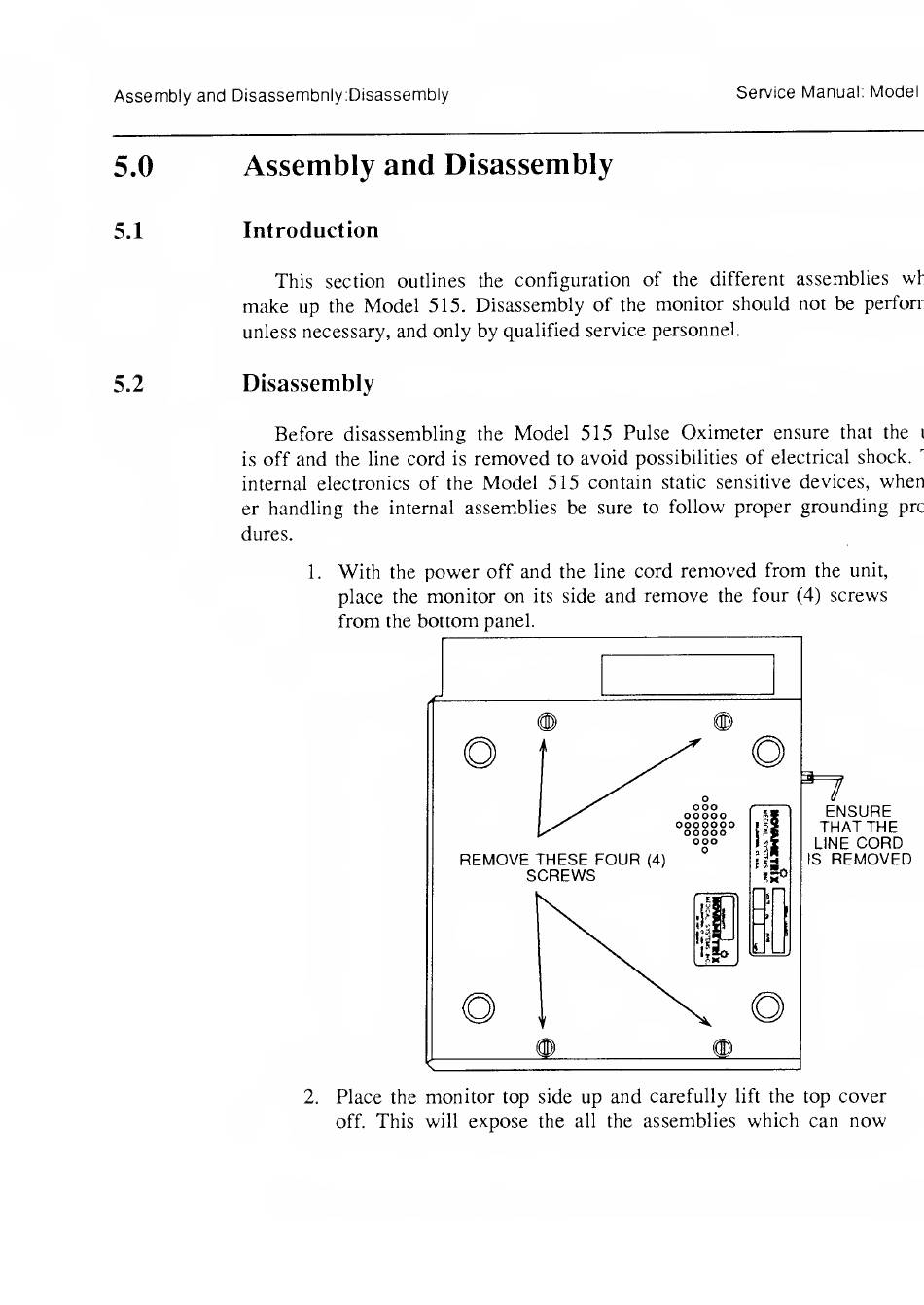

1. With the power off and the line cord removed from the unit,
place the monitor on its side and remove the four (4) screws
from the bottom panel.
2. Place the monitor top side up and carefully lift the top cover
off. This will expose the all the assemblies which can now
