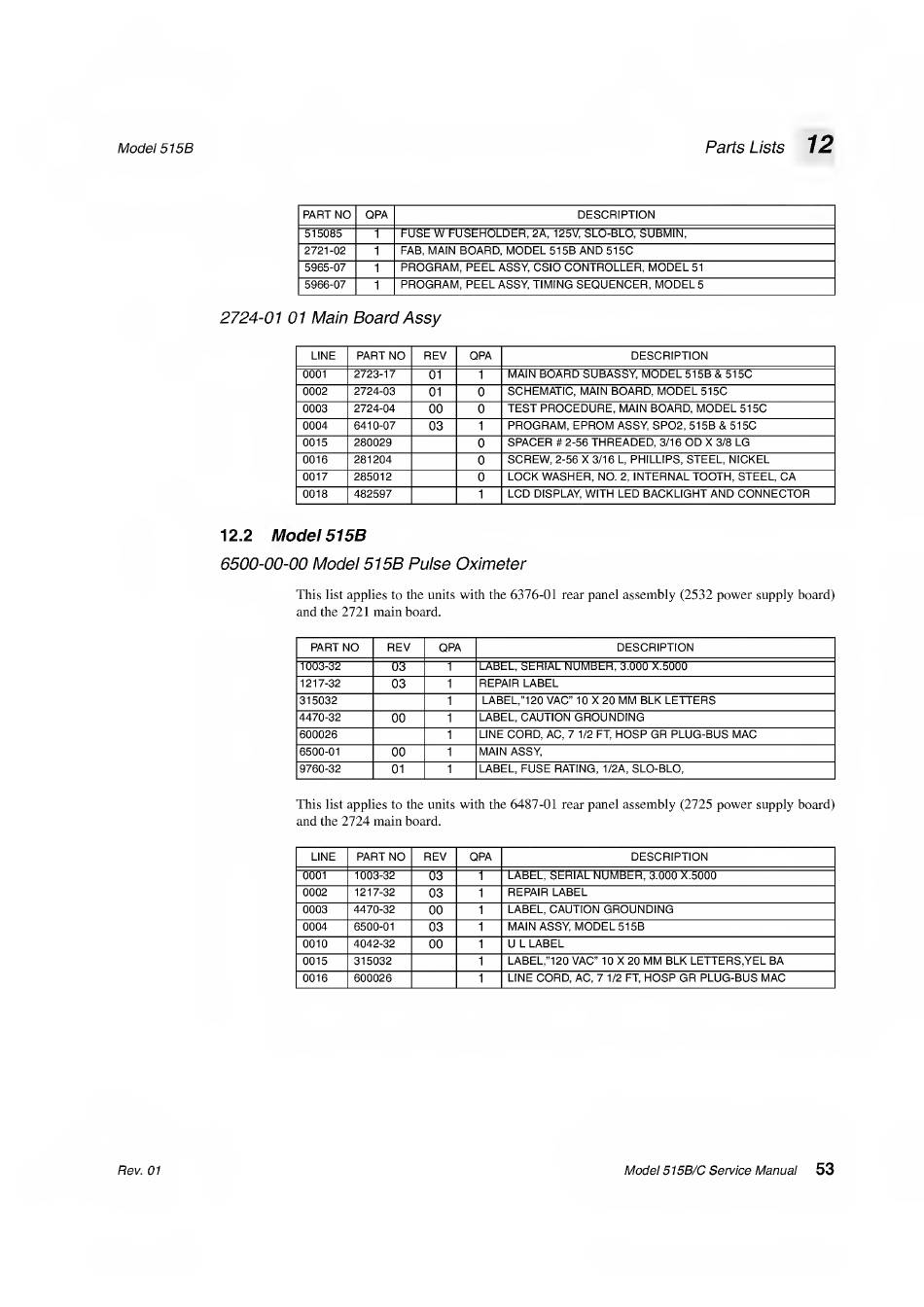

Novametrix Medical Systems 515 Service Manual page 83

Model 515B
Parts Lists
12
PART NO QPA DESCRIPTION
515085
1
FUSE W FUSEHOLDER, 2A,
125V,
SLO-BLO, SUBMIN,
2721-02
1
FAB, MAIN BOARD, MODEL 515B AND 5150
5965-07 1 PROGRAM, PEEL ASSY, CSIO CONTROLLER, MODEL 51
5966-07 1 PROGRAM, PEEL ASSY, TIMING SEOUENCER, MODEL 5
2724-01 01 Main Board Assy
LINE PART NO REV OPA DESCRIPTION
0001 2723-17
01 1
MAIN BOARD SUBASSY MODEL 515B & 515C
0002
2724-03
01 0
SCHEMATIC, MAIN BOARD, MODEL 5150
0003 2724-04
00 0
TEST PROCEDURE, MAIN BOARD, MODEL 5150
0004 6410-07 03 1 PROGRAM, EPROM ASSY, SP02, 515B & 5150
0015 280029
0
SPACER # 2-56 THREADED, 3/16 CD X 3/8 LG
0016
281204
0
SCREW/, 2-56 X 3/16 L, PHILLIPS, STEEL, NICKEL
0017 285012
0
LOCK W/ASHER, NO. 2, INTERNAL TOOTH, STEEL, CA
0018 482597 1 LCD DISPLAY, W/ITH LED BACKLIGHT AND CONNECTOR
12.2
Model 515B
6500-00-00 Modei 515B Puise Oximeter
This list applies to the units with the 6376-01 rear panel assembly (2532 power supply board)
and the 2721 main board.
PART NO REV QPA DESCRIPTION
1003-32
03 1
LABEL, SERIAL NUMBER, 3.000 X.5000
1217-32 03 1 REPAIR LABEL
315032
1
LABEL,"120 VAC" 10 X 20 MM BLK LETTERS
4470-32 00 1 LABEL, CAUTION GROUNDING
600026
1
LINE CORD, AC, 7 1/2 FT, HOSP GR PLUG-BUS MAC
6500-01 00 1 MAIN ASSY,
9760-32 01
1
LABEL, FUSE RATING, 1/2A, SLO-BLO,
This list applies to the units with the 6487-01 rear panel assembly (2725 power supply board)
and the 2724 main board.
LINE PART NO REV QPA DESCRIPTION
0001
1003-32 03 1
LABEL, SERIAL NUMBER,
3.000 X.5000
0002 1217-32 03 1 REPAIR LABEL
0003
4470-32
00
1 LABEL, CAUTION GROUNDING
0004 6500-01 03
1
MAIN ASSY, MODEL 515B
0010
4042-32 00 1 U L LABEL
0015 315032 1 LABEL,"120 VAC" 10 X 20 MM BLK LETTERS,YEL BA
0016 600026
1
LINE CORD, AC, 7 1/2 FT, HOSP GR PLUG-BUS MAC
Rev. 01 Model 515B/C Service Manual
53
