Service Manual: Model 515
Maintenance Schedule:Operational T

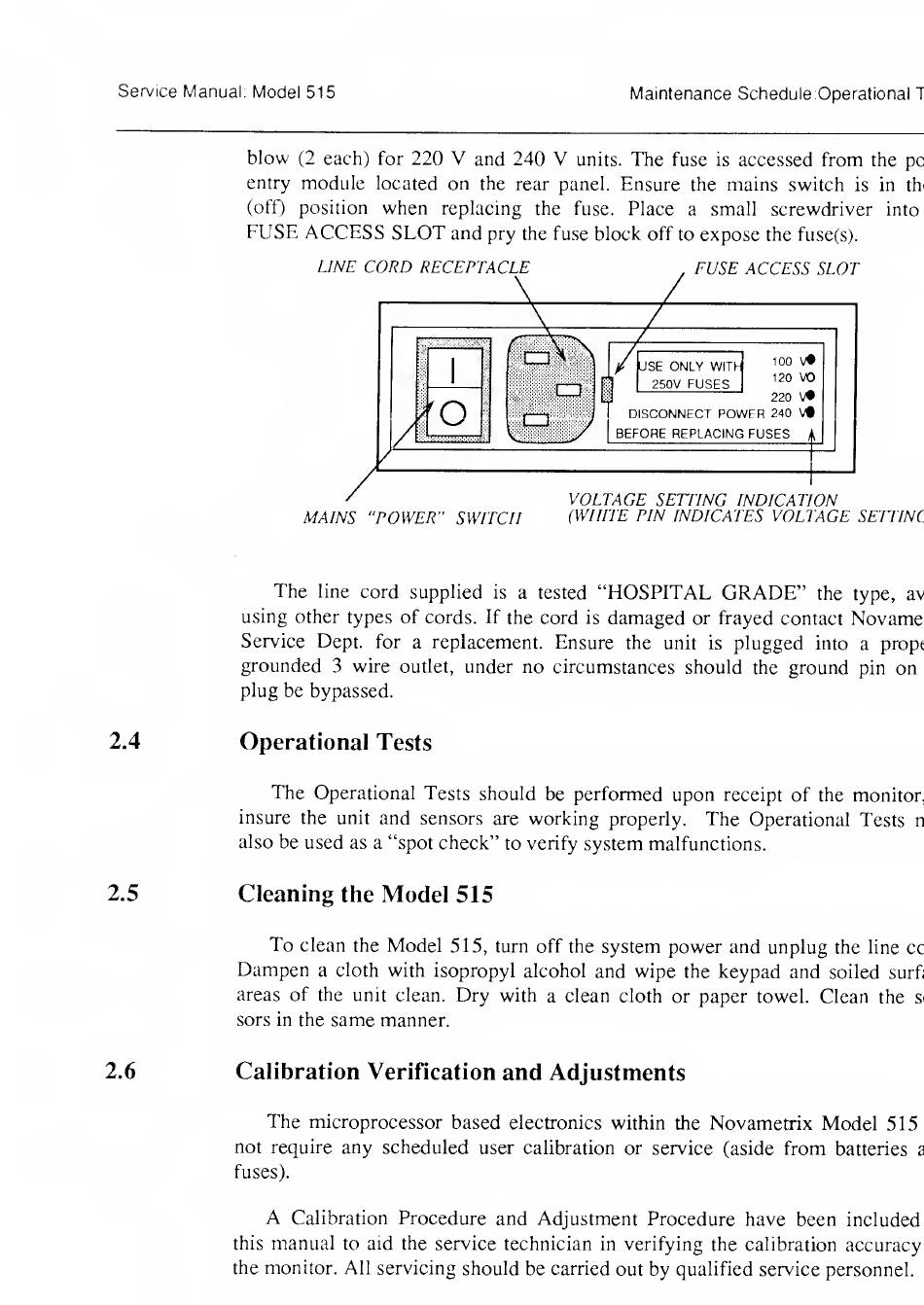

blow (2 each) for 220 V and 240 V units. The fuse is accessed from the po
entry module located on the rear panel. Ensure the mains switch is in th(
(off) position when replacing the fuse. Place a small screwdriver into
FUSE ACCESS SLOT and pry the fuse block off to expose the fuse(s).
MAINS "POWER" SWITCH (WHITE PIN INDICATES VOLTAGE SEITINC
The line cord supplied is a tested "HOSPITAL GRADE" the type, av
using other types of cords. If the cord is damaged or frayed contact Novamei
Service Dept, for a replacement. Ensure the unit is plugged into a prope
grounded 3 wire outlet, under no circumstances should the ground pin on
plug be bypassed.
2.4 Operational Tests
The Operational Tests should be performed upon receipt of the monitor,
insure the unit and sensors are working properly. The Operational Tests n
also be used as a "spot check" to verify system malfunctions.
2.5 Cleaning the Model 515
To clean the Model 515, turn off the system power and unplug the line co
Dampen a cloth with isopropyl alcohol and wipe the keypad and soiled surft
areas of the unit clean. Dry with a clean cloth or paper towel. Clean the
S(
sors in the same manner.
2.6 Calibration Verification and Adjustments
The microprocessor based electronics within the Novametrix Model 515
not require any scheduled user calibration or service (aside from batteries a
fuses).
A Calibration Procedure and Adjustment Procedure have been included
this manual to aid the service technician in verifying the calibration accuracy
the monitor. All servicing should be carried out by qualified service personnel.
