Calibration and Adjustments:Adjuslment Procedure
Service Manual: Model

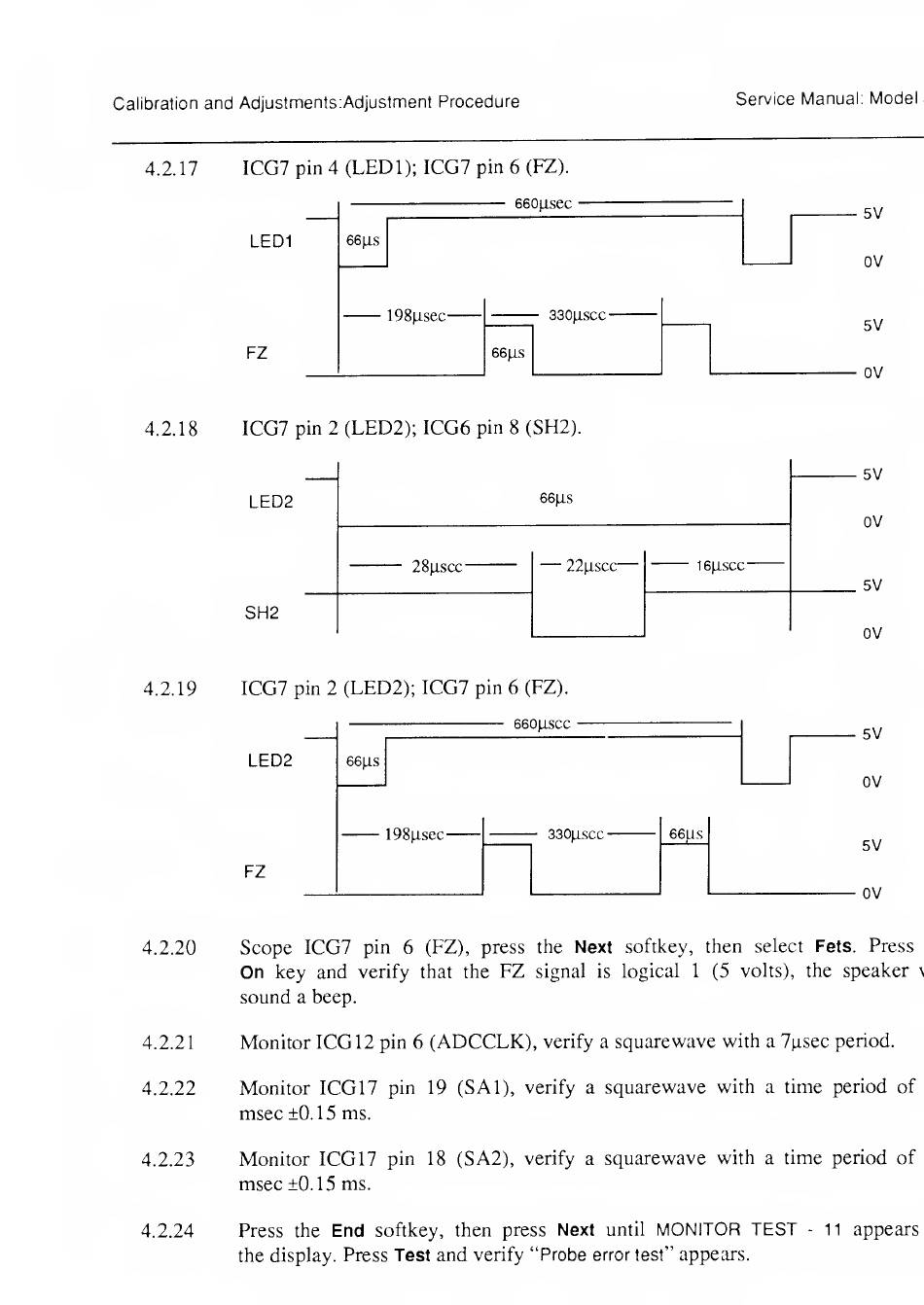

4.2.17 ICG7 pin 4 (LEDl); ICG7 pin 6 (FZ).
4.2.18 ICG7 pin 2 (LED2); ICG6 pin 8 (SH2).
4.2.19 ICG7 pin 2 (LED2); ICG7 pin 6 (EZ).
4.2.20
Scope ICG7 pin 6 (EZ), press the
Next
softkey, then select
Fets.
Press
On
key and verify that the EZ signal is logical 1 (5 volts), the speaker v
sound a beep.
4.2.21
Monitor ICG12 pin 6 (ADCCLK), verify a squarewave with a 7p,sec period.
4.2.22
Monitor ICG17 pin 19 (SAl), verify a squarewave with a time period of
msec ±0.15 ms.
4.2.23
Monitor ICG17 pin 18 (SA2), verify a squarewave with a time period of
msec ±0.15 ms.
Press the
End
softkey, then press
Next
until
MONITOR TEST -
11
appears
the display. Press
Test
and verify
"Probe error lest"
appecu-s.
4.2.24
