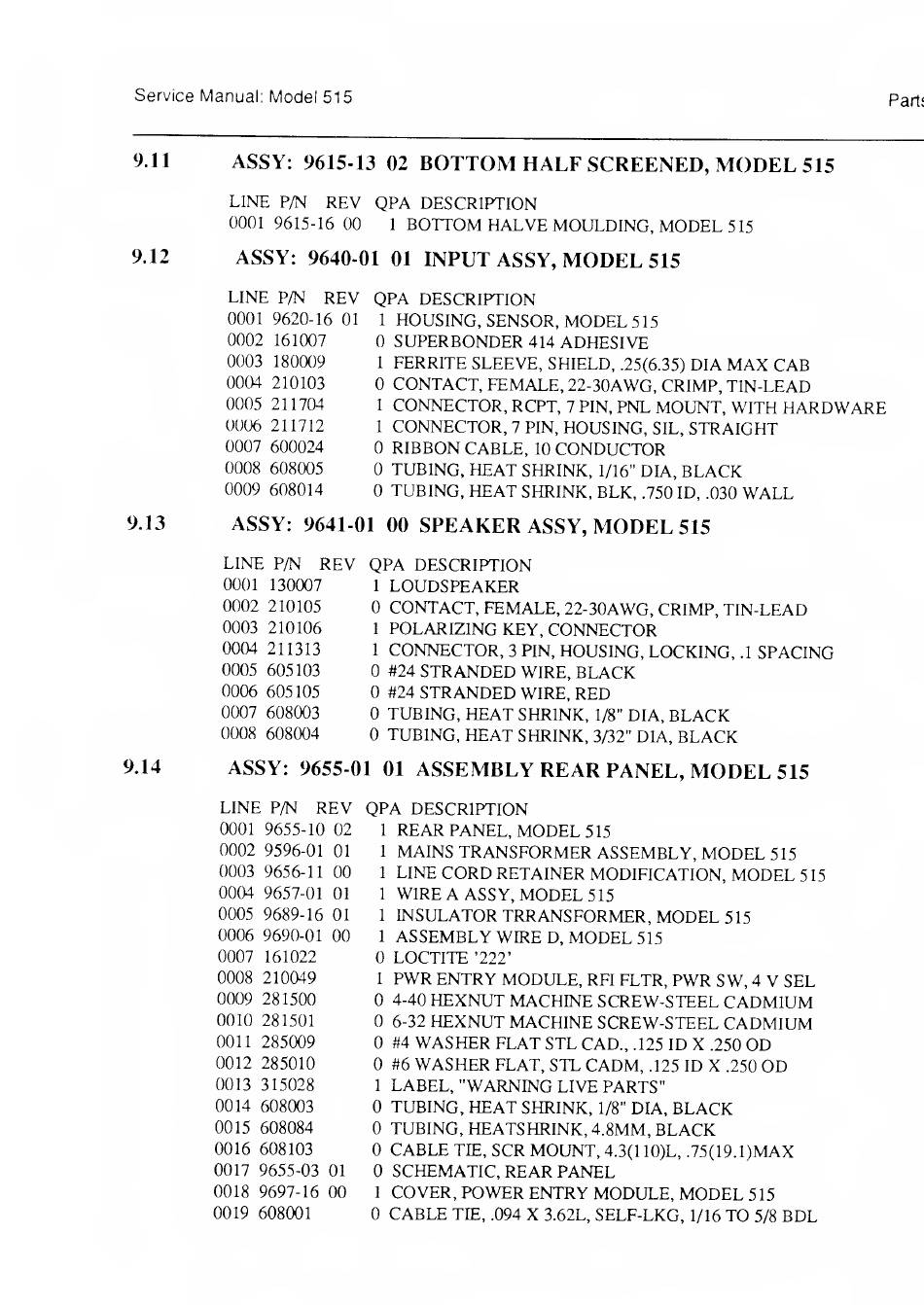

Service Manual: Model 515
9.11 ASSY: 9615-13 02 BOTTOM HALF SCREENED, MODEL 515
LINE P/N REV QPA DESCRIPTION
0001 9615-16 00 1 BOTTOM HALVE MOULDING, MODEL 515
9.12 ASSY: 9640-01 01 INPUT ASSY, MODEL 515
LINE P/N REV QPA DESCRIPTION
0001 9620-16 01 1 HOUSING, SENSOR, MODEL 515
0002 161007 0 SUPERBONDER 414 ADHESIVE
0003 180009 1 FERRITE SLEEVE, SHIELD, .25(6.35) DIA MAX CAB
0004 210103 0 CONTACT, FEMALE, 22-30AWG, CRIMP, TIN-LEAD
0005 211704 1 CONNECTOR, RCPT, 7 PIN, PNL MOUNT, WITH HARDWARE
0006 211712 1 CONNECTOR, 7 PIN, HOUSING, SIL, STRAIGHT
0007 600024 0 RIBBON CABLE, 10 CONDUCTOR
0008 608005 0 TUBING, HEAT SHRINK, 1/16" DIA, BLACK
0009 608014 0 TUBING, HEAT SHRINK, BLK, .750 ID, .030 WALL
9.13 ASSY: 9641-01 00 SPEAKER ASSY, MODEL 515
LINE P/N REV QPA DESCRIPTION
0001 130007 1 LOUDSPEAKER
0002 210105 0 CONTACT, FEMALE, 22-30AWG, CRIMP, TIN-LEAD
0003 210106 1 POLARIZING KEY, CONNECTOR
0004 211313 1 CONNECTOR, 3 PIN, HOUSING, LOCKING, .1 SPACING
0005 605103 0 #24 STRANDED WIRE, BLACK
0006 605105 0 #24 STRANDED WIRE, RED
0007 608003 0 TUBING, HEAT SHRINK, 1/8" DIA, BLACK
0008 608004 0 TUBING, HEAT SHRINK, 3/32" DIA, BLACK
9.14 ASSY: 9655-01 01 ASSEMBLY REAR PANEL, MODEL 515
LINE P/N REV QPA DESCRIPTIQN
0001 9655-10 02 1 REAR PANEL, MODEL 515
0002 9596-01 01 1 MAINS TRANSFORMER ASSEMBLY, MODEL 515
0003 9656-11 00 1 LINE CORD RETAINER MODIFICATION, MODEL 515
0004 9657-01 01 1 WIRE A ASSY, MODEL 515
0005 9689-16 01 1 INSULATOR TRRANSFORMER, MODEL 515
0006 9690-01 00 1 ASSEMBLY WIRE D, MODEL 515
0007 161022 0 LOCTITE '222'
0008 210049 1 PWR ENTRY MODULE, RFI FLTR, PWR SW, 4 V SEL
0009 281500 0 4-40 HEXNUT MACHINE SCREW-STEEL CADMIUM
0010 281501 0 6-32 HEXNUT MACHINE SCREW-STEEL CADMIUM
0011 285009 0 #4 WASHER FLAT STL CAD., .125 ID X .250 OD
0012 285010 0 #6 WASHER FLAT, STL CADM, .125 ID X .250 OD
0013 315028 1 LABEL, "WARNING LIVE PARTS"
0014 608003 0 TUBING, HEAT SHRINK, 1/8" DIA, BLACK
0015 608084 0 TUBING, HEATSHRINK, 4.8MM, BLACK
0016 608103 0 CABLE TIE, SCR MOUNT, 4.3(110)L, .75(19.1)MAX
0017 9655-03 01 0 SCHEMATIC, REAR PANEL
0018 9697-16 00 1 COVER, PO'WER ENTRY MODULE, MODEL 515
0019 608001 0 CABLE TIE, .094 X 3.62L, SELF-LKG, 1/16 TO 5/8 BDL
