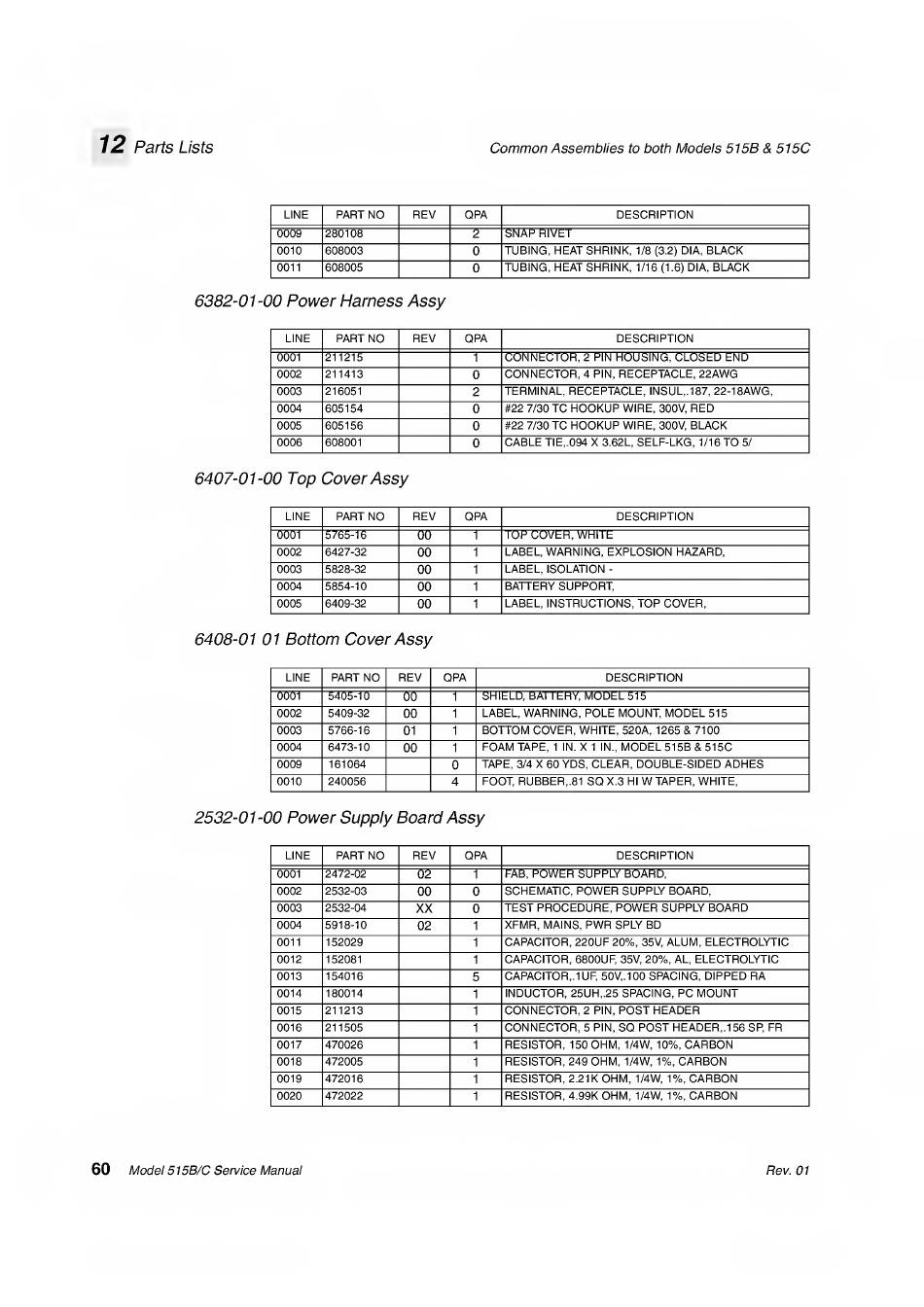

12
Parts Lists
Common Assemblies to both Models 515B & 515C
LINE PART NO REV QPA DESCRIPTION
0009 280108
2
SNAP RIVET
0010 608003 0 TUBING, HEAT SHRINK, 1/8 (3.2) DIA, BLACK
0011 608005 0 TUBING, HEAT SHRINK, 1/16 (1.6) DIA, BLACK
6382-01-00 Power Harness Assy
LINE PART NO REV CPA DESCRIPTION
0001 211215
1 CONNECTOR, 2 PIN HOUSING, CLOSED END
0002 211413 0 CONNECTOR, 4 PIN, RECEPTACLE, 22A\A/G
0003 216051
2 TERMINAL, RECEPTACLE, INSUL,.187, 22-18A\A/G,
0004 605154 0 #22 7/30 TC HOOKUP W/IRE, 300V, RED
0005 605156 0 #22 7/30 TC HOOKUP W/IRE, 300V, BLACK
0006 608001 0 CABLE TIE,.094 X 3.62L, SELF-LKG, 1/16 TO 5/
6407-01-00 Top Cover Assy
LINE PART NO REV OPA DESCRIPTION
0001 5765-16
00
1
TOP COVER, WHITE
0002 6427-32 00 1 LABEL, WARNING, EXPLOSION HAZARD,
0003 5828-32 00 1 LABEL, ISOLATION -
0004 5854-10 00
1
BATTERY SUPPORT,
0005
6409-32 00 1
LABEL, INSTRUCTIONS, TOP COVER,
6408-01 01 Bottom Cover Assy
LINE PART NO REV OPA DESCRIPTION
0001 5405-10
00 1
SHIELD, BATTERY, MODEL 515
0002
5409-32 00
1
LABEL, WARNING, POLE MOUNT, MODEL 515
0003 5766-16
01 1 BOTTOM COVER, WHITE, 520A, 1265 & 7100
0004
6473-10 00 1
FOAM TAPE, 1 IN. X 1 IN., MODEL 515B & 515C
0009 161064
0
TAPE, 3/4 X 60 YDS, CLEAR, DOUBLE-SIDED ADHES
0010
240056
4
FOOT, RUBBER,.81 SO X.3 HI W TAPER, WHITE,
2532-01-00 Power Supply Board Assy
LINE PART NO REV OPA DESCRIPTION
0001 2472-02
02 1 FAB, POWER SUPPLY BOARD,
0002
2532-03
00 0 SCHEMATIC, POWER SUPPLY BOARD,
0003 2532-04 XX 0 TEST PROCEDURE, POWER SUPPLY BOARD
0004
5918-10
02 1 XFMR, MAINS, PWR SPLY BD
0011 152029 1 CAPACITOR, 220UF 20%, 35V, ALUM, ELECTROLYTIC
0012
152081
1
CAPACITOR, 6800UF, 35V, 20%, AL, ELECTROLYTIC
0013 154016 5 CAPACITOR,.1UF, 50V,.100 SPACING, DIPPED RA
0014 180014 1
INDUCTOR, 25UH,.25 SPACING, PC MOUNT
0015 211213 1 CONNECTOR, 2 PIN, POST HEADER
0016 211505
1
CONNECTOR, 5 PIN, SO POST HEADER,.156 SP, FR
0017
470026
1
RESISTOR, 150 OHM, 1/4W, 10%, CARBON
0018 472005 1
RESISTOR, 249 OHM, 1/4W, 1%, CARBON
0019 472016 1 RESISTOR, 2.21 K OHM, 1/4W, 1%, CARBON
0020 472022
1
RESISTOR, 4.99K OHM, 1/4W, 1%, CARBON
